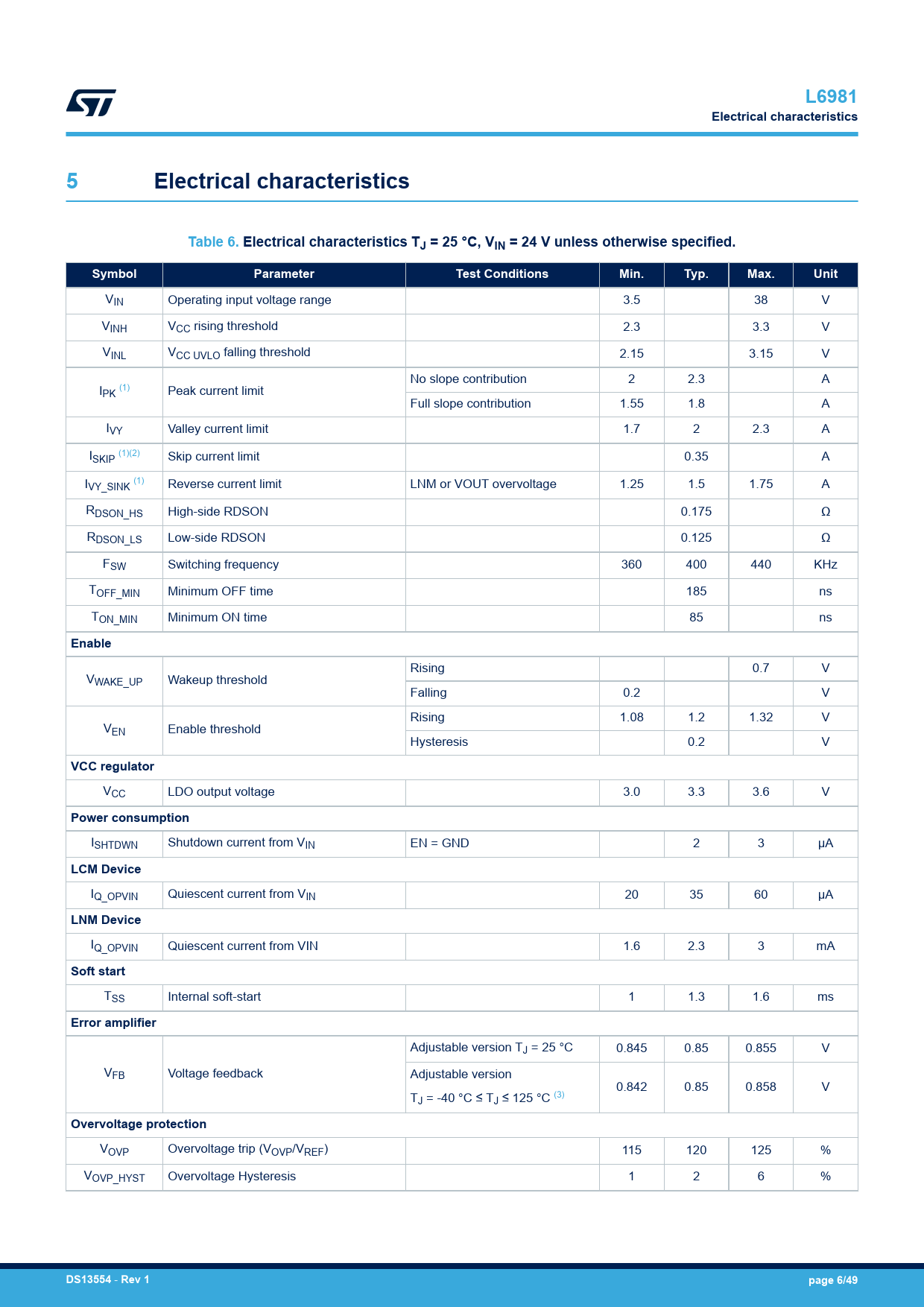

L6981. Electrical characteristics. Table 6. Electrical characteristics TJ = 25 °C, VIN = 24 V unless otherwise specified
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7 link to page 7 link to page 7 link to page 7 link to page 7
L6981 Electrical characteristics 5 Electrical characteristics Table 6. Electrical characteristics TJ = 25 °C, VIN = 24 V unless otherwise specified. Symbol Parameter Test Conditions Min. Typ. Max. Unit
VIN Operating input voltage range 3.5 38 V VINH VCC rising threshold 2.3 3.3 V VINL VCC UVLO falling threshold 2.15 3.15 V No slope contribution 2 2.3 A IPK (1) Peak current limit Full slope contribution 1.55 1.8 A IVY Valley current limit 1.7 2 2.3 A ISKIP (1)(2) Skip current limit 0.35 A IVY_SINK (1) Reverse current limit LNM or VOUT overvoltage 1.25 1.5 1.75 A RDSON_HS High-side RDSON 0.175 Ω RDSON_LS Low-side RDSON 0.125 Ω FSW Switching frequency 360 400 440 KHz TOFF_MIN Minimum OFF time 185 ns TON_MIN Minimum ON time 85 ns
Enable
Rising 0.7 V VWAKE_UP Wakeup threshold Falling 0.2 V Rising 1.08 1.2 1.32 V VEN Enable threshold Hysteresis 0.2 V
VCC regulator
VCC LDO output voltage 3.0 3.3 3.6 V
Power consumption
ISHTDWN Shutdown current from VIN EN = GND 2 3 μA
LCM Device
IQ_OPVIN Quiescent current from VIN 20 35 60 μA
LNM Device
IQ_OPVIN Quiescent current from VIN 1.6 2.3 3 mA
Soft start
TSS Internal soft-start 1 1.3 1.6 ms
Error amplifier
Adjustable version TJ = 25 °C 0.845 0.85 0.855 V VFB Voltage feedback Adjustable version 0.842 0.85 0.858 V TJ = -40 °C ≤ TJ ≤ 125 °C (3)
Overvoltage protection
VOVP Overvoltage trip (VOVP/VREF) 115 120 125 % VOVP_HYST Overvoltage Hysteresis 1 2 6 %
DS13554
-
Rev 1 page 6/49
