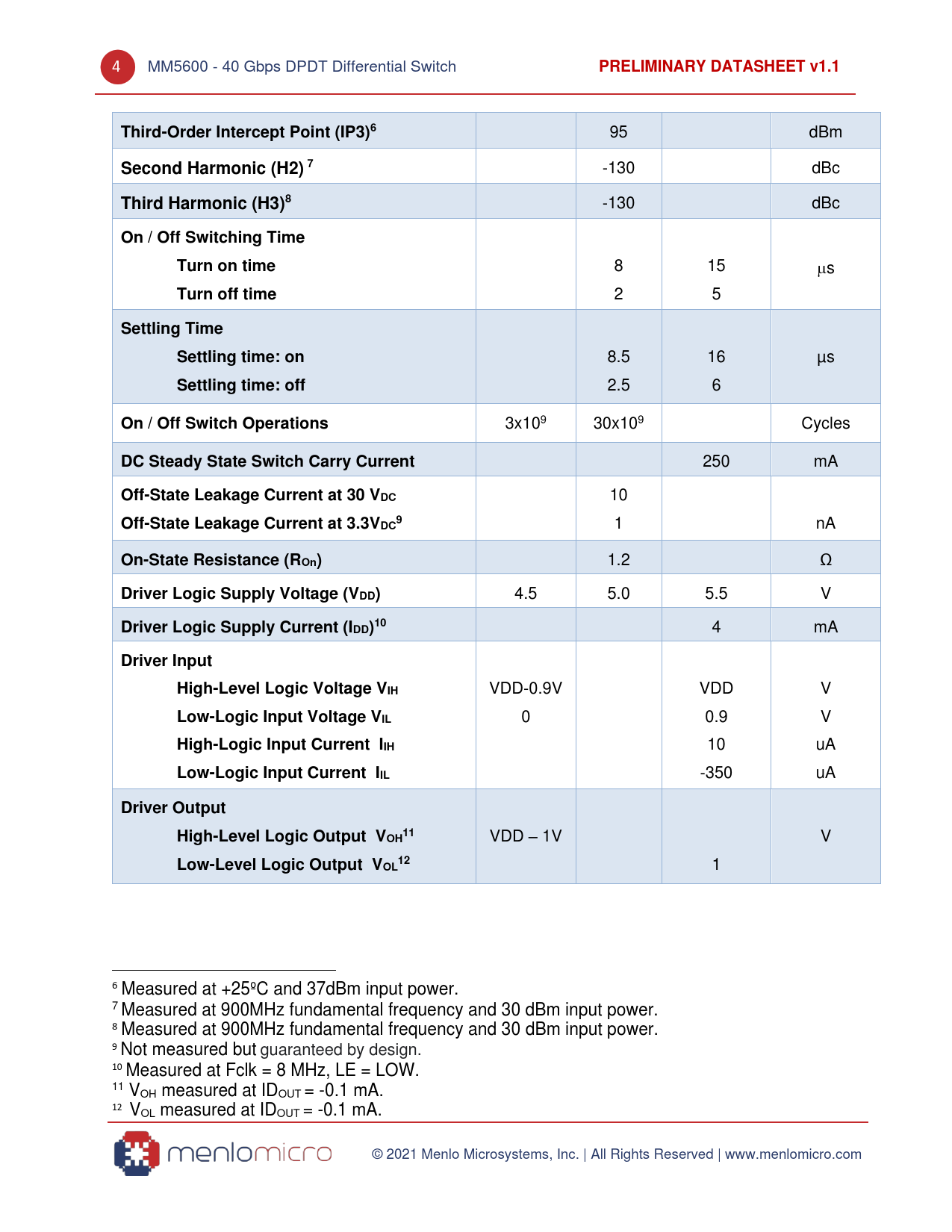

4 MM5600 - 40 Gbps DPDT Differential Switch
PRELIMINARY DATASHEET v1.1 Third-Order Intercept Point (IP3)6
95 dBm
Second Harmonic (H2) 7
-130 dBc
Third Harmonic (H3)8
-130 dBc
On / Off Switching Time Turn on time
8 15 s
Turn off time
2 5
Settling Time Settling time: on
8.5 16 µs
Settling time: off
2.5 6
On / Off Switch Operations
3x109 30x109 Cycles
DC Steady State Switch Carry Current
250 mA
Off-State Leakage Current at 30 VDC
10
Off-State Leakage Current at 3.3V 9 DC
1 nA
On-State Resistance (ROn)
1.2 Ω
Driver Logic Supply Voltage (VDD)
4.5 5.0 5.5 V
Driver Logic Supply Current (IDD)10
4 mA
Driver Input High-Level Logic Voltage VIH
VDD-0.9V VDD V
Low-Logic Input Voltage VIL
0 0.9 V
High-Logic Input Current IIH
10 uA
Low-Logic Input Current IIL
-350 uA
Driver Output High-Level Logic Output V 11 OH
VDD – 1V V
Low-Level Logic Output V 12 OL
1 6 Measured at +25ºC and 37dBm input power. 7 Measured at 900MHz fundamental frequency and 30 dBm input power. 8 Measured at 900MHz fundamental frequency and 30 dBm input power. 9 Not measured but guaranteed by design. 10 Measured at Fclk = 8 MHz, LE = LOW. 11 VOH measured at IDOUT = -0.1 mA. 12 VOL measured at IDOUT = -0.1 mA. © 2021 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
