Datasheet MM5600 (Menlo Micro) - 3
| Fabricante | Menlo Micro |
| Descripción | 40Gbps DPDT Differential Switchwith Integrated Driver |
| Páginas / Página | 17 / 3 — PRELIMINARY DATASHEET v1.1. ESD Rating HBM Driver Pins3. ESD Rating HBM … |
| Formato / tamaño de archivo | PDF / 753 Kb |
| Idioma del documento | Inglés |
PRELIMINARY DATASHEET v1.1. ESD Rating HBM Driver Pins3. ESD Rating HBM RF I/O Pins4. Mechanical Shock. Vibration. Table 2
Línea de modelo para esta hoja de datos
Versión de texto del documento

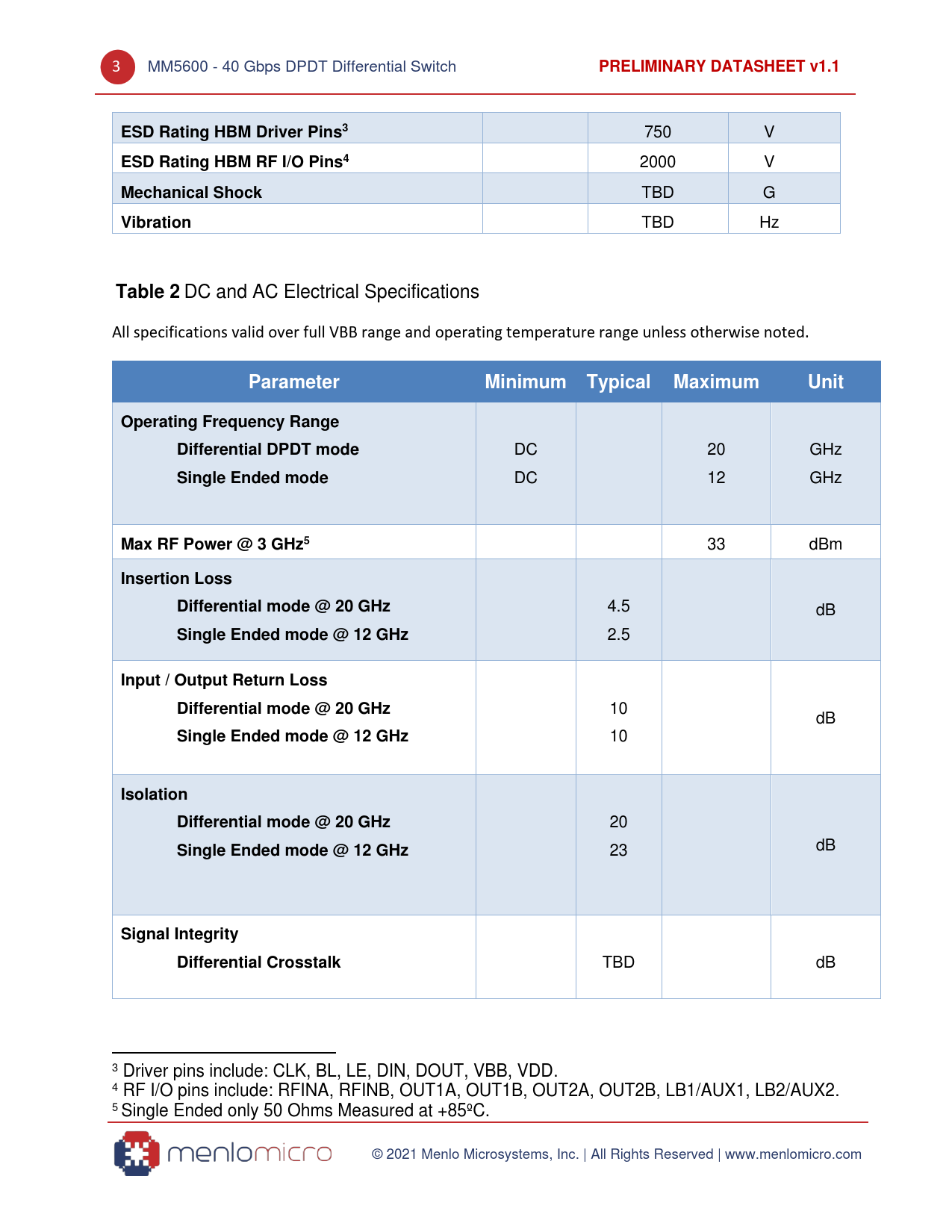

3 MM5600 - 40 Gbps DPDT Differential Switch
PRELIMINARY DATASHEET v1.1 ESD Rating HBM Driver Pins3
750 V
ESD Rating HBM RF I/O Pins4
2000 V
Mechanical Shock
TBD G
Vibration
TBD Hz
Table 2
DC and AC Electrical Specifications All specifications valid over full VBB range and operating temperature range unless otherwise noted.
Parameter Minimum Typical Maximum Unit Operating Frequency Range Differential DPDT mode
DC 20 GHz
Single Ended mode
DC 12 GHz
Max RF Power @ 3 GHz5
33 dBm
Insertion Loss Differential mode @ 20 GHz
4.5 dB
Single Ended mode @ 12 GHz
2.5
Input / Output Return Loss Differential mode @ 20 GHz
10 dB
Single Ended mode @ 12 GHz
10
Isolation Differential mode @ 20 GHz
20
Single Ended mode @ 12 GHz
23 dB
Signal Integrity Differential Crosstalk
TBD dB 3 Driver pins include: CLK, BL, LE, DIN, DOUT, VBB, VDD. 4 RF I/O pins include: RFINA, RFINB, OUT1A, OUT1B, OUT2A, OUT2B, LB1/AUX1, LB2/AUX2. 5 Single Ended only 50 Ohms Measured at +85ºC. © 2021 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
