Datasheet AD8319 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | 1 MHz to 10 GHz, 45 dB Log Detector/Controller |
| Páginas / Página | 19 / 7 — Data Sheet. AD8319. TYPICAL PERFORMANCE CHARACTERISTICS. 2.00. 2.0. 1.75. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |
Data Sheet. AD8319. TYPICAL PERFORMANCE CHARACTERISTICS. 2.00. 2.0. 1.75. 1.5. 1.50. 1.0. 1.25. 0.5. (V). R (. 1.00. RRO. 0.75. –0.5. 0.50. –1.0. 0.25. –1.5
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet AD8319 TYPICAL PERFORMANCE CHARACTERISTICS

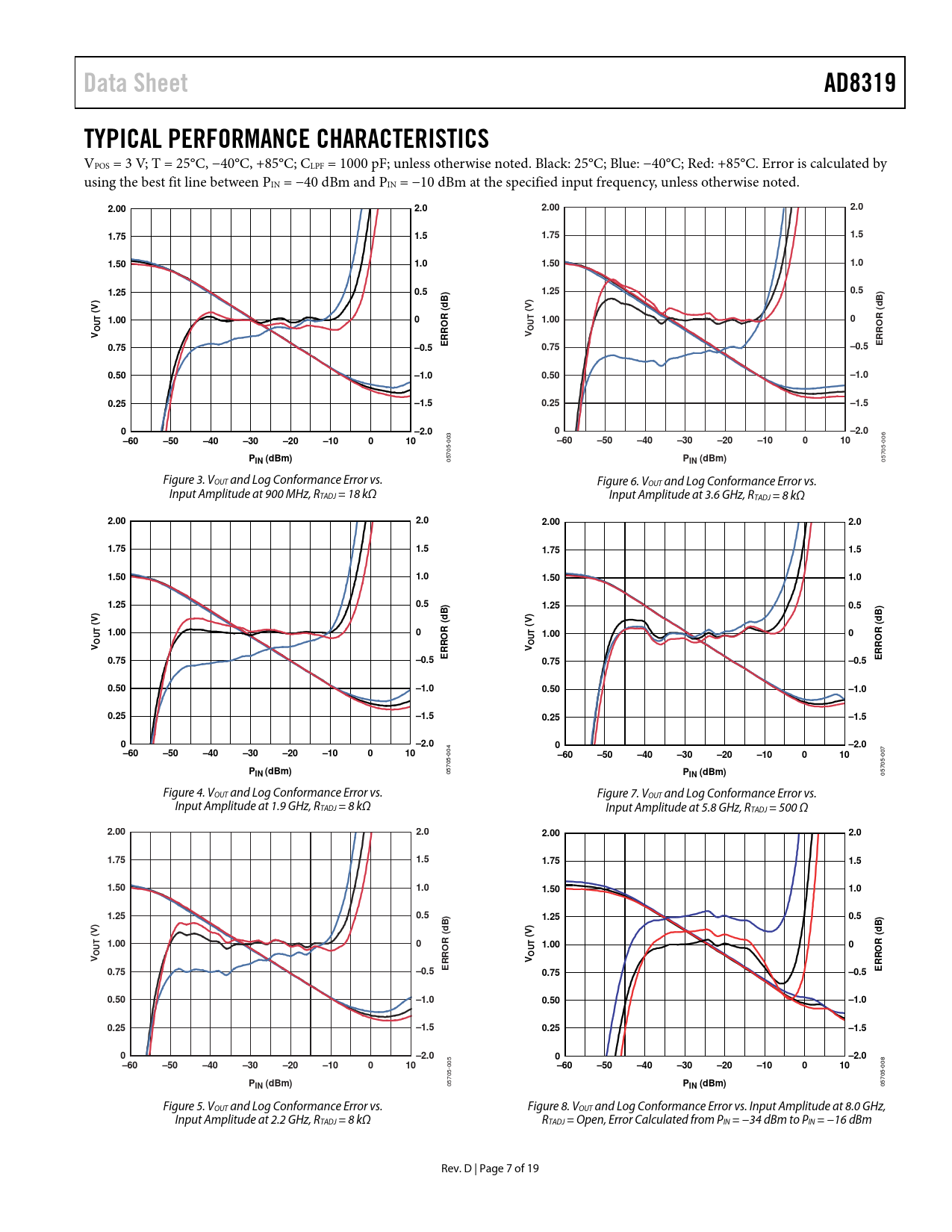

VPOS = 3 V; T = 25°C, −40°C, +85°C; CLPF = 1000 pF; unless otherwise noted. Black: 25°C; Blue: −40°C; Red: +85°C. Error is calculated by using the best fit line between PIN = −40 dBm and PIN = −10 dBm at the specified input frequency, unless otherwise noted.
