Datasheet AD8319 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 1 MHz to 10 GHz, 45 dB Log Detector/Controller |
| Páginas / Página | 19 / 5 — Data Sheet. AD8319. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |

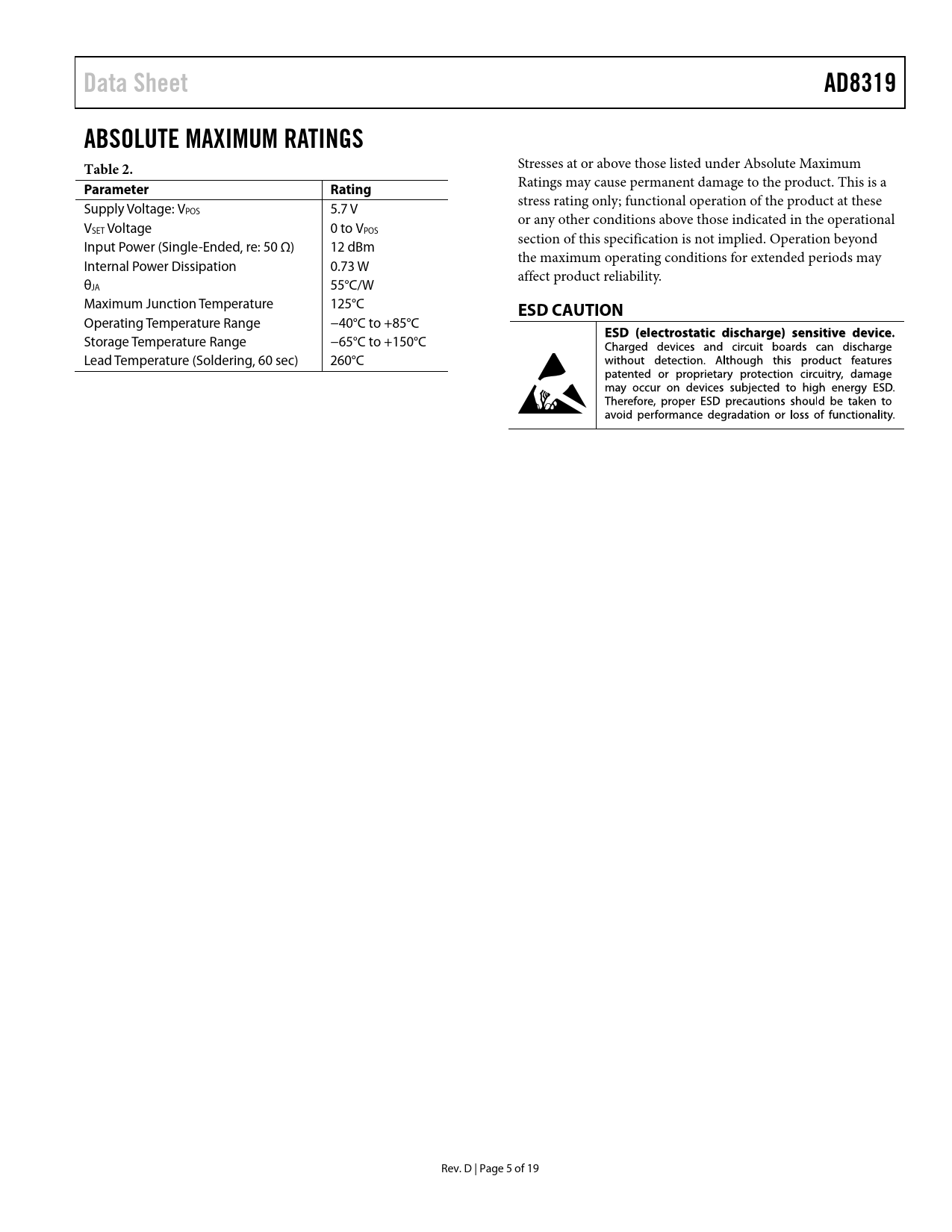

Data Sheet. AD8319. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet AD8319 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage: V stress rating only; functional operation of the product at these POS 5.7 V or any other conditions above those indicated in the operational VSET Voltage 0 to VPOS section of this specification is not implied. Operation beyond Input Power (Single-Ended, re: 50 Ω) 12 dBm the maximum operating conditions for extended periods may Internal Power Dissipation 0.73 W affect product reliability. θJA 55°C/W Maximum Junction Temperature 125°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 260°C Rev. D | Page 5 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION USING THE AD8319 BASIC CONNECTIONS INPUT SIGNAL COUPLING OUTPUT INTERFACE SETPOINT INTERFACE TEMPERATURE COMPENSATION OF OUTPUT VOLTAGE MEASUREMENT MODE SETTING THE OUTPUT SLOPE IN MEASUREMENT MODE CONTROLLER MODE OUTPUT FILTERING OPERATION BEYOND 8 GHz EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
