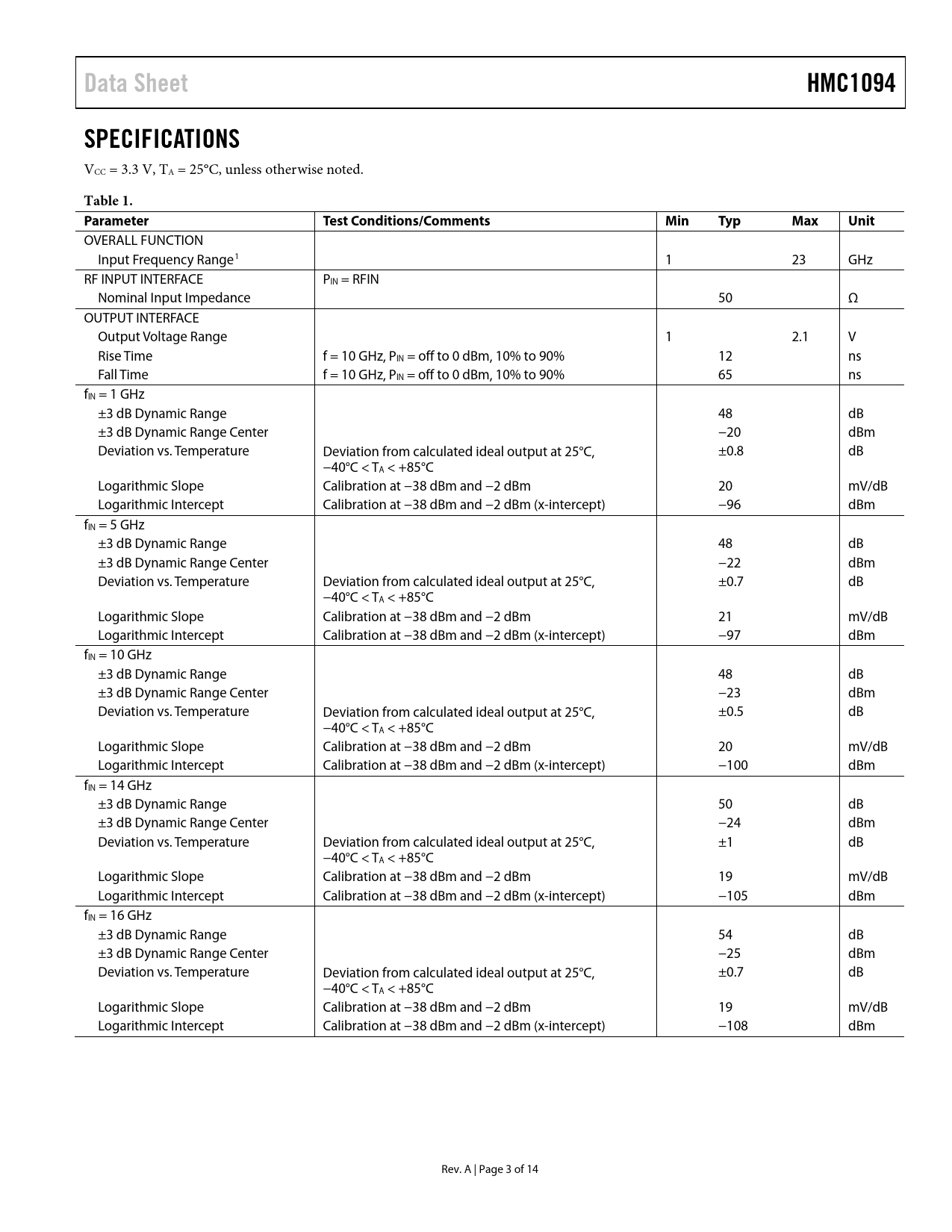

Data Sheet HMC1094 SPECIFICATIONS
VCC = 3.3 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Input Frequency Range1 1 23 GHz RF INPUT INTERFACE PIN = RFIN Nominal Input Impedance 50 Ω OUTPUT INTERFACE Output Voltage Range 1 2.1 V Rise Time f = 10 GHz, PIN = off to 0 dBm, 10% to 90% 12 ns Fall Time f = 10 GHz, PIN = off to 0 dBm, 10% to 90% 65 ns fIN = 1 GHz ±3 dB Dynamic Range 48 dB ±3 dB Dynamic Range Center −20 dBm Deviation vs. Temperature Deviation from calculated ideal output at 25°C, ±0.8 dB −40°C < TA < +85°C Logarithmic Slope Calibration at −38 dBm and −2 dBm 20 mV/dB Logarithmic Intercept Calibration at −38 dBm and −2 dBm (x-intercept) −96 dBm fIN = 5 GHz ±3 dB Dynamic Range 48 dB ±3 dB Dynamic Range Center −22 dBm Deviation vs. Temperature Deviation from calculated ideal output at 25°C, ±0.7 dB −40°C < TA < +85°C Logarithmic Slope Calibration at −38 dBm and −2 dBm 21 mV/dB Logarithmic Intercept Calibration at −38 dBm and −2 dBm (x-intercept) −97 dBm fIN = 10 GHz ±3 dB Dynamic Range 48 dB ±3 dB Dynamic Range Center −23 dBm Deviation vs. Temperature Deviation from calculated ideal output at 25°C, ±0.5 dB −40°C < TA < +85°C Logarithmic Slope Calibration at −38 dBm and −2 dBm 20 mV/dB Logarithmic Intercept Calibration at −38 dBm and −2 dBm (x-intercept) −100 dBm fIN = 14 GHz ±3 dB Dynamic Range 50 dB ±3 dB Dynamic Range Center −24 dBm Deviation vs. Temperature Deviation from calculated ideal output at 25°C, ±1 dB −40°C < TA < +85°C Logarithmic Slope Calibration at −38 dBm and −2 dBm 19 mV/dB Logarithmic Intercept Calibration at −38 dBm and −2 dBm (x-intercept) −105 dBm fIN = 16 GHz ±3 dB Dynamic Range 54 dB ±3 dB Dynamic Range Center −25 dBm Deviation vs. Temperature Deviation from calculated ideal output at 25°C, ±0.7 dB −40°C < TA < +85°C Logarithmic Slope Calibration at −38 dBm and −2 dBm 19 mV/dB Logarithmic Intercept Calibration at −38 dBm and −2 dBm (x-intercept) −108 dBm Rev. A | Page 3 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION AND EVALUATION PRINTED CIRCUIT BOARD (PCB) SCHEMATIC EVALUATION PCB BILL OF MATERIALS FOR EVALUATION PCB PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
