Datasheet HMC1094 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 50 dB, Logarithmic Detector, 1 GHz to 23 GHz |
| Páginas / Página | 14 / 5 — Data Sheet. HMC1094. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. … |
| Formato / tamaño de archivo | PDF / 569 Kb |
| Idioma del documento | Inglés |
Data Sheet. HMC1094. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

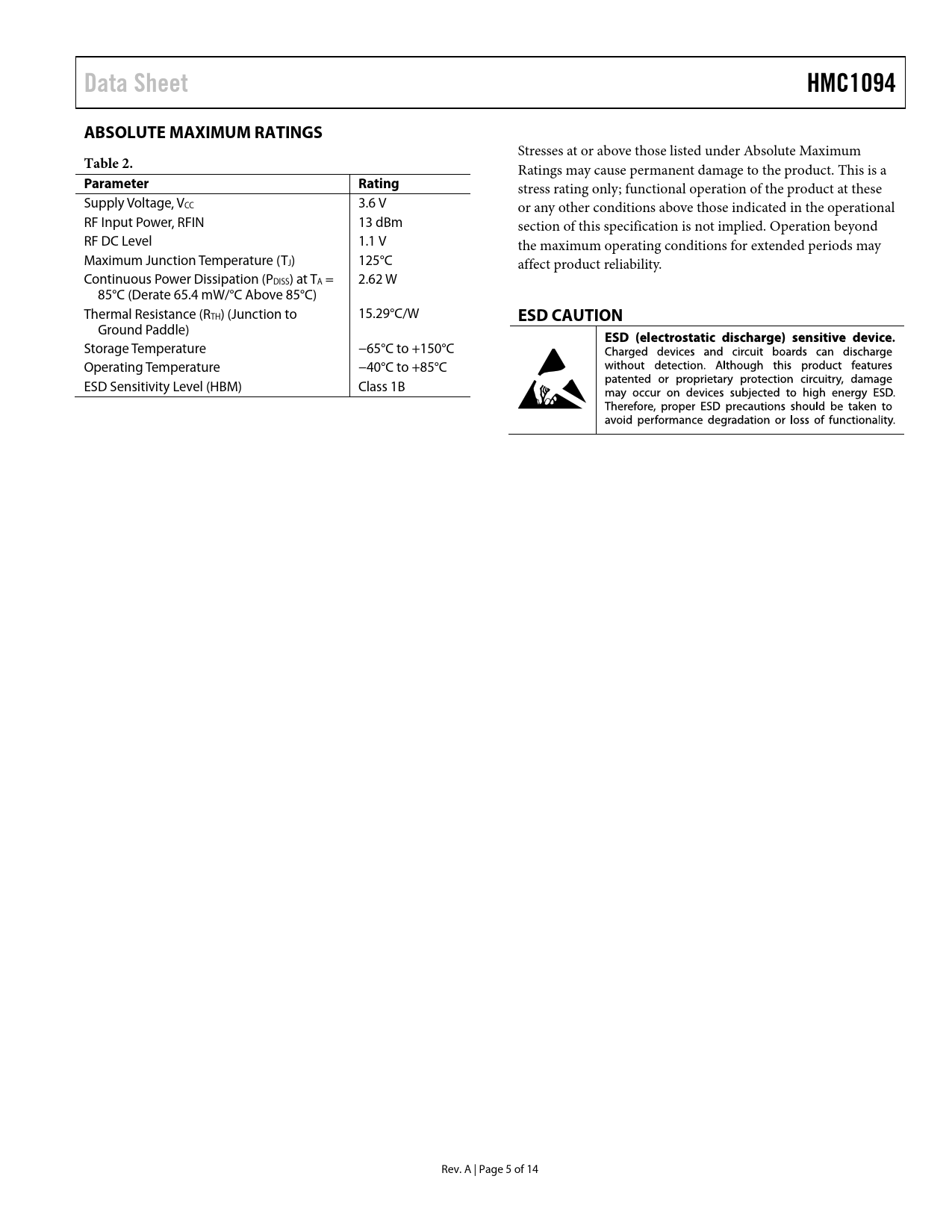

Data Sheet HMC1094 ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 2.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage, VCC 3.6 V or any other conditions above those indicated in the operational RF Input Power, RFIN 13 dBm section of this specification is not implied. Operation beyond RF DC Level 1.1 V the maximum operating conditions for extended periods may Maximum Junction Temperature (TJ) 125°C affect product reliability. Continuous Power Dissipation (PDISS) at TA = 2.62 W 85°C (Derate 65.4 mW/°C Above 85°C) Thermal Resistance (RTH) (Junction to 15.29°C/W
ESD CAUTION
Ground Paddle) Storage Temperature −65°C to +150°C Operating Temperature −40°C to +85°C ESD Sensitivity Level (HBM) Class 1B Rev. A | Page 5 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION AND EVALUATION PRINTED CIRCUIT BOARD (PCB) SCHEMATIC EVALUATION PCB BILL OF MATERIALS FOR EVALUATION PCB PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
