HMC461LP3 / 461LP3E. InGaP HBT 1 Watt High IP3. AMPLIFIER, 1.7 - 2.2 GHz. Outline Drawing. Package Information. 11 - 254
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC461LP3 / 461LP3E
v02.0705

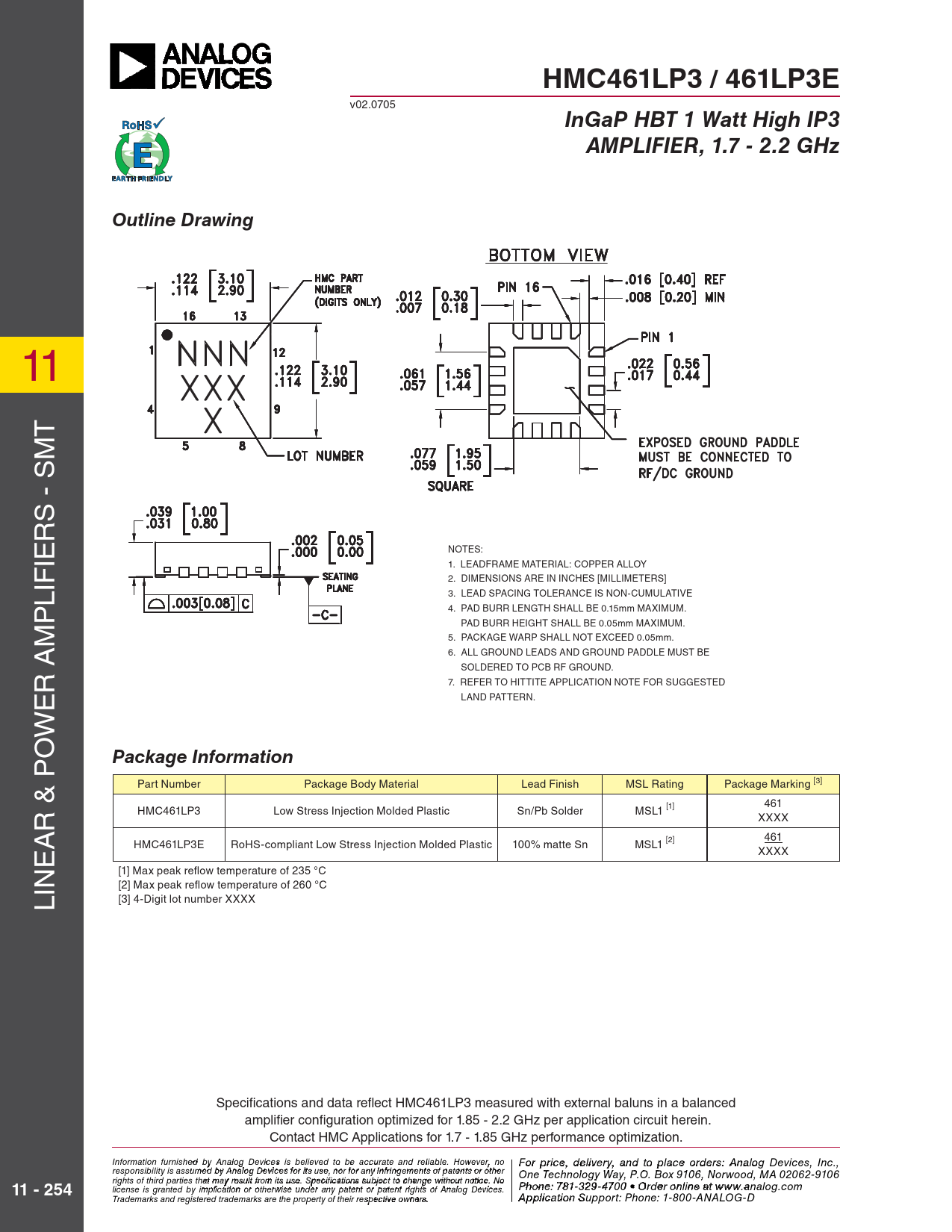

InGaP HBT 1 Watt High IP3 AMPLIFIER, 1.7 - 2.2 GHz Outline Drawing
11 T - SM S R IE NOTES: 1. LEADFRAME MATERIAL: COPPER ALLOY IF 2. DIMENSIONS ARE IN INCHES [MILLIMETERS] L 3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE P 4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM. PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM. M 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm. 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND. R A 7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED E LAND PATTERN. W O
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [3] & P [1] 461 HMC461LP3 Low Stress Injection Molded Plastic Sn/Pb Solder MSL1 R XXXX A [2] 461 HMC461LP3E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 E XXXX [1] Max peak refl ow temperature of 235 °C IN [2] Max peak refl ow temperature of 260 °C L [3] 4-Digit lot number XXXX Specifi cations and data refl ect HMC461LP3 measured with external baluns in a balanced amplifi er confi guration optimized for 1.85 - 2.2 GHz per application circuit herein. Contact HMC Applications for 1.7 - 1.85 GHz performance optimization. Information furnish F e o d r pri by An ce, de alog Devic leis vie s rby eli, a eve nd to pla d to be accur ce o ate an r d der relia s ble , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone rights of third parties that may result from its use. Specifications subject to change without notice. No : 978 Phon -e25 : 7 0 81 - - 3 3 3 29 4 - 3 F 470 ax 0 • O : 978 rder o - nl 25 in 0 e a - t 33 ww 73
11 - 254
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On- Trademarks and registered trademarks are the property of their respective owners. line at www.hi A tptipte.co licatio m n Support: Phone: 1-800-ANALOG-D
