Datasheet ADPA7002 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | GaAs, pHEMT, MMIC, 1/2 W, 18 GHz to 44 GHz, Power Amplifier |
| Páginas / Página | 21 / 4 — ADPA7002. Data Sheet. 24 GHz TO 34 GHz FREQUENCY RANGE. Table 3. … |
| Formato / tamaño de archivo | PDF / 505 Kb |
| Idioma del documento | Inglés |

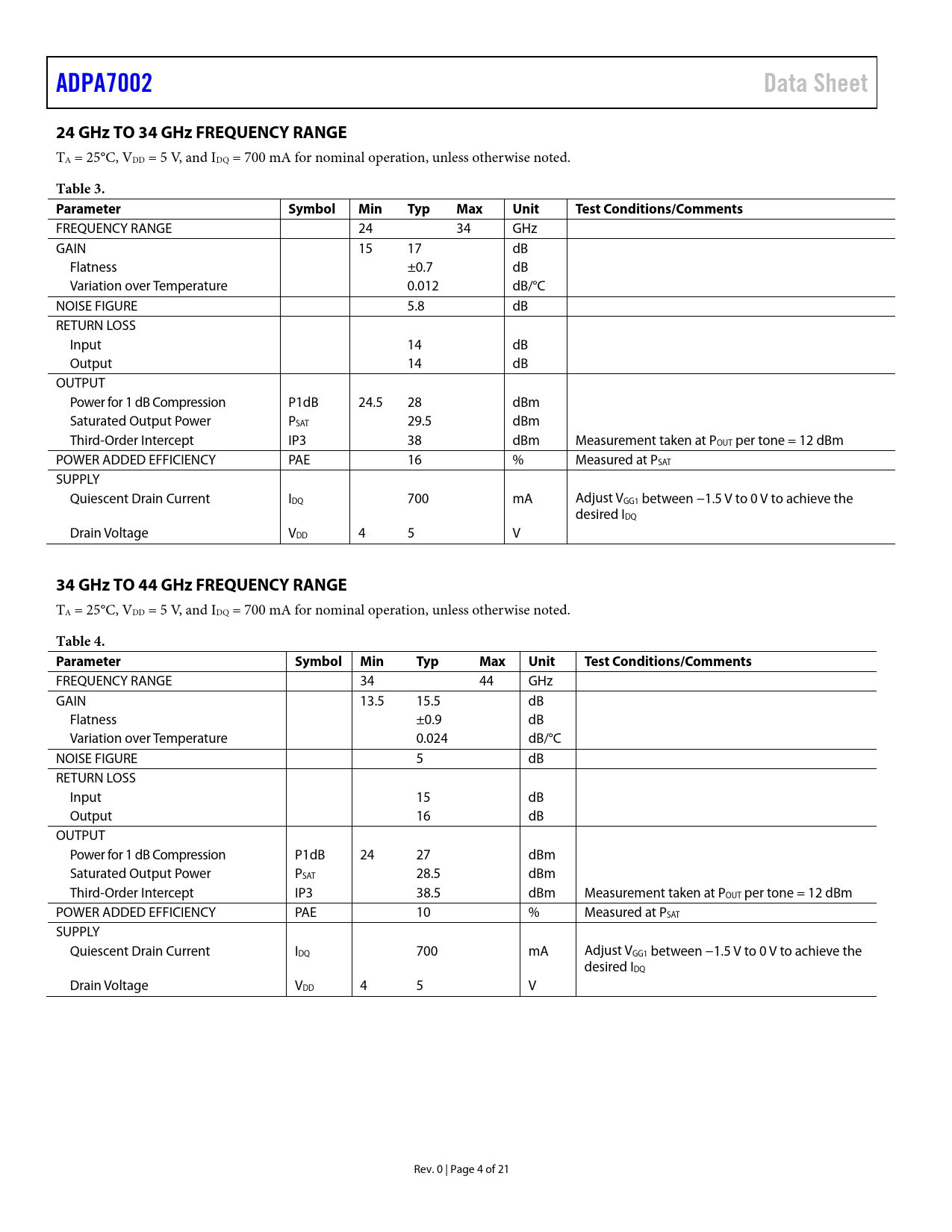

ADPA7002. Data Sheet. 24 GHz TO 34 GHz FREQUENCY RANGE. Table 3. Parameter. Symbol. Min. Typ. Max. Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADPA7002 Data Sheet 24 GHz TO 34 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, and IDQ = 700 mA for nominal operation, unless otherwise noted.
Table 3. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 24 34 GHz GAIN 15 17 dB Flatness ±0.7 dB Variation over Temperature 0.012 dB/°C NOISE FIGURE 5.8 dB RETURN LOSS Input 14 dB Output 14 dB OUTPUT Power for 1 dB Compression P1dB 24.5 28 dBm Saturated Output Power PSAT 29.5 dBm Third-Order Intercept IP3 38 dBm Measurement taken at POUT per tone = 12 dBm POWER ADDED EFFICIENCY PAE 16 % Measured at PSAT SUPPLY Quiescent Drain Current IDQ 700 mA Adjust VGG1 between −1.5 V to 0 V to achieve the desired IDQ Drain Voltage VDD 4 5 V
34 GHz TO 44 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, and IDQ = 700 mA for nominal operation, unless otherwise noted.
Table 4. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 34 44 GHz GAIN 13.5 15.5 dB Flatness ±0.9 dB Variation over Temperature 0.024 dB/°C NOISE FIGURE 5 dB RETURN LOSS Input 15 dB Output 16 dB OUTPUT Power for 1 dB Compression P1dB 24 27 dBm Saturated Output Power PSAT 28.5 dBm Third-Order Intercept IP3 38.5 dBm Measurement taken at POUT per tone = 12 dBm POWER ADDED EFFICIENCY PAE 10 % Measured at PSAT SUPPLY Quiescent Drain Current IDQ 700 mA Adjust VGG1 between −1.5 V to 0 V to achieve the desired IDQ Drain Voltage VDD 4 5 V Rev. 0 | Page 4 of 21 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications 18 GHz to 20 GHz Frequency Range 20 GHz to 24 GHz Frequency Range 24 GHz to 34 GHz Frequency Range 34 GHz to 44 GHz Frequency Range Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Constant IDD Operation Theory of Operation Applications Information Biasing Procedures Biasing the ADPA7002 with the HMC980LP4E Application Circuit Setup Limiting VGATE to Meet the ADPA7002 VGG1 AMR Requirement HMC980LP4E Bias Sequence Constant Drain Current Biasing vs. Constant Gate Voltage Biasing Testing the HMC980LP4E Outline Dimensions Ordering Guide
