Datasheet ADPA7002 (Analog Devices)

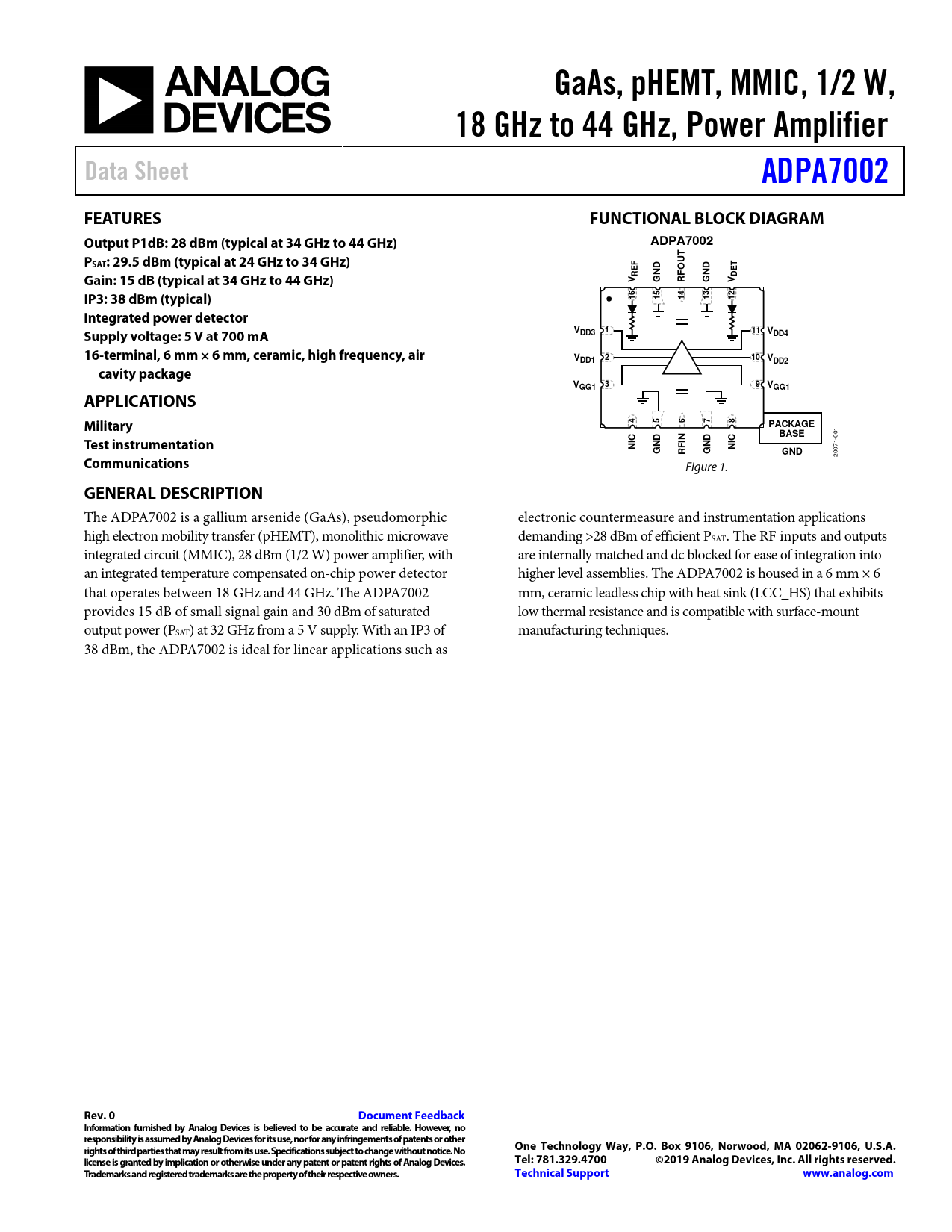

GaAs, pHEMT, MMIC, 1/2 W, 18 GHz to 44 GHz, Power Amplifier Data Sheet ADPA7002 FEATURES FUNCTIONAL BLOCK DIAGRAM Output P1dB: 28 dBm (typical at 34 GHz to 44 GHz) ADPA7002 PSAT: 29.5 dBm (typical at 24 GHz to 34 GHz) UT F T O RE ND ND Gain: 15 dB (typical at 34 GHz to 44 GHz) DE V G RF G V IP3: 38 dBm (typical) 16 15 14 13 12 Integrated power detector Supply voltage: 5 V at 700 mA V 1 DD3 11 VDD4 16-terminal, 6 mm × 6 mm, ceramic, high frequency, air V 2 DD1 10 VDD2 cavity package V 3 GG1 9 VGG1 APPLICATIONS Military 4 5 6 7 8 PACKAGE BASE
001
Test instrumentation C C NI ND FIN ND NI G R G GND
20071-
Communications
Figure 1.
GENERAL DESCRIPTION
The ADPA7002 is a gallium arsenide (GaAs), pseudomorphic electronic countermeasure and instrumentation applications high electron mobility transfer (pHEMT), monolithic microwave demanding >28 dBm of efficient PSAT. The RF inputs and outputs integrated circuit (MMIC), 28 dBm (1/2 W) power amplifier, with are internal y matched and dc blocked for ease of integration into an integrated temperature compensated on-chip power detector higher level assemblies. The ADPA7002 is housed in a 6 mm × 6 that operates between 18 GHz and 44 GHz. The ADPA7002 mm, ceramic leadless chip with heat sink (LCC_HS) that exhibits provides 15 dB of small signal gain and 30 dBm of saturated low thermal resistance and is compatible with surface-mount output power (PSAT) at 32 GHz from a 5 V supply. With an IP3 of manufacturing techniques. 38 dBm, the ADPA7002 is ideal for linear applications such as
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications 18 GHz to 20 GHz Frequency Range 20 GHz to 24 GHz Frequency Range 24 GHz to 34 GHz Frequency Range 34 GHz to 44 GHz Frequency Range Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Constant IDD Operation Theory of Operation Applications Information Biasing Procedures Biasing the ADPA7002 with the HMC980LP4E Application Circuit Setup Limiting VGATE to Meet the ADPA7002 VGG1 AMR Requirement HMC980LP4E Bias Sequence Constant Drain Current Biasing vs. Constant Gate Voltage Biasing Testing the HMC980LP4E Outline Dimensions Ordering Guide
