Datasheet HMC460LC5 (Analog Devices)

HMC460LC5
v08.1217

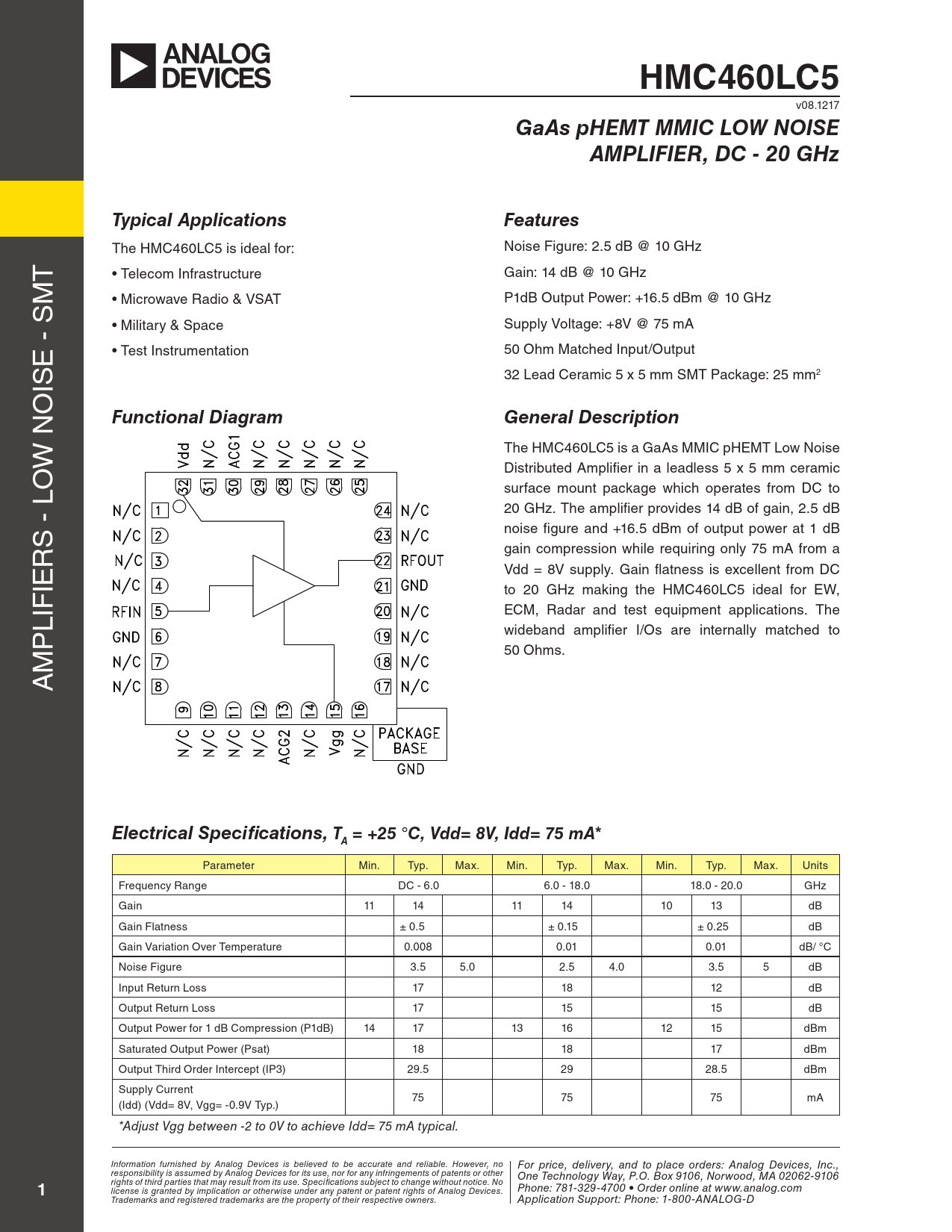

GaAs pHEMT MMIC LOW NOISE AMPLIFIER, DC - 20 GHz Typical Applications Features
The HMC460LC5 is ideal for: Noise Figure: 2.5 dB @ 10 GHz T • Telecom Infrastructure Gain: 14 dB @ 10 GHz M • Microwave Radio & VSAT P1dB Output Power: +16.5 dBm @ 10 GHz • Military & Space Supply Voltage: +8V @ 75 mA E - S • Test Instrumentation 50 Ohm Matched Input/Output IS 32 Lead Ceramic 5 x 5 mm SMT Package: 25 mm2 O
Functional Diagram General Description
W N The HMC460LC5 is a GaAs MMIC pHEMT Low Noise O Distributed Amplifier in a leadless 5 x 5 mm ceramic surface mount package which operates from DC to 20 GHz. The amplifier provides 14 dB of gain, 2.5 dB S - L noise figure and +16.5 dBm of output power at 1 dB R gain compression while requiring only 75 mA from a IE Vdd = 8V supply. Gain flatness is excel ent from DC to 20 GHz making the HMC460LC5 ideal for EW, LIF ECM, Radar and test equipment applications. The P wideband amplifier I/Os are internal y matched to M 50 Ohms. A
Electrical Specifications, T = +25 °C, Vdd= 8V, Idd= 75 mA* A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range DC - 6.0 6.0 - 18.0 18.0 - 20.0 GHz Gain 11 14 11 14 10 13 dB Gain Flatness ± 0.5 ± 0.15 ± 0.25 dB Gain Variation Over Temperature 0.008 0.01 0.01 dB/ °C Noise Figure 3.5 5.0 2.5 4.0 3.5 5 dB Input Return Loss 17 18 12 dB Output Return Loss 17 15 15 dB Output Power for 1 dB Compression (P1dB) 14 17 13 16 12 15 dBm Saturated Output Power (Psat) 18 18 17 dBm Output Third Order Intercept (IP3) 29.5 29 28.5 dBm Supply Current 75 75 75 mA (Idd) (Vdd= 8V, Vgg= -0.9V Typ.) *Adjust Vgg between -2 to 0V to achieve Idd= 75 mA typical. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
