Datasheet HMC518 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | GaAs pHEMT MMIC LOW NOISE AMPLIFIER, 20 - 32 GHz |
| Páginas / Página | 6 / 5 — HMC518. GaAs pHEMT MMIC LOW NOISE. AMPLIFIER, 20 - 32 GHz. Pad … |
| Formato / tamaño de archivo | PDF / 556 Kb |
| Idioma del documento | Inglés |

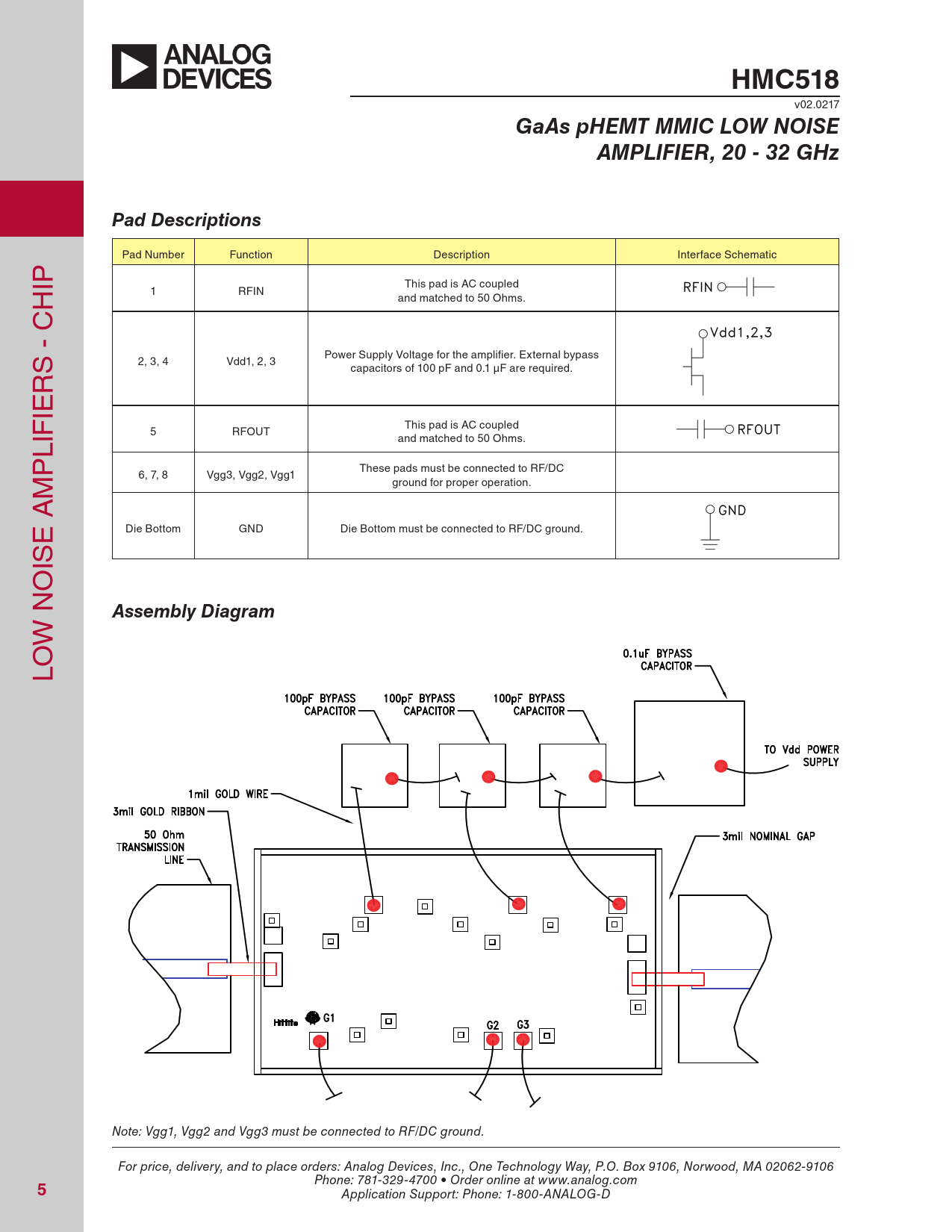

HMC518. GaAs pHEMT MMIC LOW NOISE. AMPLIFIER, 20 - 32 GHz. Pad Descriptions. Assembly Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC518
v02.0217
GaAs pHEMT MMIC LOW NOISE AMPLIFIER, 20 - 32 GHz Pad Descriptions
Pad Number Function Description Interface Schematic IP This pad is AC coupled H 1 RFIN and matched to 50 Ohms. C - S Power Supply Voltage for the amplifier. External bypass 2, 3, 4 Vdd1, 2, 3 R capacitors of 100 pF and 0.1 µF are required. IE This pad is AC coupled 5 RFOUT LIF and matched to 50 Ohms. P These pads must be connected to RF/DC M 6, 7, 8 Vgg3, Vgg2, Vgg1 ground for proper operation. A E Die Bottom GND Die Bottom must be connected to RF/DC ground. IS O N
Assembly Diagram
W LO Note: Vgg1, Vgg2 and Vgg3 must be connected to RF/DC ground. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
