Datasheet HMC518 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs pHEMT MMIC LOW NOISE AMPLIFIER, 20 - 32 GHz |
| Páginas / Página | 6 / 1 — HMC518. GaAs pHEMT MMIC LOW NOISE. AMPLIFIER, 20 - 32 GHz. Typical … |
| Formato / tamaño de archivo | PDF / 556 Kb |
| Idioma del documento | Inglés |

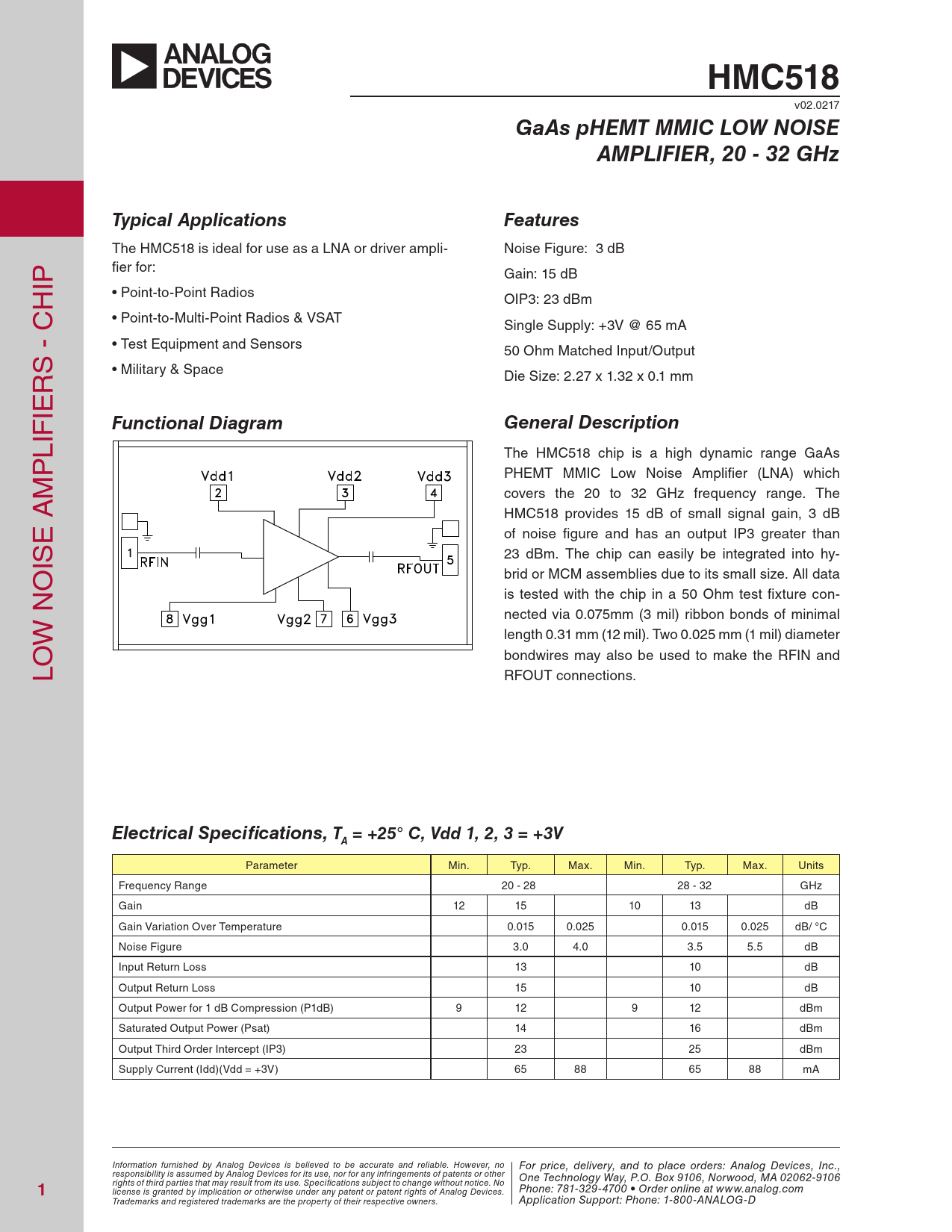

HMC518. GaAs pHEMT MMIC LOW NOISE. AMPLIFIER, 20 - 32 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC518
v02.0217
GaAs pHEMT MMIC LOW NOISE AMPLIFIER, 20 - 32 GHz Typical Applications Features
The HMC518 is ideal for use as a LNA or driver ampli- Noise Figure: 3 dB IP fier for: Gain: 15 dB H • Point-to-Point Radios OIP3: 23 dBm C • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 65 mA - • Test Equipment and Sensors S 50 Ohm Matched Input/Output R • Military & Space Die Size: 2.27 x 1.32 x 0.1 mm IE
Functional Diagram General Description
LIF P The HMC518 chip is a high dynamic range GaAs PHEMT MMIC Low Noise Amplifier (LNA) which M covers the 20 to 32 GHz frequency range. The A HMC518 provides 15 dB of small signal gain, 3 dB E of noise figure and has an output IP3 greater than IS 23 dBm. The chip can easily be integrated into hy- O brid or MCM assemblies due to its small size. All data N is tested with the chip in a 50 Ohm test fixture con- nected via 0.075mm (3 mil) ribbon bonds of minimal W length 0.31 mm (12 mil). Two 0.025 mm (1 mil) diameter bondwires may also be used to make the RFIN and LO RFOUT connections.
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 20 - 28 28 - 32 GHz Gain 12 15 10 13 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 dB/ °C Noise Figure 3.0 4.0 3.5 5.5 dB Input Return Loss 13 10 dB Output Return Loss 15 10 dB Output Power for 1 dB Compression (P1dB) 9 12 9 12 dBm Saturated Output Power (Psat) 14 16 dBm Output Third Order Intercept (IP3) 23 25 dBm Supply Current (Idd)(Vdd = +3V) 65 88 65 88 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
