Datasheet ADL8104 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Wideband, High Linearity, Low Noise Amplifier, 0.4 GHz to 7.5 GHz |
| Páginas / Página | 23 / 5 — Data Sheet. ADL8104. ABSOLUTE MAXIMUM RATINGS Table 5. ELECTROSTATIC … |
| Formato / tamaño de archivo | PDF / 625 Kb |
| Idioma del documento | Inglés |

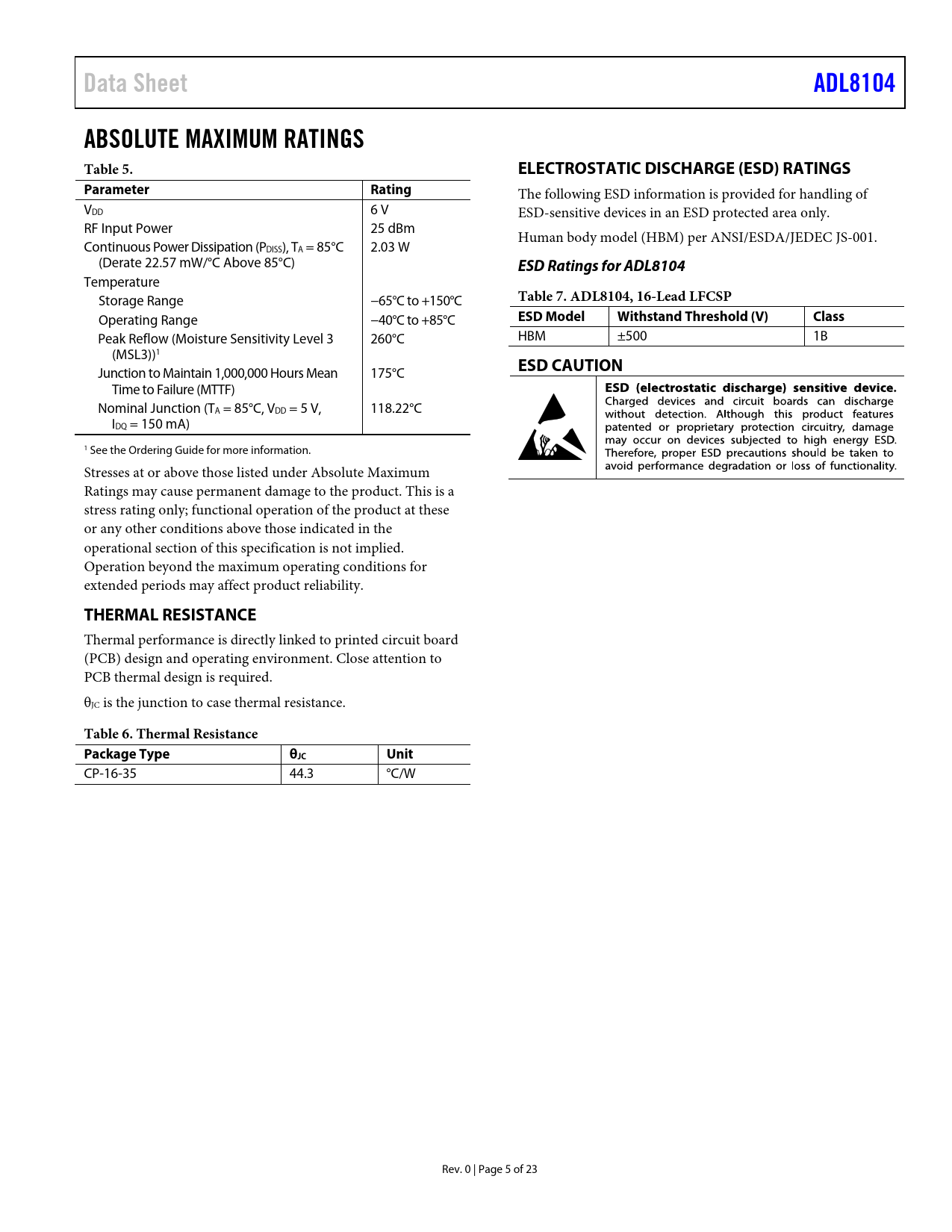

Data Sheet. ADL8104. ABSOLUTE MAXIMUM RATINGS Table 5. ELECTROSTATIC DISCHARGE (ESD) RATINGS. Parameter. Rating
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 23
Data Sheet ADL8104 ABSOLUTE MAXIMUM RATINGS Table 5. ELECTROSTATIC DISCHARGE (ESD) RATINGS Parameter Rating
The fol owing ESD information is provided for handling of VDD 6 V ESD-sensitive devices in an ESD protected area only. RF Input Power 25 dBm Human body model (HBM) per ANSI/ESDA/JEDEC JS-001. Continuous Power Dissipation (PDISS), TA = 85°C 2.03 W (Derate 22.57 mW/°C Above 85°C)
ESD Ratings for ADL8104
Temperature Storage Range −65°C to +150°C
Table 7. ADL8104, 16-Lead LFCSP
Operating Range −40°C to +85°C
ESD Model Withstand Threshold (V) Class
Peak Reflow (Moisture Sensitivity Level 3 260°C HBM ±500 1B (MSL3))1
ESD CAUTION
Junction to Maintain 1,000,000 Hours Mean 175°C Time to Failure (MTTF) Nominal Junction (TA = 85°C, VDD = 5 V, 118.22°C IDQ = 150 mA) 1 See the Ordering Guide for more information. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability.
THERMAL RESISTANCE
Thermal performance is directly linked to printed circuit board (PCB) design and operating environment. Close attention to PCB thermal design is required. θJC is the junction to case thermal resistance.
Table 6. Thermal Resistance Package Type θJC Unit
CP-16-35 44.3 °C/W Rev. 0 | Page 5 of 23 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications 0.4 GHz to 0.6 GHz Frequency Range 0.6 GHz to 6 GHz Frequency Range 6 GHz to 7.5 GHz Frequency Range DC Specifications Absolute Maximum Ratings Thermal Resistance Electrostatic Discharge (ESD) Ratings ESD Ratings for ADL8104 ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Recommended Bias Sequencing Outline Dimensions Ordering Guide
