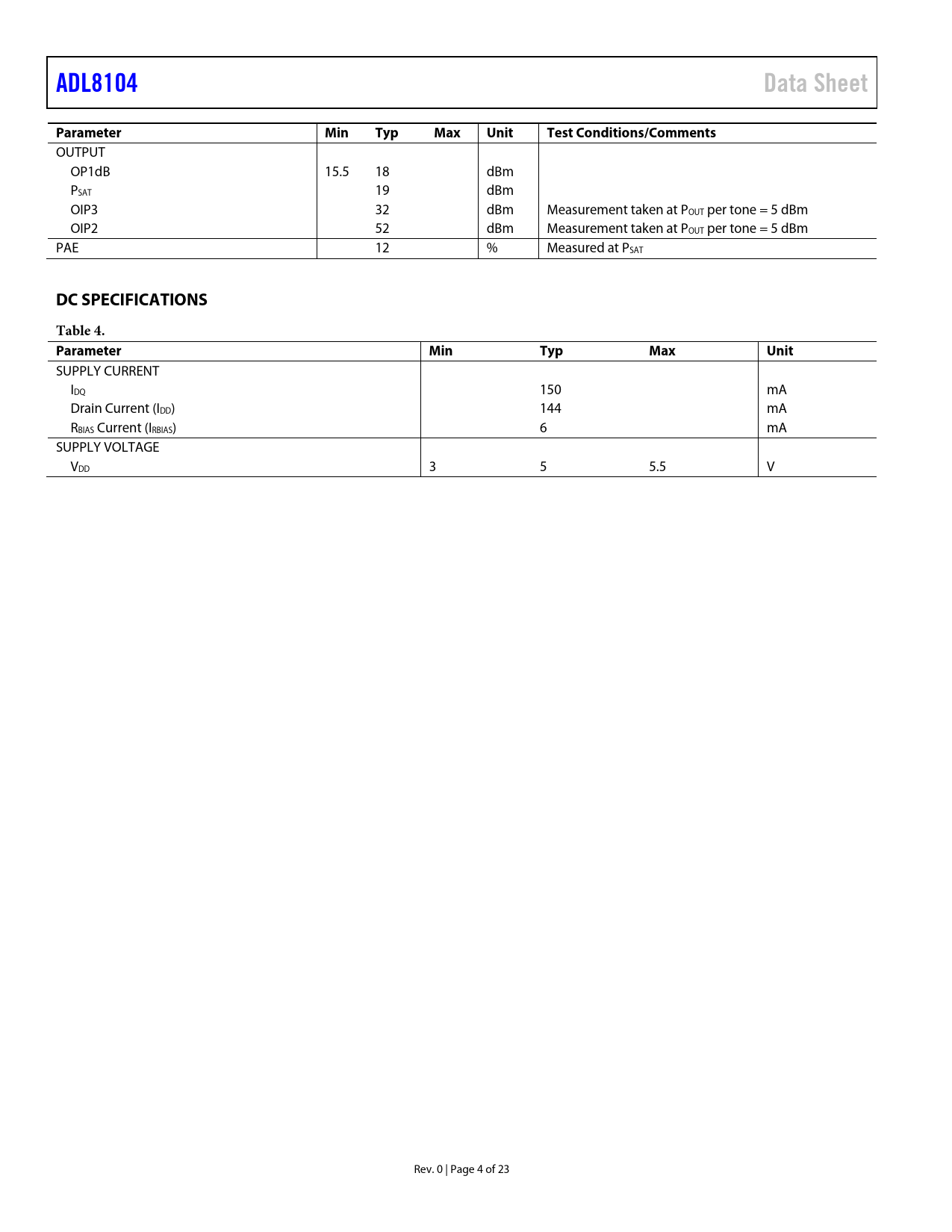

ADL8104 Data Sheet Parameter Min Typ Max Unit Test Conditions/Comments
OUTPUT OP1dB 15.5 18 dBm PSAT 19 dBm OIP3 32 dBm Measurement taken at POUT per tone = 5 dBm OIP2 52 dBm Measurement taken at POUT per tone = 5 dBm PAE 12 % Measured at PSAT
DC SPECIFICATIONS Table 4. Parameter Min Typ Max Unit
SUPPLY CURRENT IDQ 150 mA Drain Current (IDD) 144 mA RBIAS Current (IRBIAS) 6 mA SUPPLY VOLTAGE VDD 3 5 5.5 V Rev. 0 | Page 4 of 23 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications 0.4 GHz to 0.6 GHz Frequency Range 0.6 GHz to 6 GHz Frequency Range 6 GHz to 7.5 GHz Frequency Range DC Specifications Absolute Maximum Ratings Thermal Resistance Electrostatic Discharge (ESD) Ratings ESD Ratings for ADL8104 ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Recommended Bias Sequencing Outline Dimensions Ordering Guide
