Datasheet ADL5545 (Analog Devices) - 3

FabricanteAnalog Devices
Descripción30 MHz to 6 GHz RF/IF Gain Block
Páginas / Página18 / 3 — Data Sheet. ADL5545. SPECIFICATIONS. Table 1. Parameter. Test …
RevisiónB
Formato / tamaño de archivoPDF / 373 Kb
Idioma del documentoInglés

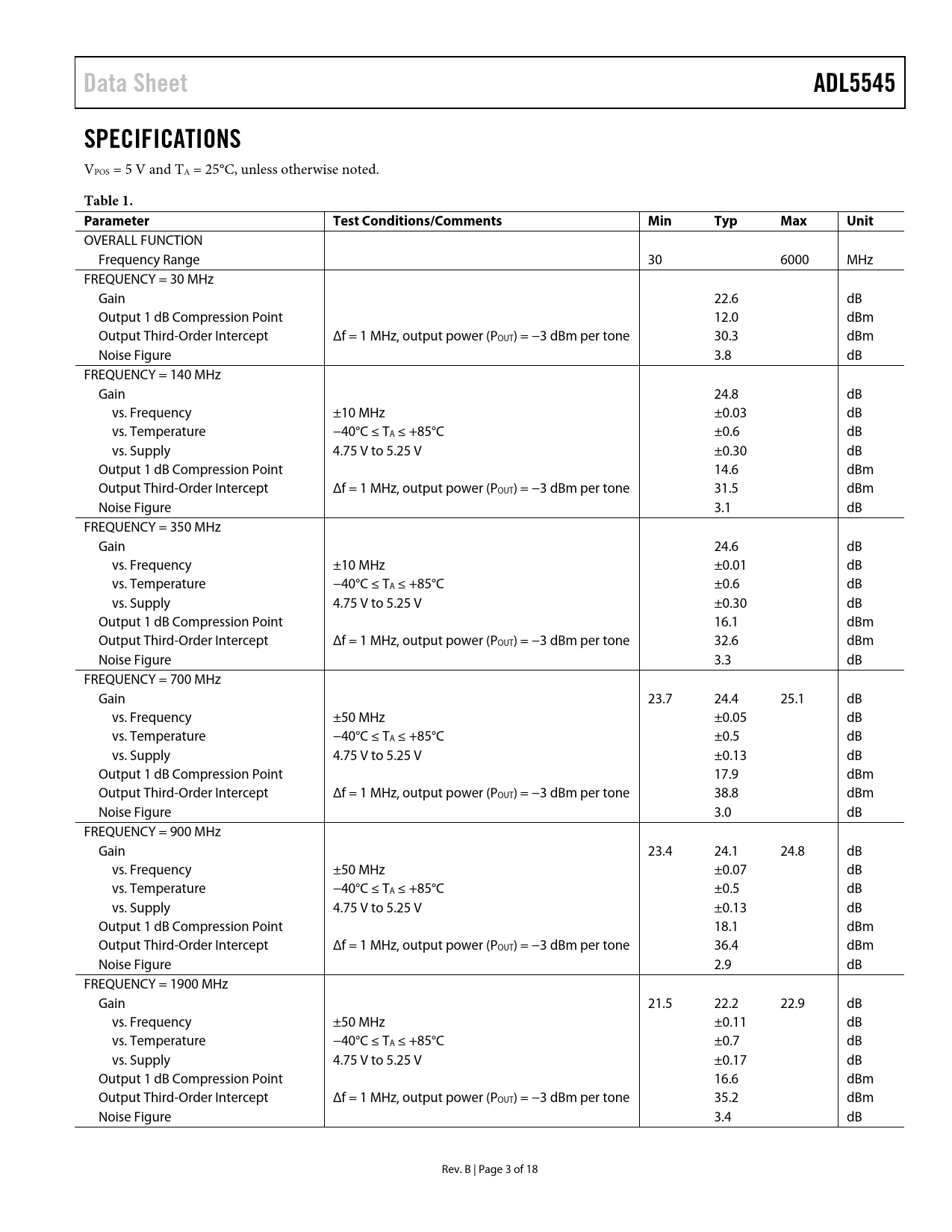

Data Sheet. ADL5545. SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit

Data Sheet ADL5545 SPECIFICATIONS Table 1 Parameter Test Conditions/Comments Min Typ Max Unit

Línea de modelo para esta hoja de datos

Versión de texto del documento

Data Sheet ADL5545 SPECIFICATIONS
VPOS = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 30 6000 MHz FREQUENCY = 30 MHz Gain 22.6 dB Output 1 dB Compression Point 12.0 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = −3 dBm per tone 30.3 dBm Noise Figure 3.8 dB FREQUENCY = 140 MHz Gain 24.8 dB vs. Frequency ±10 MHz ±0.03 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.6 dB vs. Supply 4.75 V to 5.25 V ±0.30 dB Output 1 dB Compression Point 14.6 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = −3 dBm per tone 31.5 dBm Noise Figure 3.1 dB FREQUENCY = 350 MHz Gain 24.6 dB vs. Frequency ±10 MHz ±0.01 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.6 dB vs. Supply 4.75 V to 5.25 V ±0.30 dB Output 1 dB Compression Point 16.1 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = −3 dBm per tone 32.6 dBm Noise Figure 3.3 dB FREQUENCY = 700 MHz Gain 23.7 24.4 25.1 dB vs. Frequency ±50 MHz ±0.05 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.5 dB vs. Supply 4.75 V to 5.25 V ±0.13 dB Output 1 dB Compression Point 17.9 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = −3 dBm per tone 38.8 dBm Noise Figure 3.0 dB FREQUENCY = 900 MHz Gain 23.4 24.1 24.8 dB vs. Frequency ±50 MHz ±0.07 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.5 dB vs. Supply 4.75 V to 5.25 V ±0.13 dB Output 1 dB Compression Point 18.1 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = −3 dBm per tone 36.4 dBm Noise Figure 2.9 dB FREQUENCY = 1900 MHz Gain 21.5 22.2 22.9 dB vs. Frequency ±50 MHz ±0.11 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.7 dB vs. Supply 4.75 V to 5.25 V ±0.17 dB Output 1 dB Compression Point 16.6 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = −3 dBm per tone 35.2 dBm Noise Figure 3.4 dB Rev. B | Page 3 of 18 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 500 MHz TO 4 GHz FREQUENCY BAND 100 MHz TO 500 MHz FREQUENCY BAND 4 GHz TO 6 GHz FREQUENCY BAND GENERAL APPLICATIONS INFORMATION BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN OPERATION DOWN TO 30 MHz W-CDMA ACPR PERFORMANCE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE NOTES NOTES
