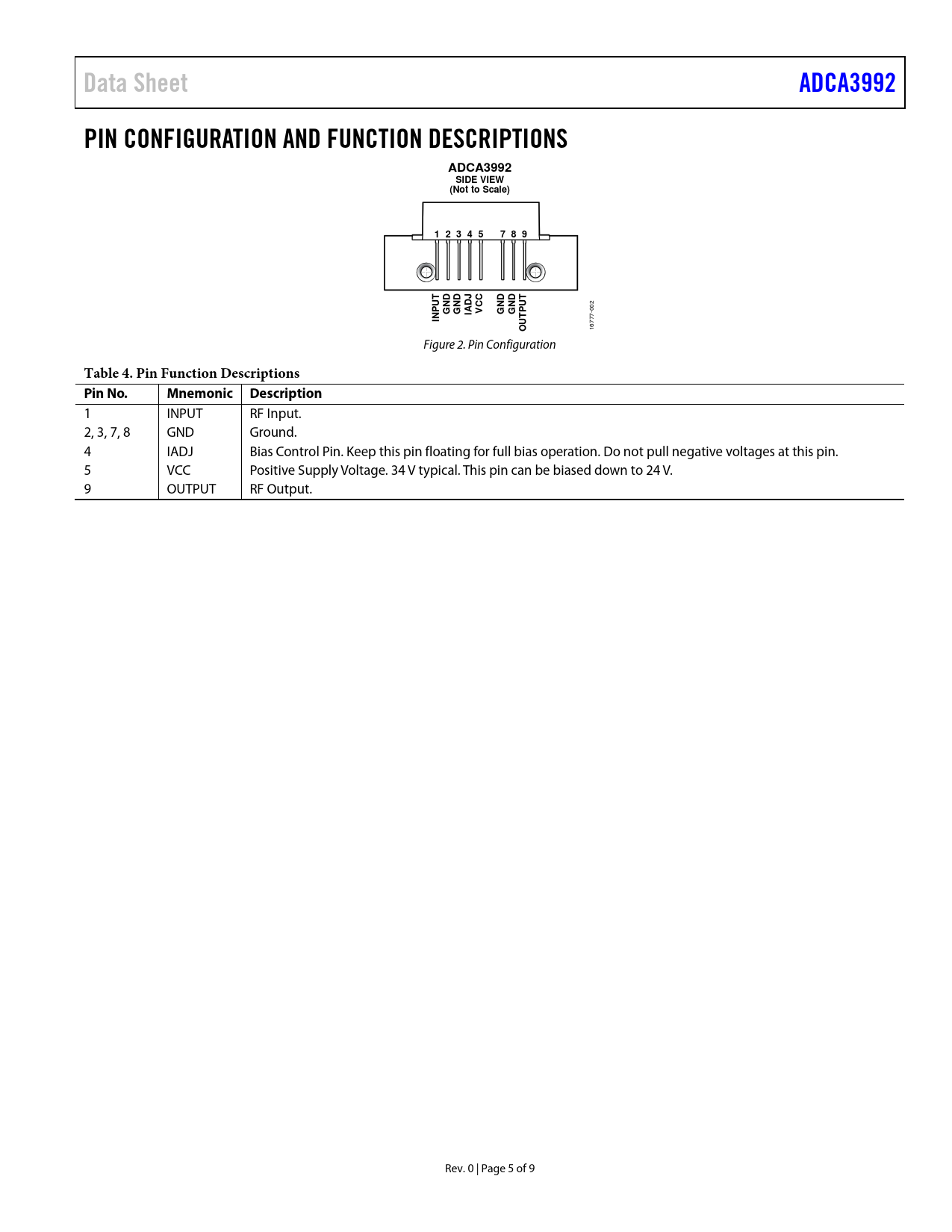

Data Sheet. ADCA3992. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. SIDE VIEW. (Not to Scale). 1 2 3 4 5. 7 8 9. IADJ. INP. UT O

Data Sheet ADCA3992 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SIDE VIEW (Not to Scale) 1 2 3 4 5 7 8 9 IADJ INP UT O

Línea de modelo para esta hoja de datos

Versión de texto del documento

Data Sheet ADCA3992 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADCA3992 SIDE VIEW (Not to Scale) 1 2 3 4 5 7 8 9 UT ND ND CC ND ND UT G IADJ G V P G G
002
INP UT O
16777- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 INPUT RF Input. 2, 3, 7, 8 GND Ground. 4 IADJ Bias Control Pin. Keep this pin floating for full bias operation. Do not pull negative voltages at this pin. 5 VCC Positive Supply Voltage. 34 V typical. This pin can be biased down to 24 V. 9 OUTPUT RF Output. Rev. 0 | Page 5 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS GENERAL PERFORMANCE DISTORTION DATA, 40 MHz TO 550 MHz ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
