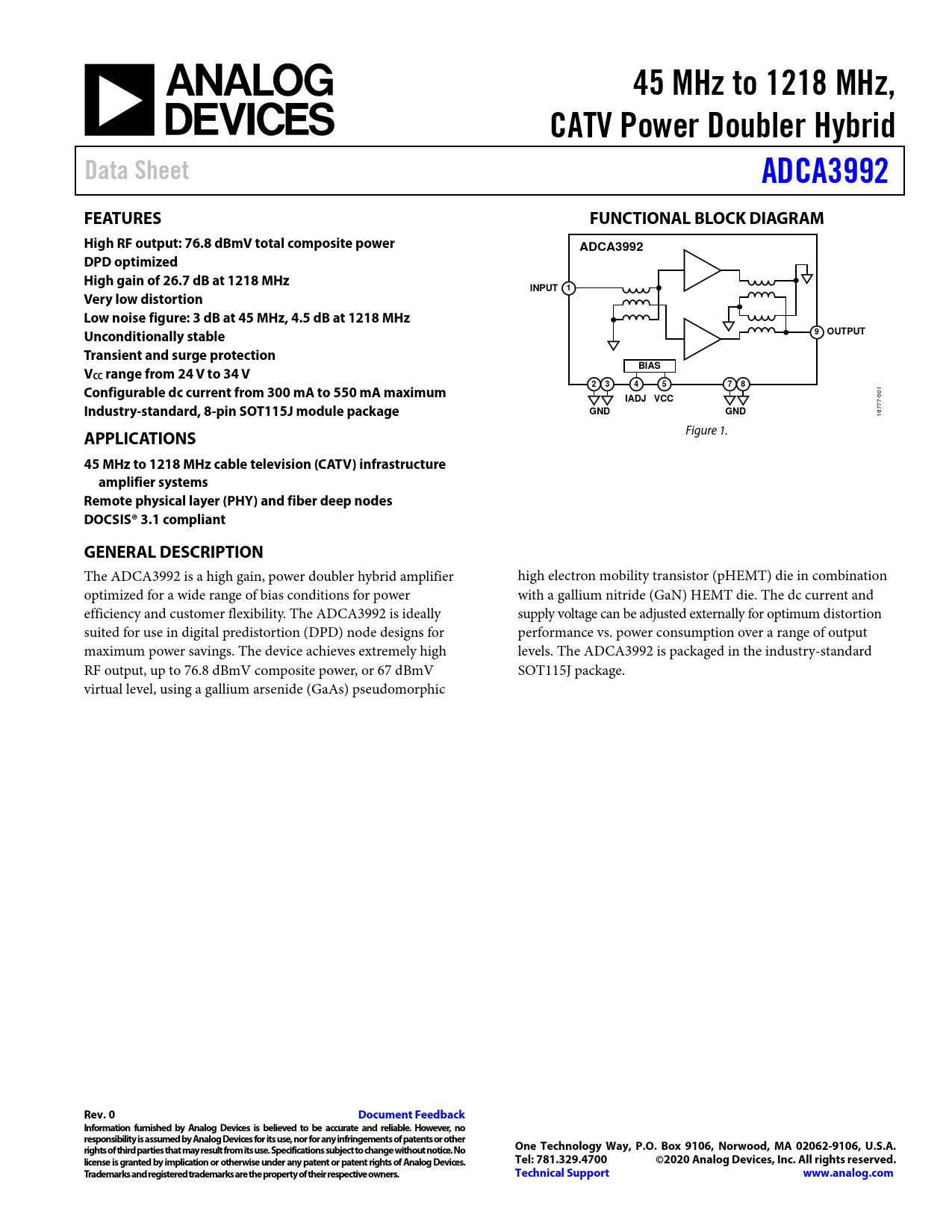

45 MHz to 1218 MHz, CATV Power Doubler Hybrid Data Sheet ADCA3992 FEATURES FUNCTIONAL BLOCK DIAGRAM High RF output: 76.8 dBmV total composite power ADCA3992 DPD optimized High gain of 26.7 dB at 1218 MHz INPUT 1 Very low distortion Low noise figure: 3 dB at 45 MHz, 4.5 dB at 1218 MHz Unconditionally stable 9 OUTPUT Transient and surge protection V BIAS CC range from 24 V to 34 V 2 3 4 5 7 8 Configurable dc current from 300 mA to 550 mA maximum IADJ VCC
001
Industry-standard, 8-pin SOT115J module package GND GND
16777-
APPLICATIONS
Figure 1.
45 MHz to 1218 MHz cable television (CATV) infrastructure amplifier systems Remote physical layer (PHY) and fiber deep nodes DOCSIS® 3.1 compliant GENERAL DESCRIPTION
The ADCA3992 is a high gain, power doubler hybrid amplifier high electron mobility transistor (pHEMT) die in combination optimized for a wide range of bias conditions for power with a gallium nitride (GaN) HEMT die. The dc current and efficiency and customer flexibility. The ADCA3992 is ideal y supply voltage can be adjusted external y for optimum distortion suited for use in digital predistortion (DPD) node designs for performance vs. power consumption over a range of output maximum power savings. The device achieves extremely high levels. The ADCA3992 is packaged in the industry-standard RF output, up to 76.8 dBmV composite power, or 67 dBmV SOT115J package. virtual level, using a gallium arsenide (GaAs) pseudomorphic
