Datasheet HMC441LP3E (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs pHEMT MMIC MEDIUM POWER AMPLIFIER, 6.5 - 13.5 GHz |
| Páginas / Página | 7 / 1 — HMC441LP3E. GaAs pHEMT MMIC MEDIUM. POWER AMPLIFIER, 6.5 - 13.5 GHz. … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |

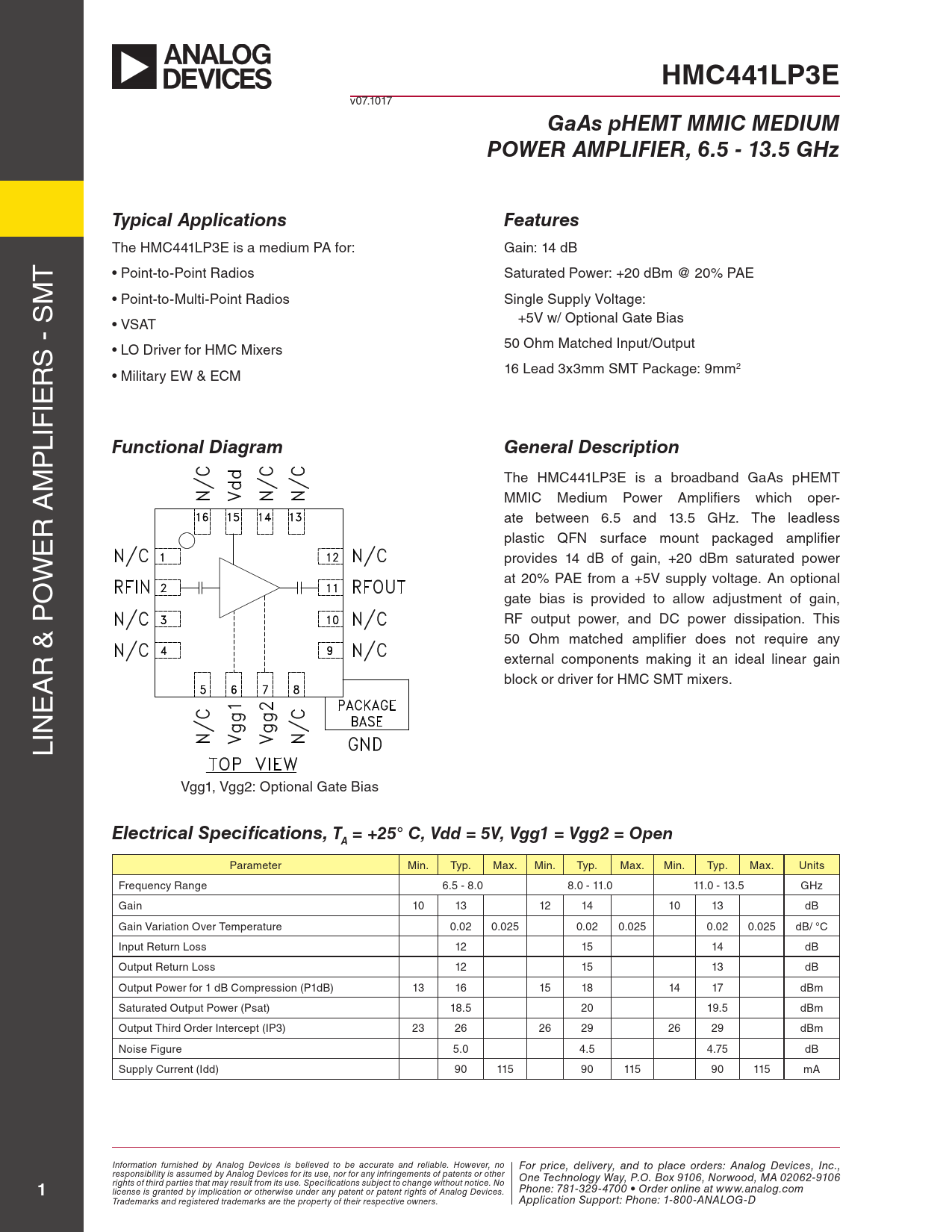

HMC441LP3E. GaAs pHEMT MMIC MEDIUM. POWER AMPLIFIER, 6.5 - 13.5 GHz. Typical Applications. Features. Functional Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC441LP3E
v07.1017
GaAs pHEMT MMIC MEDIUM POWER AMPLIFIER, 6.5 - 13.5 GHz Typical Applications Features
The HMC441LP3E is a medium PA for: Gain: 14 dB T • Point-to-Point Radios Saturated Power: +20 dBm @ 20% PAE M • Point-to-Multi-Point Radios Single Supply Voltage: +5V w/ Optional Gate Bias • VSAT S - S 50 Ohm Matched Input/Output • LO Driver for HMC Mixers R 16 Lead 3x3mm SMT Package: 9mm2 • Military EW & ECM IE LIF P
Functional Diagram General Description
M The HMC441LP3E is a broadband GaAs pHEMT MMIC Medium Power Amplifiers which oper- R A ate between 6.5 and 13.5 GHz. The leadless E plastic QFN surface mount packaged amplifier W provides 14 dB of gain, +20 dBm saturated power O at 20% PAE from a +5V supply voltage. An optional gate bias is provided to al ow adjustment of gain, RF output power, and DC power dissipation. This 50 Ohm matched amplifier does not require any R & P external components making it an ideal linear gain A block or driver for HMC SMT mixers. E LIN Vgg1, Vgg2: Optional Gate Bias
Electrical Specifications, T = +25° C, Vdd = 5V, Vgg1 = Vgg2 = Open A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 6.5 - 8.0 8.0 - 11.0 11.0 - 13.5 GHz Gain 10 13 12 14 10 13 dB Gain Variation Over Temperature 0.02 0.025 0.02 0.025 0.02 0.025 dB/ °C Input Return Loss 12 15 14 dB Output Return Loss 12 15 13 dB Output Power for 1 dB Compression (P1dB) 13 16 15 18 14 17 dBm Saturated Output Power (Psat) 18.5 20 19.5 dBm Output Third Order Intercept (IP3) 23 26 26 29 26 29 dBm Noise Figure 5.0 4.5 4.75 dB Supply Current (Idd) 90 115 90 115 90 115 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
