Datasheet HMC451LP3, 451LP3E (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 5 - 18 GHz |
| Páginas / Página | 6 / 5 — HMC451LP3 / 451LP3E. GaAs PHEMT MMIC MEDIUM. POWER AMPLIFIER, 5 - 18 GHz. … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |

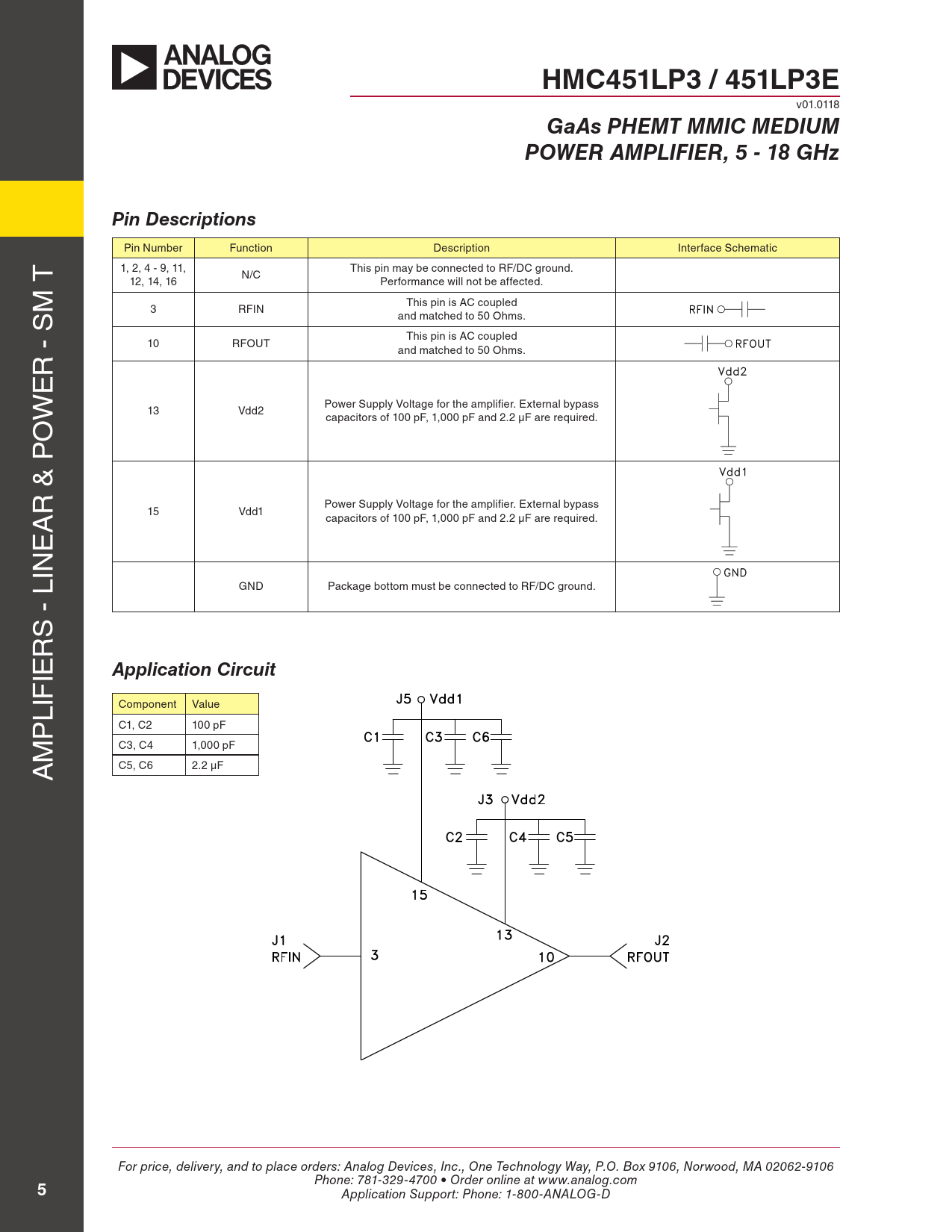

HMC451LP3 / 451LP3E. GaAs PHEMT MMIC MEDIUM. POWER AMPLIFIER, 5 - 18 GHz. Pin Descriptions. Application Circuit
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC451LP3 / 451LP3E
v01.0118
GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 5 - 18 GHz Pin Descriptions
pin number function Description interface schematic T 1, 2, 4 - 9, 11, This pin may be connected to rf/DC ground. n/C 12, 14, 16 performance will not be affected. m This pin is AC coupled s 3 rfin and matched to 50 ohms. This pin is AC coupled 10 rfoUT and matched to 50 ohms. r - e w power supply Voltage for the amplifier. external bypass 13 Vdd2 o capacitors of 100 pf, 1,000 pf and 2.2 µf are required. p r & power supply Voltage for the amplifier. external bypass A 15 Vdd1 capacitors of 100 pf, 1,000 pf and 2.2 µf are required. e lin GnD package bottom must be connected to rf/DC ground. s - r ie
Application Circuit
lif Component Value p C1, C2 100 pf m C3, C4 1,000 pf A C5, C6 2.2 µf For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
