Datasheet HMC451LP3, 451LP3E (Analog Devices)

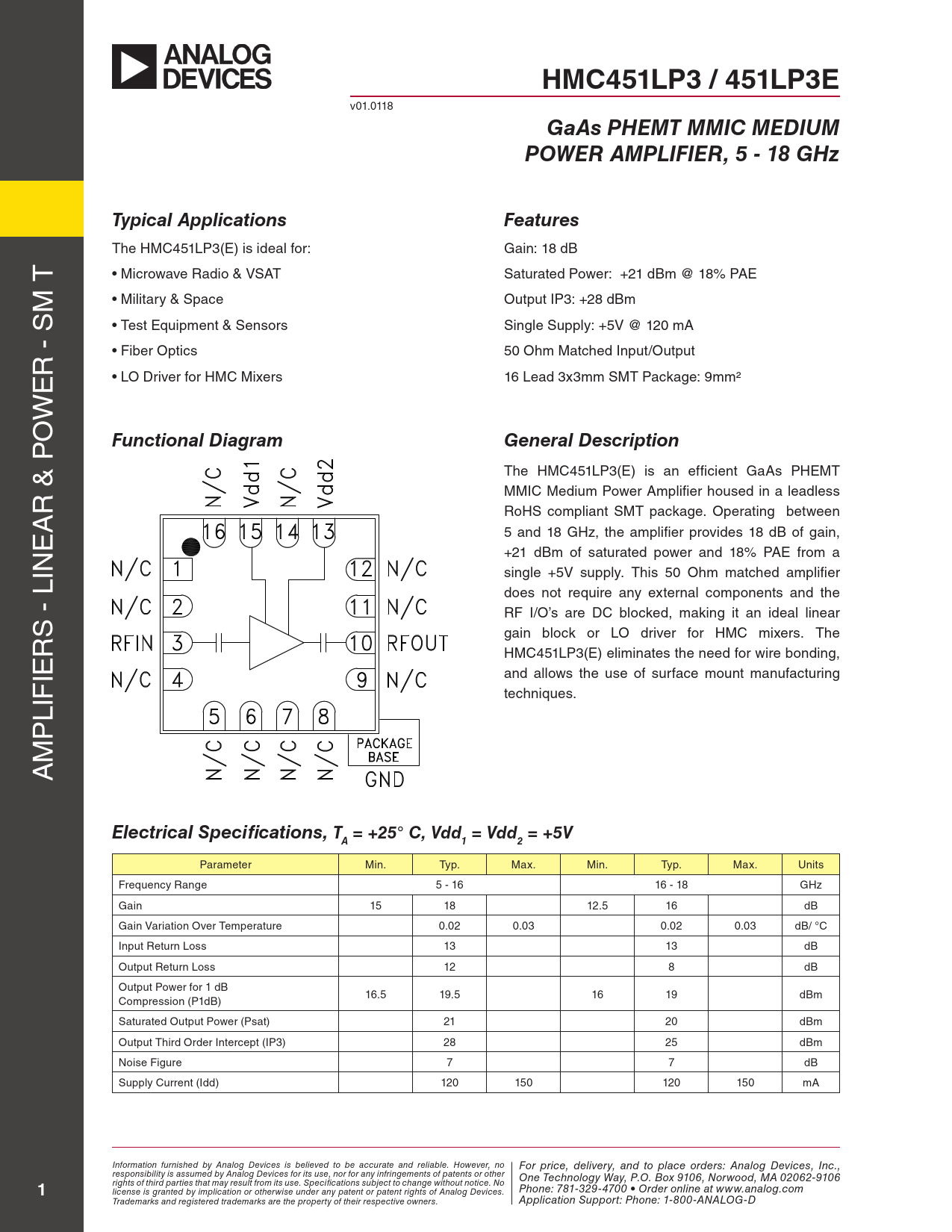

HMC451LP3 / 451LP3E
v01.0118
GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 5 - 18 GHz Typical Applications Features
The HmC451lp3(e) is ideal for: Gain: 18 dB T • microwave radio & VsAT saturated power: +21 dBm @ 18% pAe m • military & space output ip3: +28 dBm s • Test equipment & sensors single supply: +5V @ 120 mA r - • fiber optics 50 ohm matched input/output e • lo Driver for HmC mixers 16 lead 3x3mm smT package: 9mm² w o p
Functional Diagram General Description
The HmC451lp3(e) is an efficient GaAs pHemT r & mmiC medium power Amplifier housed in a leadless A roHs compliant smT package. operating between e 5 and 18 GHz, the amplifier provides 18 dB of gain, +21 dBm of saturated power and 18% pAe from a lin single +5V supply. This 50 ohm matched amplifier does not require any external components and the s - rf i/o’s are DC blocked, making it an ideal linear r gain block or lo driver for HmC mixers. The HmC451lp3(e) eliminates the need for wire bonding, ie and al ows the use of surface mount manufacturing techniques. lif p m A
Electrical Specifications, T = +25° C, Vdd = Vdd = +5V A 1 2
parameter min. Typ. max. min. Typ. max. Units frequency range 5 - 16 16 - 18 GHz Gain 15 18 12.5 16 dB Gain Variation over Temperature 0.02 0.03 0.02 0.03 dB/ °C input return loss 13 13 dB output return loss 12 8 dB output power for 1 dB 16.5 19.5 16 19 dBm Compression (p1dB) saturated output power (psat) 21 20 dBm output Third order intercept (ip3) 28 25 dBm noise figure 7 7 dB supply Current (idd) 120 150 120 150 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
