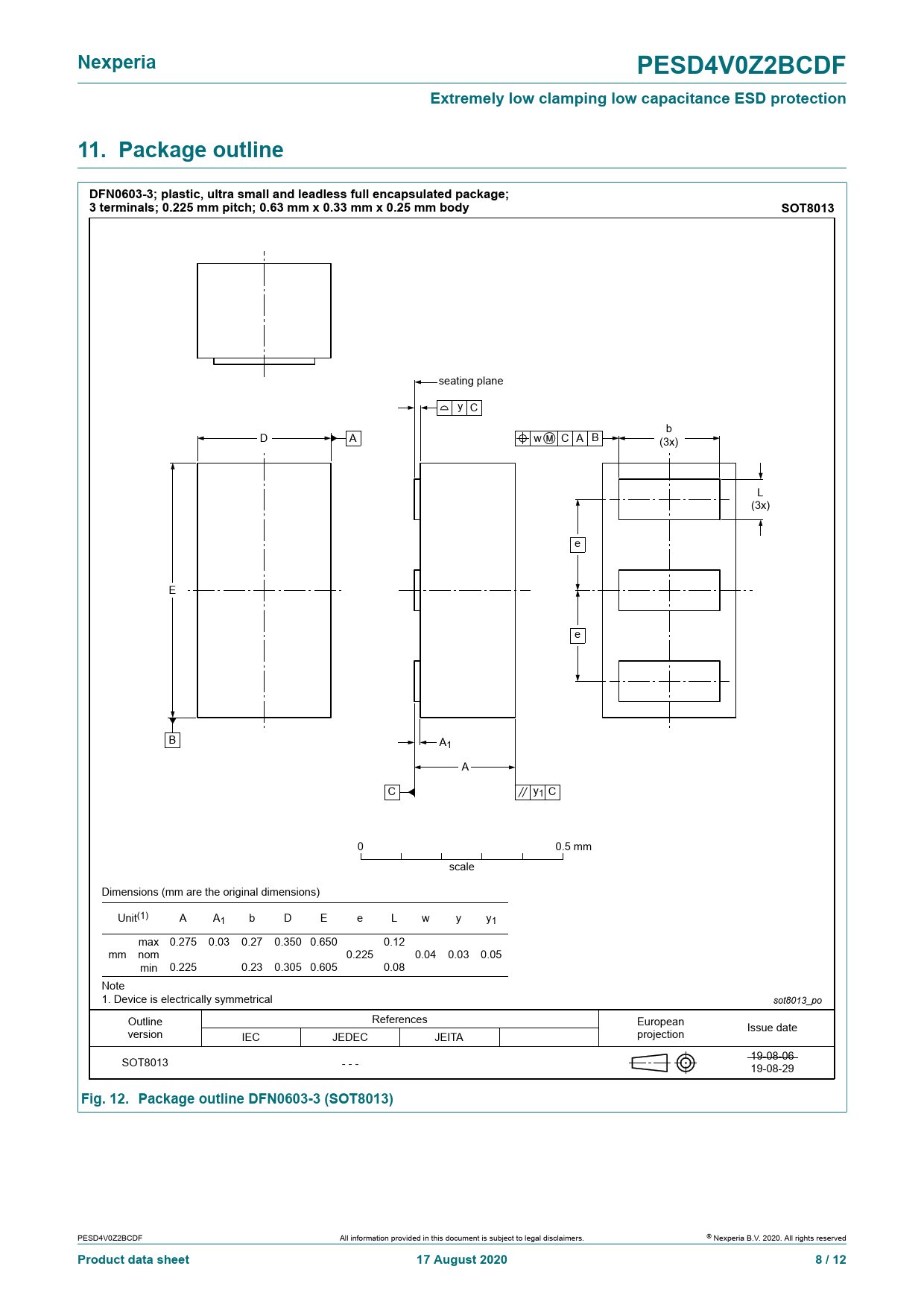

Nexperia PESD4V0Z2BCDF Extremely low clamping low capacitance ESD protection 11. Package outline DFN0603-3; plastic, ultra small and leadless full encapsulated package; 3 terminals; 0.225 mm pitch; 0.63 mm x 0.33 mm x 0.25 mm body SOT8013
seating plane y C b D A w C A B (3x) L (3x) e E e B A1 A C y1 C 0 0.5 mm scale Dimensions (mm are the original dimensions) Unit(1) A A1 b D E e L w y y1 max 0.275 0.03 0.27 0.350 0.650 0.12 mm nom 0.225 0.04 0.03 0.05 min 0.225 0.23 0.305 0.605 0.08 Note 1. Device is electrically symmetrical sot8013_po Outline References European version projection Issue date IEC JEDEC JEITA SOT8013 19-08-06 - - - 19-08-29
Fig. 12. Package outline DFN0603-3 (SOT8013)
