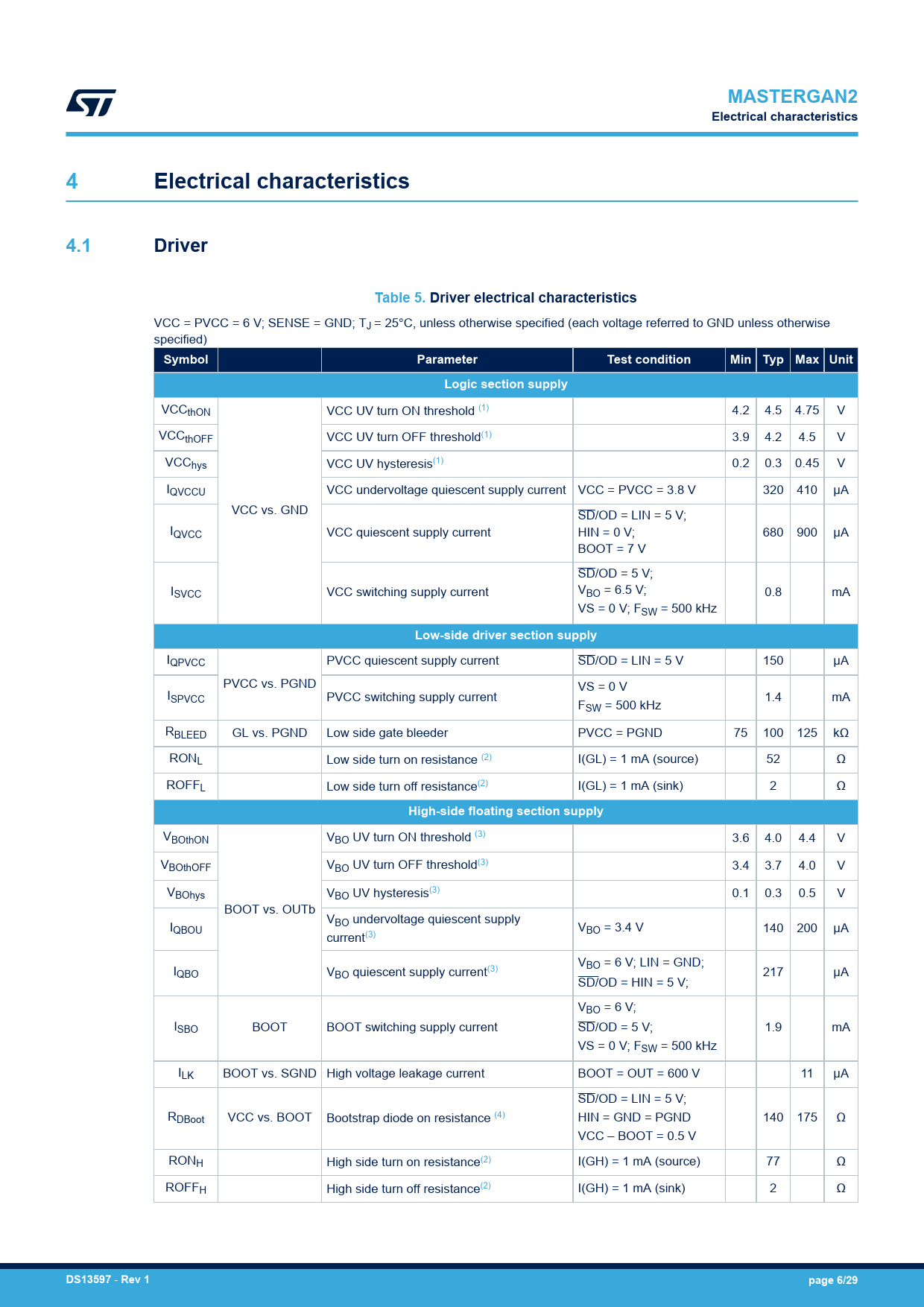

MASTERGAN2. Electrical characteristics. 4.1. Driver. Table 5. Driver electrical characteristics. Symbol. Parameter. Test condition
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7
MASTERGAN2 Electrical characteristics 4 Electrical characteristics 4.1 Driver Table 5. Driver electrical characteristics
VCC = PVCC = 6 V; SENSE = GND; TJ = 25°C, unless otherwise specified (each voltage referred to GND unless otherwise specified)
Symbol Parameter Test condition Min Typ Max Unit Logic section supply
VCCthON VCC UV turn ON threshold (1) 4.2 4.5 4.75 V VCCthOFF VCC UV turn OFF threshold(1) 3.9 4.2 4.5 V VCChys VCC UV hysteresis(1) 0.2 0.3 0.45 V IQVCCU VCC undervoltage quiescent supply current VCC = PVCC = 3.8 V 320 410 μA VCC vs. GND SD/OD = LIN = 5 V; IQVCC VCC quiescent supply current HIN = 0 V; 680 900 μA BOOT = 7 V SD/OD = 5 V; ISVCC VCC switching supply current VBO = 6.5 V; 0.8 mA VS = 0 V; FSW = 500 kHz
Low-side driver section supply
IQPVCC PVCC quiescent supply current SD/OD = LIN = 5 V 150 μA PVCC vs. PGND VS = 0 V ISPVCC PVCC switching supply current 1.4 mA FSW = 500 kHz RBLEED GL vs. PGND Low side gate bleeder PVCC = PGND 75 100 125 kΩ RONL Low side turn on resistance (2) I(GL) = 1 mA (source) 52 Ω ROFFL Low side turn off resistance(2) I(GL) = 1 mA (sink) 2 Ω
High-side floating section supply
VBOthON VBO UV turn ON threshold (3) 3.6 4.0 4.4 V VBOthOFF VBO UV turn OFF threshold(3) 3.4 3.7 4.0 V VBOhys VBO UV hysteresis(3) 0.1 0.3 0.5 V BOOT vs. OUTb V I BO undervoltage quiescent supply QBOU V current(3) BO = 3.4 V 140 200 μA V I BO = 6 V; LIN = GND; QBO VBO quiescent supply current(3) 217 μA SD/OD = HIN = 5 V; VBO = 6 V; ISBO BOOT BOOT switching supply current SD/OD = 5 V; 1.9 mA VS = 0 V; FSW = 500 kHz ILK BOOT vs. SGND High voltage leakage current BOOT = OUT = 600 V 11 μA SD/OD = LIN = 5 V; RDBoot VCC vs. BOOT Bootstrap diode on resistance (4) HIN = GND = PGND 140 175 Ω VCC – BOOT = 0.5 V RONH High side turn on resistance(2) I(GH) = 1 mA (source) 77 Ω ROFFH High side turn off resistance(2) I(GH) = 1 mA (sink) 2 Ω
DS13597
-
Rev 1 page 6/29
