Datasheet BPF8089-01SC6 (STMicroelectronics) - 10
| Fabricante | STMicroelectronics |
| Descripción | STA8089 / STA8090 LNA impedance matching with ESD protection in SOT23 |
| Páginas / Página | 14 / 10 — BPF8089-01SC6. SOT23-6L package information. Figure 18. Tape and reel … |
| Formato / tamaño de archivo | PDF / 626 Kb |
| Idioma del documento | Inglés |

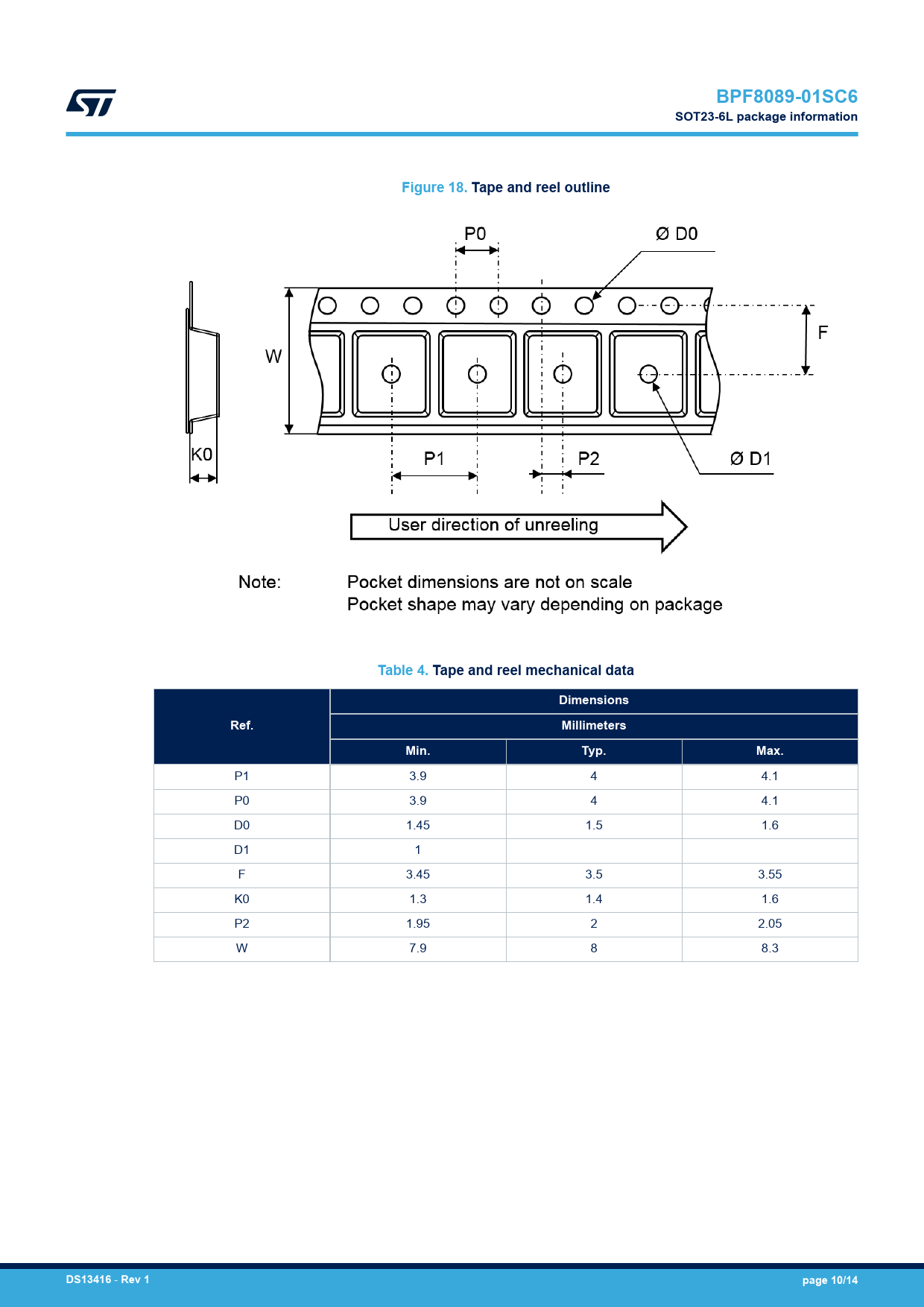

BPF8089-01SC6. SOT23-6L package information. Figure 18. Tape and reel outline. Table 4. Tape and reel mechanical data
Línea de modelo para esta hoja de datos
Versión de texto del documento
BPF8089-01SC6 SOT23-6L package information Figure 18. Tape and reel outline Table 4. Tape and reel mechanical data Dimensions Ref. Millimeters Min. Typ. Max.
P1 3.9 4 4.1 P0 3.9 4 4.1 D0 1.45 1.5 1.6 D1 1 F 3.45 3.5 3.55 K0 1.3 1.4 1.6 P2 1.95 2 2.05 W 7.9 8 8.3
DS13416
-
Rev 1 page 10/14
