Datasheet BPF8089-01SC6 (STMicroelectronics) - 2
| Fabricante | STMicroelectronics |
| Descripción | STA8089 / STA8090 LNA impedance matching with ESD protection in SOT23 |
| Páginas / Página | 14 / 2 — BPF8089-01SC6. Characteristics. Table 1. Absolute maximum ratings (Tamb = … |
| Formato / tamaño de archivo | PDF / 626 Kb |
| Idioma del documento | Inglés |
BPF8089-01SC6. Characteristics. Table 1. Absolute maximum ratings (Tamb = 25 °C). Symbol. Parameter. Value. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento

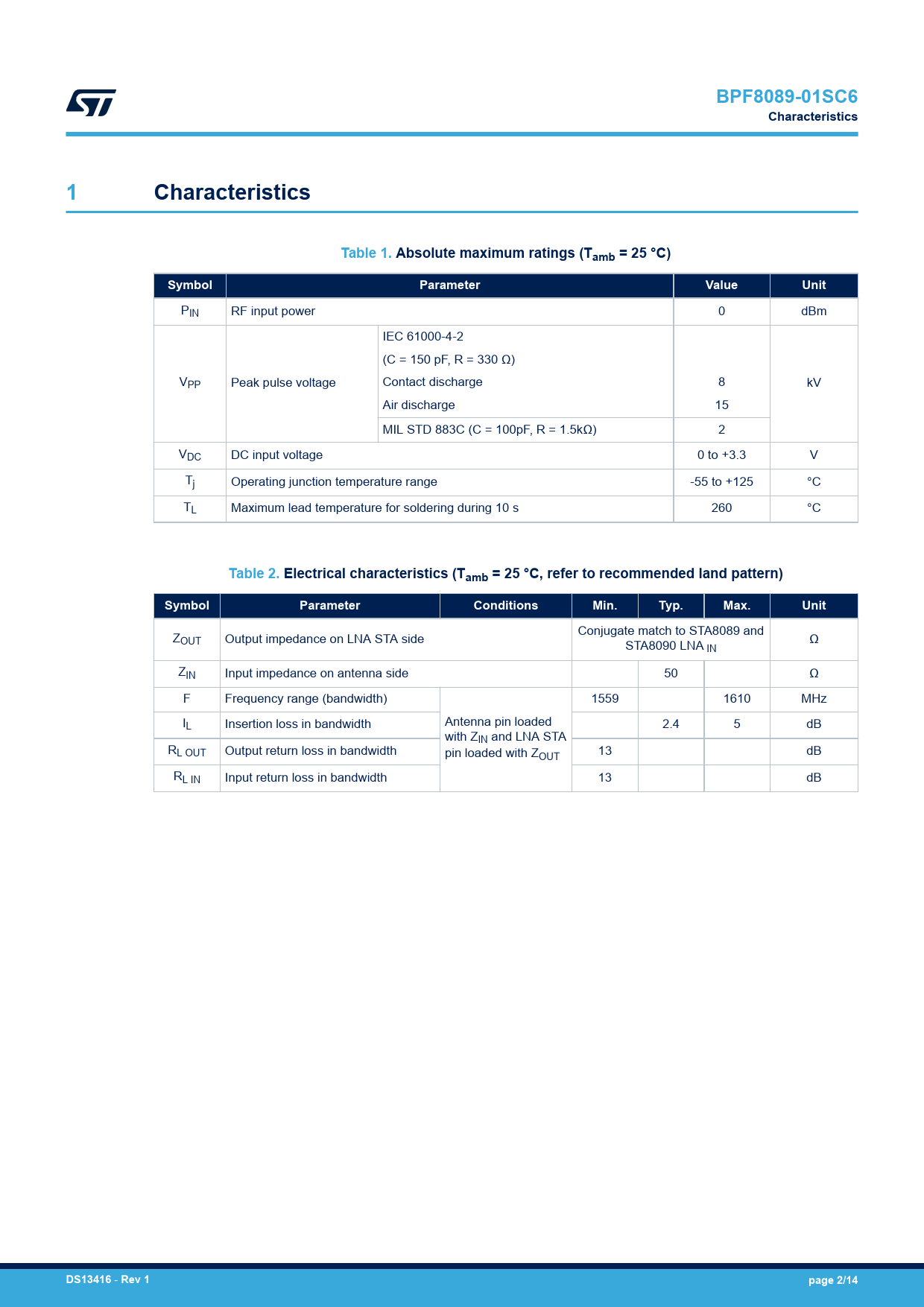

BPF8089-01SC6 Characteristics 1 Characteristics Table 1. Absolute maximum ratings (Tamb = 25 °C) Symbol Parameter Value Unit
PIN RF input power 0 dBm IEC 61000-4-2 (C = 150 pF, R = 330 Ω) VPP Peak pulse voltage Contact discharge 8 kV Air discharge 15 MIL STD 883C (C = 100pF, R = 1.5kΩ) 2 VDC DC input voltage 0 to +3.3 V Tj Operating junction temperature range -55 to +125 °C TL Maximum lead temperature for soldering during 10 s 260 °C
Table 2. Electrical characteristics (Tamb = 25 °C, refer to recommended land pattern) Symbol Parameter Conditions Min. Typ. Max. Unit
Conjugate match to STA8089 and ZOUT Output impedance on LNA STA side STA8090 LNA Ω IN ZIN Input impedance on antenna side 50 Ω F Frequency range (bandwidth) 1559 1610 MHz I Antenna pin loaded L Insertion loss in bandwidth 2.4 5 dB with ZIN and LNA STA RL OUT Output return loss in bandwidth pin loaded with Z 13 dB OUT RL IN Input return loss in bandwidth 13 dB
DS13416
-
Rev 1 page 2/14
