Datasheet T835H-8G (STMicroelectronics) - 10
| Fabricante | STMicroelectronics |
| Descripción | 8 A - 800 V - 150°C 8H-Triac in D2PAK |
| Páginas / Página | 12 / 10 — T835H-8G. Ordering information. Figure 18. Ordering information scheme. … |
| Formato / tamaño de archivo | PDF / 263 Kb |
| Idioma del documento | Inglés |
T835H-8G. Ordering information. Figure 18. Ordering information scheme. Table 6. Ordering information. Order code. Marking. Package
Línea de modelo para esta hoja de datos
Versión de texto del documento

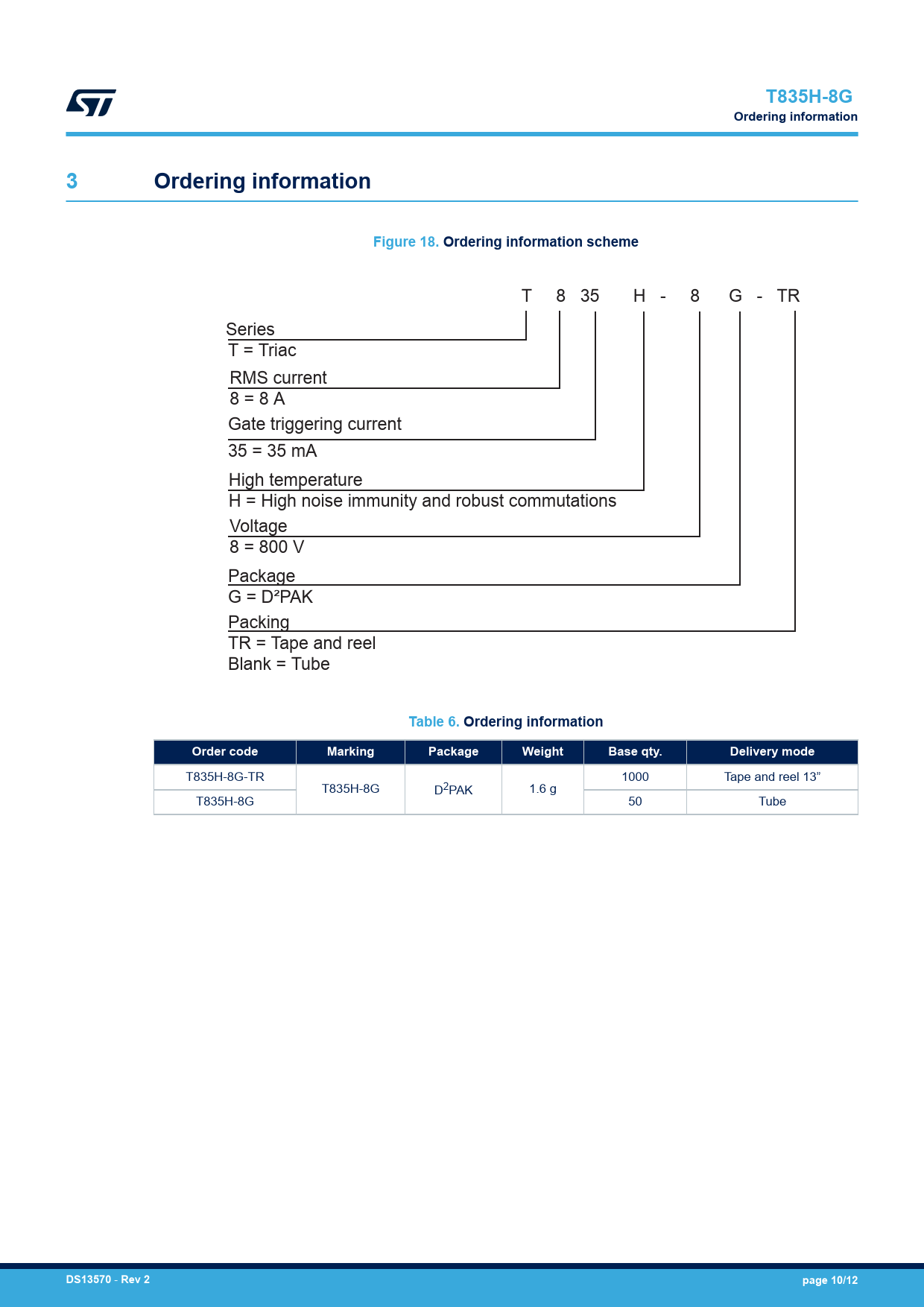

T835H-8G Ordering information 3 Ordering information Figure 18. Ordering information scheme
T 8 35 H - 8 G - TR Series T = Triac RMS current 8 = 8 A Gate triggering current 35 = 35 mA High temperature H = High noise immunity and robust commutations Voltage 8 = 800 V Package G = D²PAK Packing TR = Tape and reel Blank = Tube
Table 6. Ordering information Order code Marking Package Weight Base qty. Delivery mode
T835H-8G-TR 1000 Tape and reel 13” T835H-8G D2PAK 1.6 g T835H-8G 50 Tube
DS13570
-
Rev 2 page 10/12
Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 D²PAK package information 3 Ordering information Revision history
