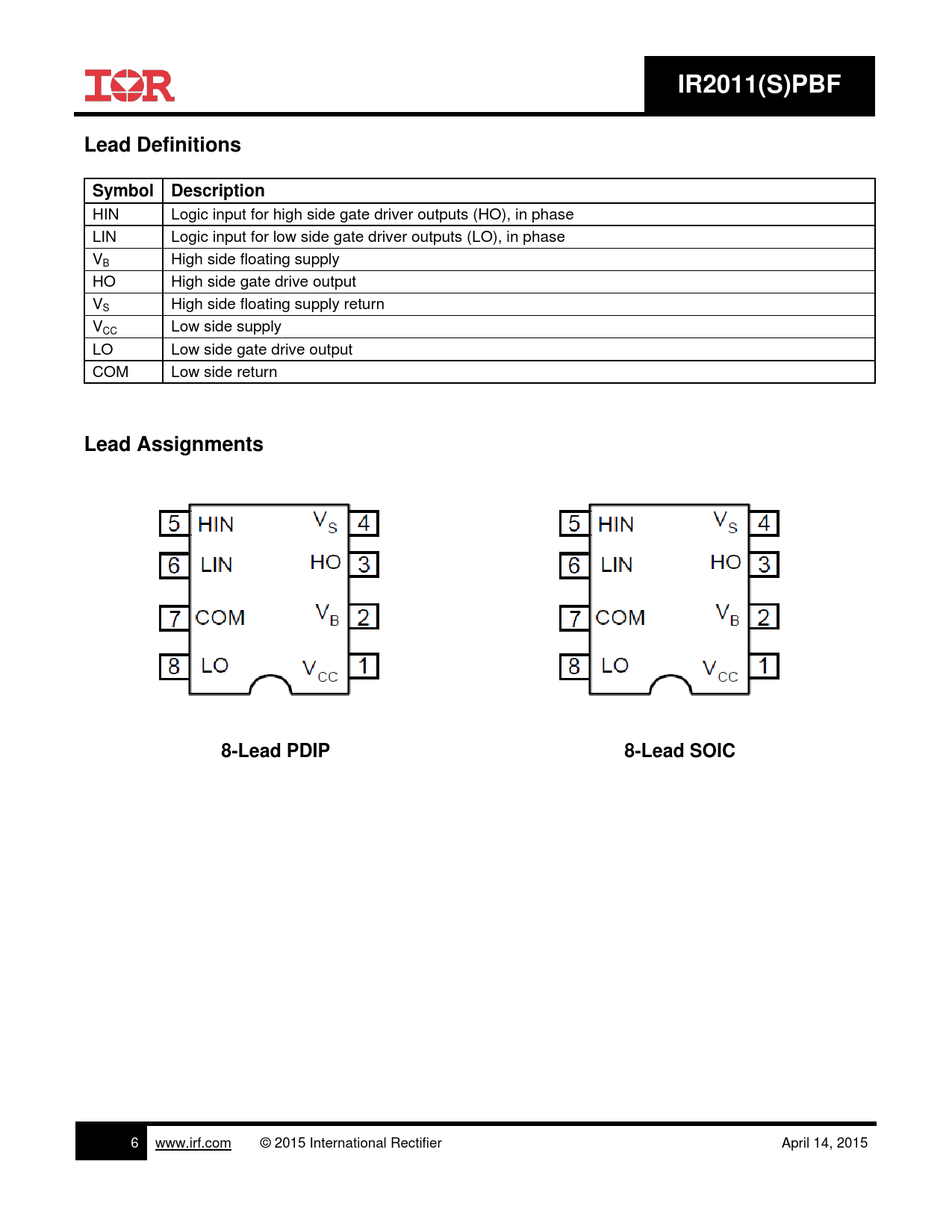

IR2011(S)PBF. Lead Definitions. Symbol. Description. Lead Assignments. 8-Lead PDIP. 8-Lead SOIC
Línea de modelo para esta hoja de datos
Versión de texto del documento
IR2011(S)PBF Lead Definitions Symbol Description
HIN Logic input for high side gate driver outputs (HO), in phase LIN Logic input for low side gate driver outputs (LO), in phase VB High side floating supply HO High side gate drive output VS High side floating supply return VCC Low side supply LO Low side gate drive output COM Low side return
Lead Assignments 8-Lead PDIP 8-Lead SOIC
6 www.irf.com © 2015 International Rectifier April 14, 2015
HIN Logic input for high side gate driver outputs (HO), in phase LIN Logic input for low side gate driver outputs (LO), in phase VB High side floating supply HO High side gate drive output VS High side floating supply return VCC Low side supply LO Low side gate drive output COM Low side return
Lead Assignments 8-Lead PDIP 8-Lead SOIC
6 www.irf.com © 2015 International Rectifier April 14, 2015
