Datasheet 1ED38x0Mc12M (1ED-X3 Digital) (Infineon) - 6
| Fabricante | Infineon |
| Descripción | EiceDRIVER 1ED38x0Mc12M Enhanced. Single-channel isolated gate driver IC with I2C configurability for DESAT, Soft-off, UVLO, Miller clamp and two-level turn-off |
| Páginas / Página | 47 / 6 — EiceDRIVER™ 1ED38x0Mc12M Enhanced. Datasheet. 2 Related products. Related … |
| Revisión | 02_00 |
| Formato / tamaño de archivo | PDF / 722 Kb |
| Idioma del documento | Inglés |

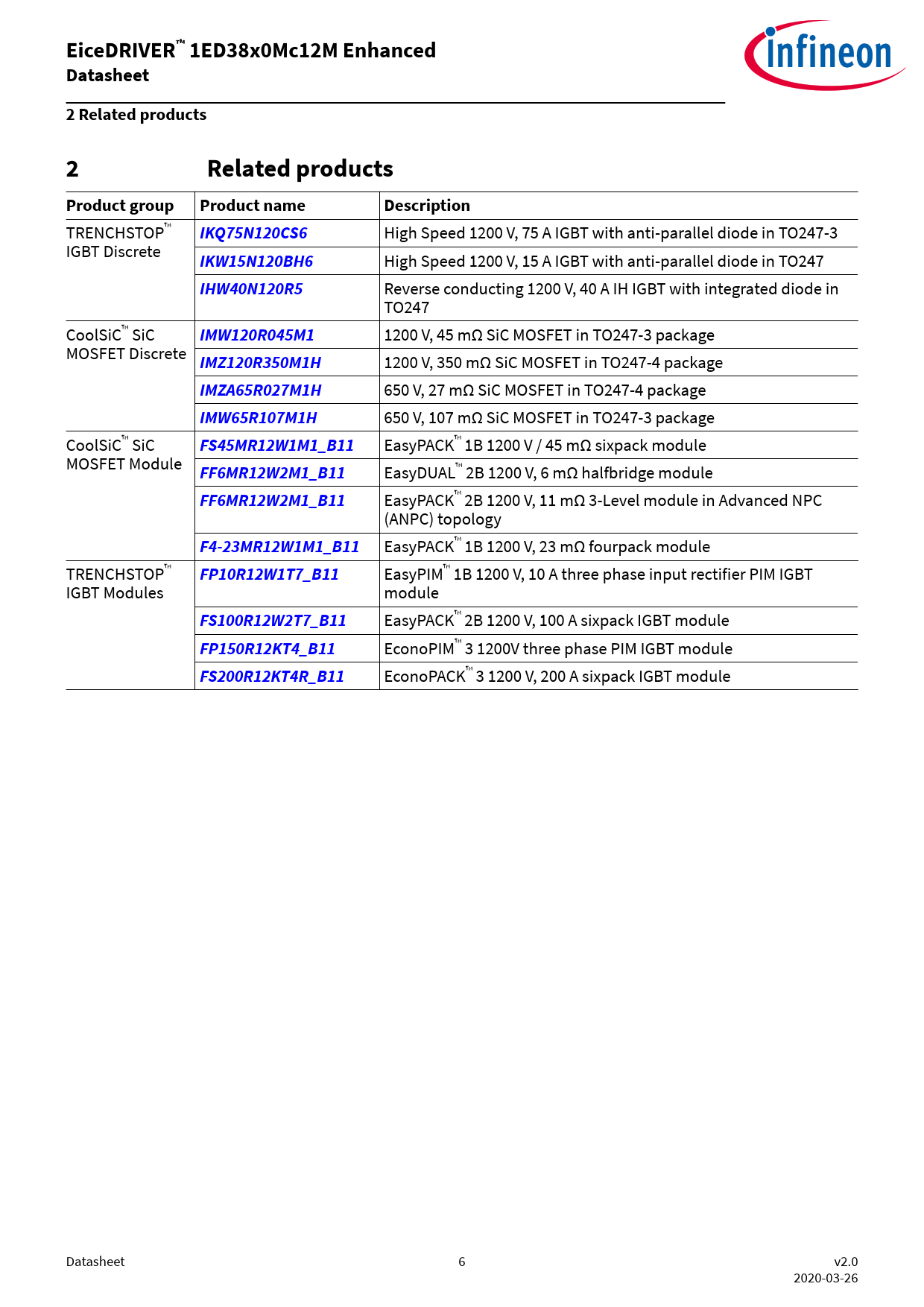

EiceDRIVER™ 1ED38x0Mc12M Enhanced. Datasheet. 2 Related products. Related products. Product group. Product name. Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
EiceDRIVER™ 1ED38x0Mc12M Enhanced Datasheet 2 Related products 2 Related products Product group Product name Description
TRENCHSTOP™
IKQ75N120CS6
High Speed 1200 V, 75 A IGBT with anti-parallel diode in TO247-3 IGBT Discrete
IKW15N120BH6
High Speed 1200 V, 15 A IGBT with anti-parallel diode in TO247
IHW40N120R5
Reverse conducting 1200 V, 40 A IH IGBT with integrated diode in TO247 CoolSiC™ SiC
IMW120R045M1
1200 V, 45 mΩ SiC MOSFET in TO247-3 package MOSFET Discrete
IMZ120R350M1H
1200 V, 350 mΩ SiC MOSFET in TO247-4 package
IMZA65R027M1H
650 V, 27 mΩ SiC MOSFET in TO247-4 package
IMW65R107M1H
650 V, 107 mΩ SiC MOSFET in TO247-3 package CoolSiC™ SiC
FS45MR12W1M1_B11
EasyPACK™ 1B 1200 V / 45 mΩ sixpack module MOSFET Module
FF6MR12W2M1_B11
EasyDUAL™ 2B 1200 V, 6 mΩ halfbridge module
FF6MR12W2M1_B11
EasyPACK™ 2B 1200 V, 11 mΩ 3-Level module in Advanced NPC (ANPC) topology
F4-23MR12W1M1_B11
EasyPACK™ 1B 1200 V, 23 mΩ fourpack module TRENCHSTOP™
FP10R12W1T7_B11
EasyPIM™ 1B 1200 V, 10 A three phase input rectifier PIM IGBT IGBT Modules module
FS100R12W2T7_B11
EasyPACK™ 2B 1200 V, 100 A sixpack IGBT module
FP150R12KT4_B11
EconoPIM™ 3 1200V three phase PIM IGBT module
FS200R12KT4R_B11
EconoPACK™ 3 1200 V, 200 A sixpack IGBT module Datasheet 6 v2.0 2020-03-26 Document Outline Table of contents 1 Block diagram 2 Related products 3 Pin configuration and functionality 3.1 Pin configuration 3.2 Pin functionality 3.3 Configurable parameters via I2C 4 Functional description 4.1 Start-up and fault clearing 4.2 Supply 4.3 Input side logic 4.4 I2C bus 4.5 Operating states 4.6 Measurement 4.7 Monitoring 4.8 Desaturation protection 4.8.1 DESAT behavior 4.9 Gate driver output 4.9.1 Turn-on behavior 4.9.2 Turn-off and fault turn-off behavior 4.9.2.1 Hard switching turn-off 4.9.2.2 Two-level turn-off 4.9.2.3 Soft turn-off 4.9.3 Active shut-down 4.9.4 Active Miller clamp 4.10 Short circuit clamping 5 Electrical parameters 5.1 Absolute maximum ratings 5.2 Thermal parameters 5.3 Operating parameters 5.4 Electrical characteristics 5.4.1 Voltage supply 5.4.2 Logic input and output 5.4.3 Gate driver 5.4.4 Active Miller clamp 5.4.5 Dynamic characteristics 5.4.6 Desaturation protection 5.4.7 Two-level turn-off 5.4.8 Soft-off current source 5.4.9 Over-temperature protection 5.4.10 ADC measurement 6 Insulation characteristics 6.1 Certified according to VDE 0884-11 and IEC 60747-17 reinforced insulation (planned) 6.2 Recognized under UL 1577 (planned) 7 Package information Revision history Disclaimer
