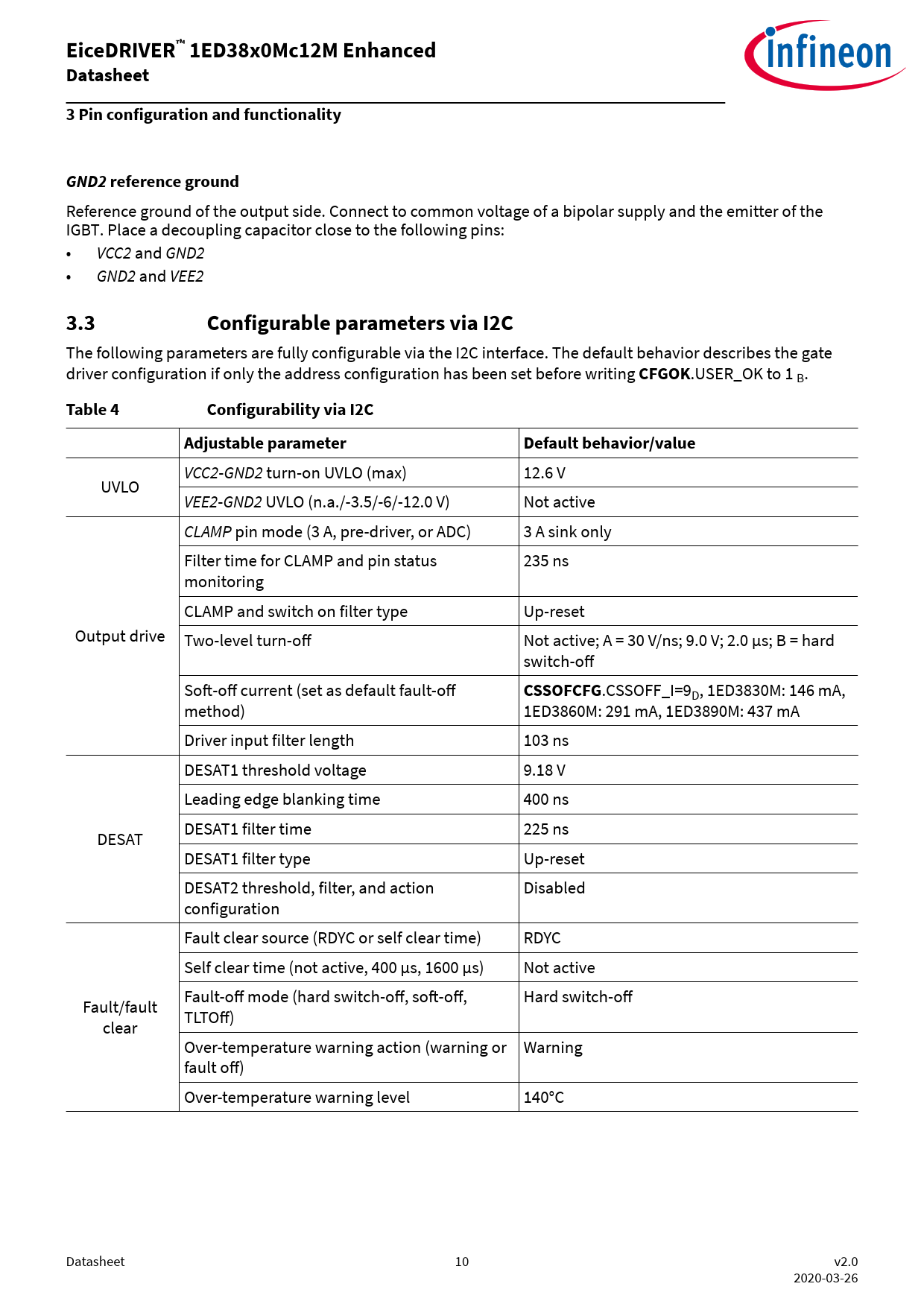

EiceDRIVER™ 1ED38x0Mc12M Enhanced. Datasheet. 3 Pin configuration and functionality. GND2. reference ground. 3.3

EiceDRIVER™ 1ED38x0Mc12M Enhanced Datasheet 3 Pin configuration and functionality GND2 reference ground 3.3

Línea de modelo para esta hoja de datos

Versión de texto del documento

EiceDRIVER™ 1ED38x0Mc12M Enhanced Datasheet 3 Pin configuration and functionality GND2 reference ground
Reference ground of the output side. Connect to common voltage of a bipolar supply and the emitter of the IGBT. Place a decoupling capacitor close to the following pins: • VCC2 and GND2 • GND2 and VEE2
3.3 Configurable parameters via I2C
The following parameters are fully configurable via the I2C interface. The default behavior describes the gate driver configuration if only the address configuration has been set before writing
CFGOK
.USER_OK to 1 B.
Table 4 Configurability via I2C Adjustable parameter Default behavior/value
VCC2-GND2 turn-on UVLO (max) 12.6 V UVLO VEE2-GND2 UVLO (n.a./-3.5/-6/-12.0 V) Not active CLAMP pin mode (3 A, pre-driver, or ADC) 3 A sink only Filter time for CLAMP and pin status 235 ns monitoring CLAMP and switch on filter type Up-reset Output drive Two-level turn-off Not active; A = 30 V/ns; 9.0 V; 2.0 µs; B = hard switch-off Soft-off current (set as default fault-off
CSSOFCFG
.CSSOFF_I=9D, 1ED3830M: 146 mA, method) 1ED3860M: 291 mA, 1ED3890M: 437 mA Driver input filter length 103 ns DESAT1 threshold voltage 9.18 V Leading edge blanking time 400 ns DESAT DESAT1 filter time 225 ns DESAT1 filter type Up-reset DESAT2 threshold, filter, and action Disabled configuration Fault clear source (RDYC or self clear time) RDYC Self clear time (not active, 400 µs, 1600 µs) Not active Fault/fault Fault-off mode (hard switch-off, soft-off, Hard switch-off clear TLTOff) Over-temperature warning action (warning or Warning fault off) Over-temperature warning level 140°C Datasheet 10 v2.0 2020-03-26 Document Outline Table of contents 1 Block diagram 2 Related products 3 Pin configuration and functionality 3.1 Pin configuration 3.2 Pin functionality 3.3 Configurable parameters via I2C 4 Functional description 4.1 Start-up and fault clearing 4.2 Supply 4.3 Input side logic 4.4 I2C bus 4.5 Operating states 4.6 Measurement 4.7 Monitoring 4.8 Desaturation protection 4.8.1 DESAT behavior 4.9 Gate driver output 4.9.1 Turn-on behavior 4.9.2 Turn-off and fault turn-off behavior 4.9.2.1 Hard switching turn-off 4.9.2.2 Two-level turn-off 4.9.2.3 Soft turn-off 4.9.3 Active shut-down 4.9.4 Active Miller clamp 4.10 Short circuit clamping 5 Electrical parameters 5.1 Absolute maximum ratings 5.2 Thermal parameters 5.3 Operating parameters 5.4 Electrical characteristics 5.4.1 Voltage supply 5.4.2 Logic input and output 5.4.3 Gate driver 5.4.4 Active Miller clamp 5.4.5 Dynamic characteristics 5.4.6 Desaturation protection 5.4.7 Two-level turn-off 5.4.8 Soft-off current source 5.4.9 Over-temperature protection 5.4.10 ADC measurement 6 Insulation characteristics 6.1 Certified according to VDE 0884-11 and IEC 60747-17 reinforced insulation (planned) 6.2 Recognized under UL 1577 (planned) 7 Package information Revision history Disclaimer
