Package Information. PowerPAK® 8 x 8 Case Outline. MILLIMETERS. INCHES. DIM. MIN. NOM. MAX. Notes
Línea de modelo para esta hoja de datos
Versión de texto del documento
Package Information
www.vishay.com Vishay Siliconix

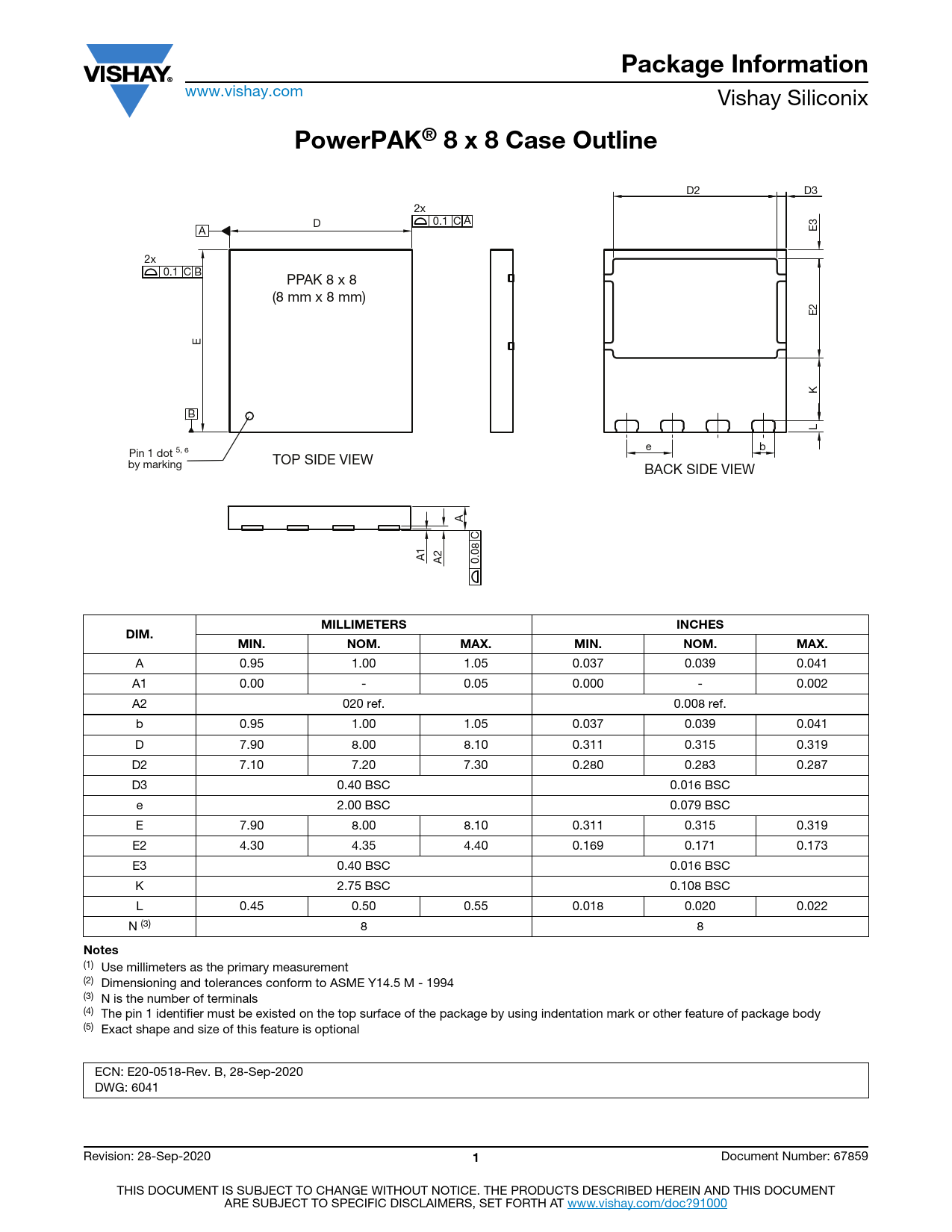

PowerPAK® 8 x 8 Case Outline
D2 D3 2x D 0.1 C A E3 A 2x 0.1 C B PPAK 8 x 8 (8 mm x 8 mm) E2 E K B L e b Pin 1 dot 5, 6 TOP SIDE VIEW by marking BACK SIDE VIEW A C A1 A2 0.08
MILLIMETERS INCHES DIM. MIN. NOM. MAX. MIN. NOM. MAX.
A 0.95 1.00 1.05 0.037 0.039 0.041 A1 0.00 - 0.05 0.000 - 0.002 A2 020 ref. 0.008 ref. b 0.95 1.00 1.05 0.037 0.039 0.041 D 7.90 8.00 8.10 0.311 0.315 0.319 D2 7.10 7.20 7.30 0.280 0.283 0.287 D3 0.40 BSC 0.016 BSC e 2.00 BSC 0.079 BSC E 7.90 8.00 8.10 0.311 0.315 0.319 E2 4.30 4.35 4.40 0.169 0.171 0.173 E3 0.40 BSC 0.016 BSC K 2.75 BSC 0.108 BSC L 0.45 0.50 0.55 0.018 0.020 0.022 N (3) 8 8
Notes
(1) Use millimeters as the primary measurement (2) Dimensioning and tolerances conform to ASME Y14.5 M - 1994 (3) N is the number of terminals (4) The pin 1 identifier must be existed on the top surface of the package by using indentation mark or other feature of package body (5) Exact shape and size of this feature is optional ECN: E20-0518-Rev. B, 28-Sep-2020 DWG: 6041 Revision: 28-Sep-2020
