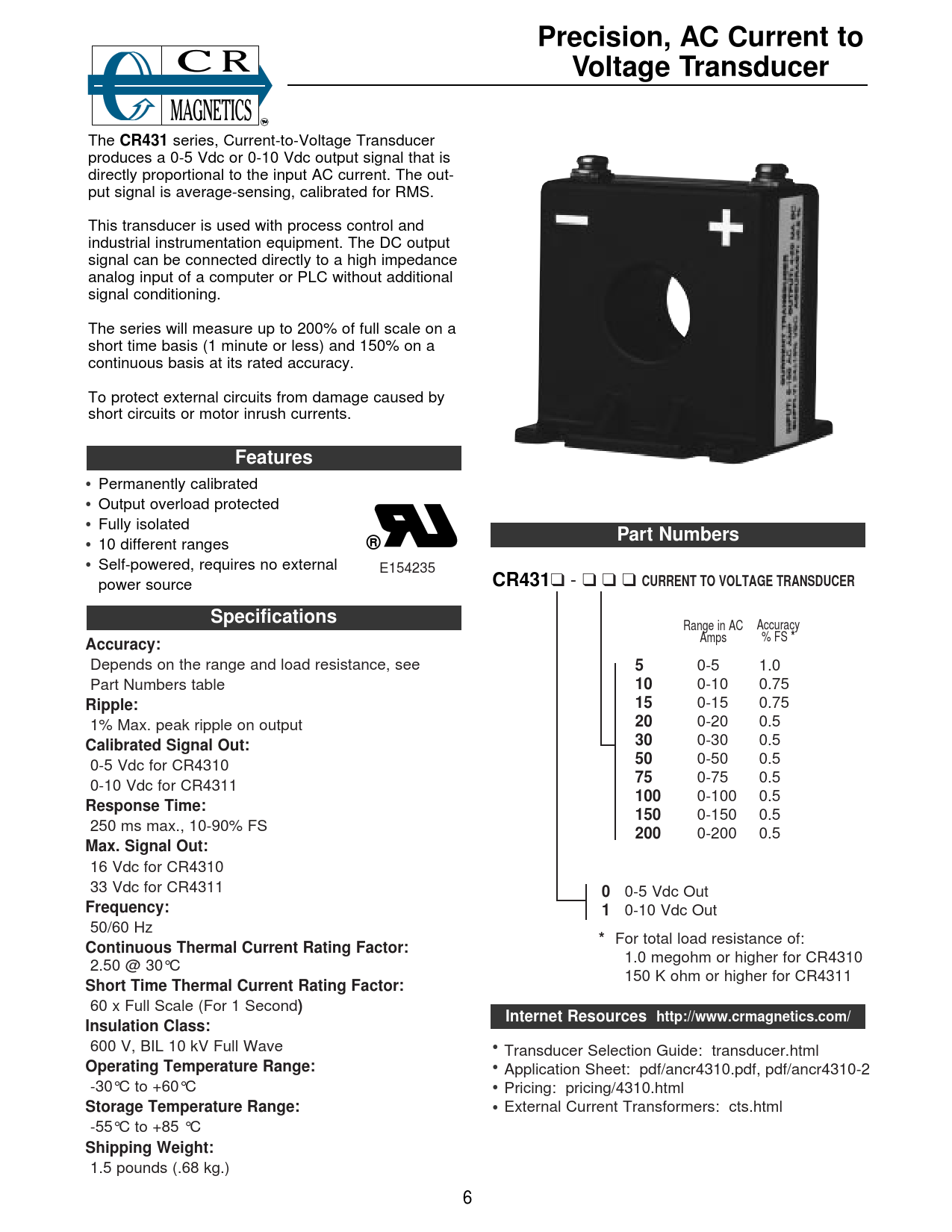

Precision, AC Current to Voltage Transducer
The
CR431
series, Current-to-Voltage Transducer produces a 0-5 Vdc or 0-10 Vdc output signal that is directly proportional to the input AC current. The out- put signal is average-sensing, calibrated for RMS. This transducer is used with process control and industrial instrumentation equipment. The DC output signal can be connected directly to a high impedance analog input of a computer or PLC without additional signal conditioning. The series will measure up to 200% of full scale on a short time basis (1 minute or less) and 150% on a continuous basis at its rated accuracy. To protect external circuits from damage caused by short circuits or motor inrush currents.
Features
• Permanently calibrated • Output overload protected • Fully isolated
Part Numbers
• 10 different ranges
®
• Self-powered, requires no external E154235 power source
CR431
❑ - ❑ ❑ ❑
CURRENT TO VOLTAGE TRANSDUCER Specifications
Range in AC Accuracy Amps % FS
* Accuracy:
Depends on the range and load resistance, see
5
0-5 1.0 Part Numbers table
10
0-10 0.75
Ripple: 15
0-15 0.75
20
0-20 0.5 1% Max. peak ripple on output
30
0-30 0.5
Calibrated Signal Out: 50
0-50 0.5 0-5 Vdc for CR4310
75
0-75 0.5 0-10 Vdc for CR4311
100
0-100 0.5
Response Time: 150
0-150 0.5 250 ms max., 10-90% FS
200
0-200 0.5
Max. Signal Out:
16 Vdc for CR4310 33 Vdc for CR4311
0
0-5 Vdc Out
Frequency: 1
0-10 Vdc Out 50/60 Hz
*
For total load resistance of:
Continuous Thermal Current Rating Factor:
1.0 megohm or higher for CR4310 2.50 @ 30°C 150 K ohm or higher for CR4311
Short Time Thermal Current Rating Factor:
60 x Full Scale (For 1 Second
) Internet Resources http://www.crmagnetics.com/ Insulation Class:
600 V, BIL 10 kV Full Wave • Transducer Selection Guide: transducer.html
Operating Temperature Range:
• Application Sheet: pdf/ancr4310.pdf, pdf/ancr4310-2 -30°C to +60°C • Pricing: pricing/4310.html
Storage Temperature Range:
• External Current Transformers: cts.html -55°C to +85 °C
Shipping Weight:
1.5 pounds (.68 kg.) 6
