2-Wire Current Transmitter. 4-20 mA Output. Application Notes. LOOP CURRENT OUT. FULL-SCALE INPUT CURRENT. Case Style 2
Línea de modelo para esta hoja de datos
Versión de texto del documento

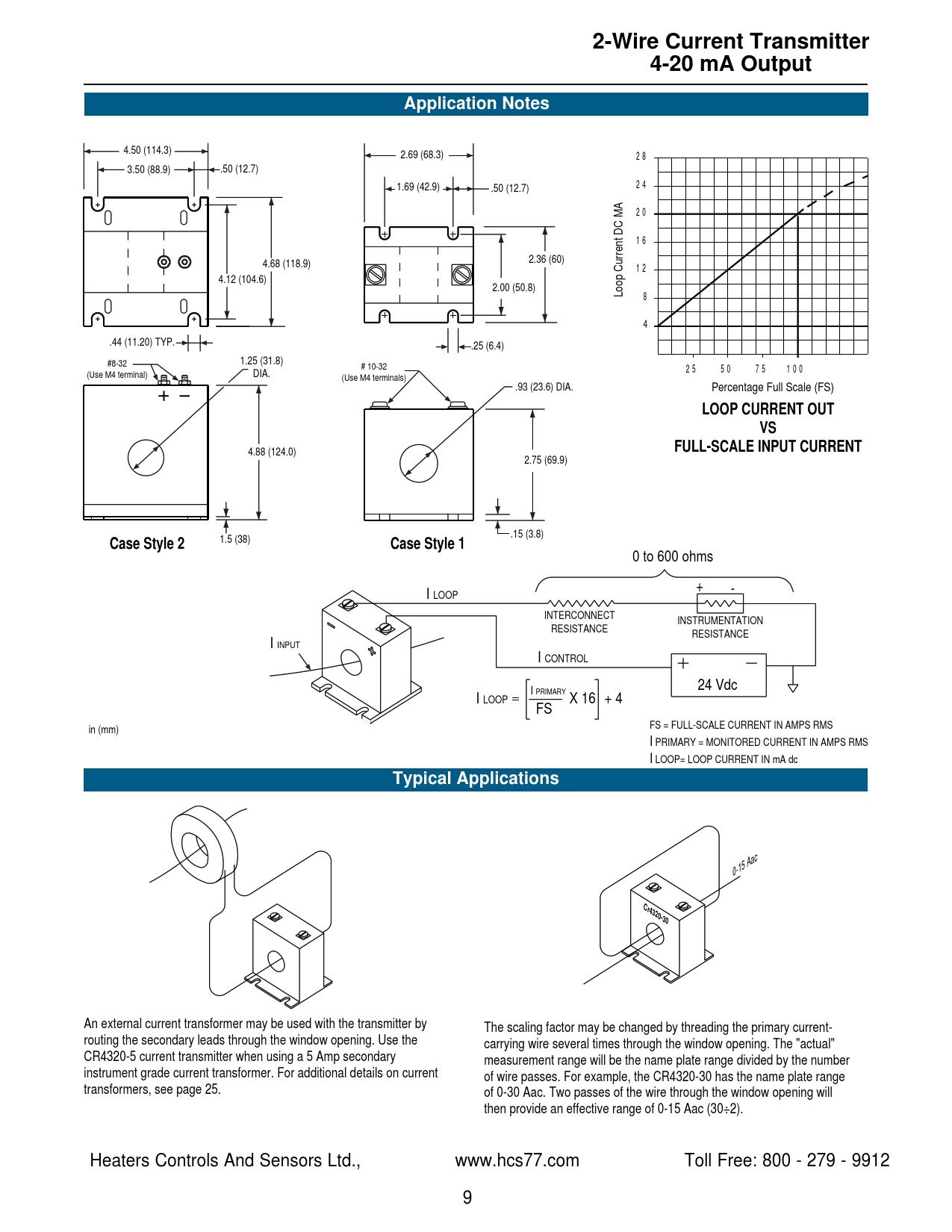

2-Wire Current Transmitter 4-20 mA Output Application Notes
4.50 (114.3) 2.69 (68.3) 2 8 3.50 (88.9) .50 (12.7) 2 4 1.69 (42.9) .50 (12.7) 2 0 1 6 2.36 (60) 4.68 (118.9) 1 2 4.12 (104.6) 2.00 (50.8) Loop Current DC MA 8 4 .44 (11.20) TYP. .25 (6.4) #8-32 1.25 (31.8) # 10-32 2 5 5 0 7 5 1 0 0 (Use M4 terminal) DIA. (Use M4 terminals) .93 (23.6) DIA. Percentage Full Scale (FS)
LOOP CURRENT OUT VS
4.88 (124.0)
FULL-SCALE INPUT CURRENT
2.75 (69.9) .15 (3.8) 1.5 (38)
Case Style 2 Case Style 1
0 to 600 ohms + - I LOOP INTERCONNECT INSTRUMENTATION RESISTANCE RESISTANCE I INPUT I CONTROL 24 Vdc I PRIMARY I LOOP X 16 + 4 FS in (mm) FS = FULL-SCALE CURRENT IN AMPS RMS I PRIMARY = MONITORED CURRENT IN AMPS RMS I LOOP= LOOP CURRENT IN mA dc
Typical Applications
0-15 Aac
Cr4320-30
An external current transformer may be used with the transmitter by The scaling factor may be changed by threading the primary current- routing the secondary leads through the window opening. Use the carrying wire several times through the window opening. The "actual" CR4320-5 current transmitter when using a 5 Amp secondary measurement range will be the name plate range divided by the number instrument grade current transformer. For additional details on current of wire passes. For example, the CR4320-30 has the name plate range transformers, see page 25. of 0-30 Aac. Two passes of the wire through the window opening will then provide an effective range of 0-15 Aac (30÷2). Heaters Controls And Sensors Ltd., www.hcs77.com Toll Free: 800 - 279 - 9912 9
