MAX4400–MAX4403 Single/Dual/Quad, Low-Cost, Single-Supply, Rail-to-Rail Op Amps with Shutdown

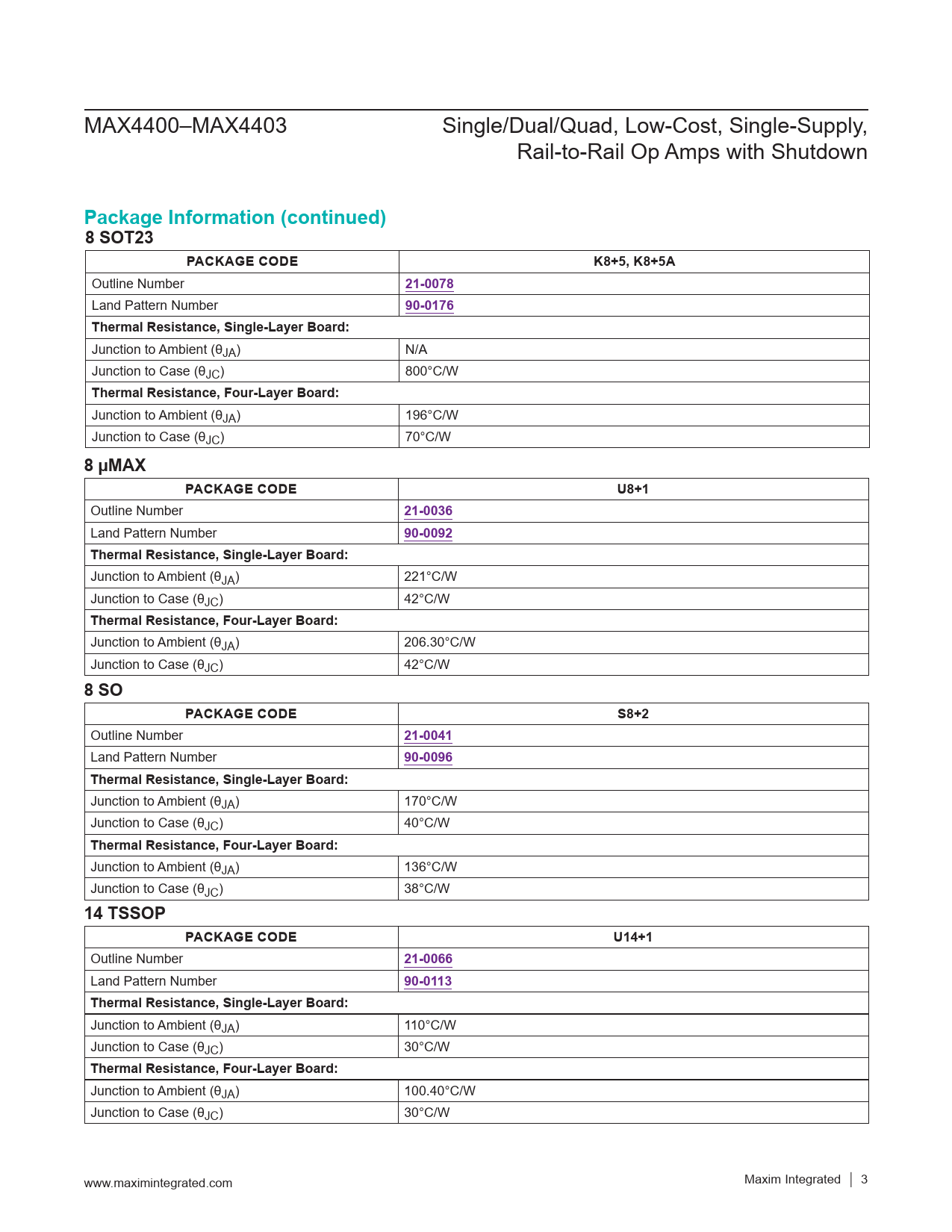

Package Information (continued) 8 SOT23 PACKAGE CODE K8+5, K8+5A
Outline Number
21-0078
Land Pattern Number
90-0176 Thermal Resistance, Single-Layer Board:
Junction to Ambient (θJA) N/A Junction to Case (θJC) 800°C/W
Thermal Resistance, Four-Layer Board:
Junction to Ambient (θJA) 196°C/W Junction to Case (θJC) 70°C/W
8 µMAX PACKAGE CODE U8+1
Outline Number
21-00 36
Land Pattern Number
90-0 092 Thermal Resistance, Single-Layer Board:
Junction to Ambient (θJA) 221°C/W Junction to Case (θJC) 42°C/W
Thermal Resistance, Four-Layer Board:
Junction to Ambient (θJA) 206.30°C/W Junction to Case (θJC) 42°C/W
8 SO PACKAGE CODE S8+2
Outline Number
21-00 41
Land Pattern Number
90-0 096 Thermal Resistance, Single-Layer Board:
Junction to Ambient (θJA) 170°C/W Junction to Case (θJC) 40°C/W
Thermal Resistance, Four-Layer Board:
Junction to Ambient (θJA) 136°C/W Junction to Case (θJC) 38°C/W
14 TSSOP PACKAGE CODE U14+1
Outline Number
21-00 66
Land Pattern Number
90-0113 Thermal Resistance, Single-Layer Board:
Junction to Ambient (θJA) 110°C/W Junction to Case (θJC) 30°C/W
Thermal Resistance, Four-Layer Board:
Junction to Ambient (θJA) 100.40°C/W Junction to Case (θJC) 30°C/W www.maximintegrated.com Maxim Integrated │ 3
