Datasheet OP37 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Low Noise, Precision, High Speed Operational Amplifier (AVCL≥5) |
| Páginas / Página | 16 / 2 — OP37. ABSOLUTE MAXIMUM RATINGS4. ORDERING GUIDE. TA = 25. Operating. VOS … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 575 Kb |
| Idioma del documento | Inglés |
OP37. ABSOLUTE MAXIMUM RATINGS4. ORDERING GUIDE. TA = 25. Operating. VOS MAX. CerDIP. Plastic. Temperature. 8-Lead. Range. Package Type. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento

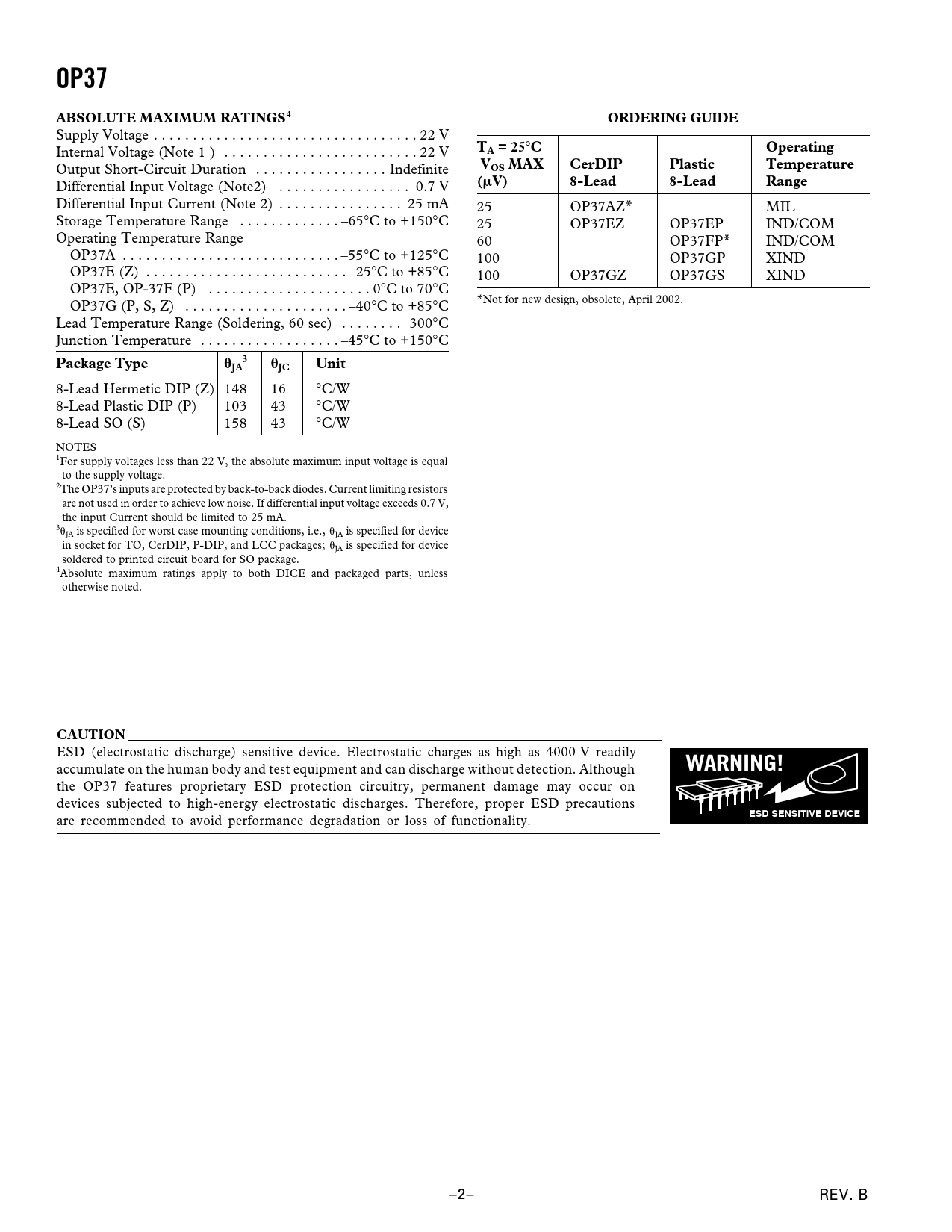

OP37 ABSOLUTE MAXIMUM RATINGS4 ORDERING GUIDE
Supply Voltage . 22 V Internal Voltage (Note 1 ) . 22 V
TA = 25
∞
C Operating
Output Short-Circuit Duration . Indefinite
VOS MAX CerDIP Plastic Temperature
Differential Input Voltage (Note2) . 0.7 V
( V) 8-Lead 8-Lead Range
Differential Input Current (Note 2) . 25 mA 25 OP37AZ* MIL Storage Temperature Range . –65∞C to +150∞C 25 OP37EZ OP37EP IND/COM Operating Temperature Range 60 OP37FP* IND/COM OP37A . –55∞C to +125∞C 100 OP37GP XIND OP37E (Z) . –25∞C to +85∞C 100 OP37GZ OP37GS XIND OP37E, OP-37F (P) . 0∞C to 70∞C *Not for new design, obsolete, April 2002. OP37G (P, S, Z) . –40∞C to +85∞C Lead Temperature Range (Soldering, 60 sec) . 300∞C Junction Temperature . –45∞C to +150∞C
Package Type 3 JA JC Unit
8-Lead Hermetic DIP (Z) 148 16 ∞C/W 8-Lead Plastic DIP (P) 103 43 ∞C/W 8-Lead SO (S) 158 43 ∞C/W NOTES 1For supply voltages less than 22 V, the absolute maximum input voltage is equal to the supply voltage. 2The OP37’s inputs are protected by back-to-back diodes. Current limiting resistors are not used in order to achieve low noise. If differential input voltage exceeds 0.7 V, the input Current should be limited to 25 mA. 3JA is specified for worst case mounting conditions, i.e., JA is specified for device in socket for TO, CerDIP, P-DIP, and LCC packages; JA is specified for device soldered to printed circuit board for SO package. 4Absolute maximum ratings apply to both DICE and packaged parts, unless otherwise noted.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the OP37 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions
ESD SENSITIVE DEVICE
are recommended to avoid performance degradation or loss of functionality. –2– REV. B Document Outline FEATURES GENERAL DESCRIPTION PIN CONNECTIONS SIMPLIFIED SCHEMATIC ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE SPECIFICATIONS BINDING DIAGRAM Wafer Test Limits Typical Electrical Characteristics Typical Performance Characteristics APPLICATIONS INFORMATION Offset Voltage Adjustment Noise Measurements Optimizing Linearity Instrumentation Amplifier Comments on Noise Audio Applications OUTLINE DIMENSIONS Revision History
