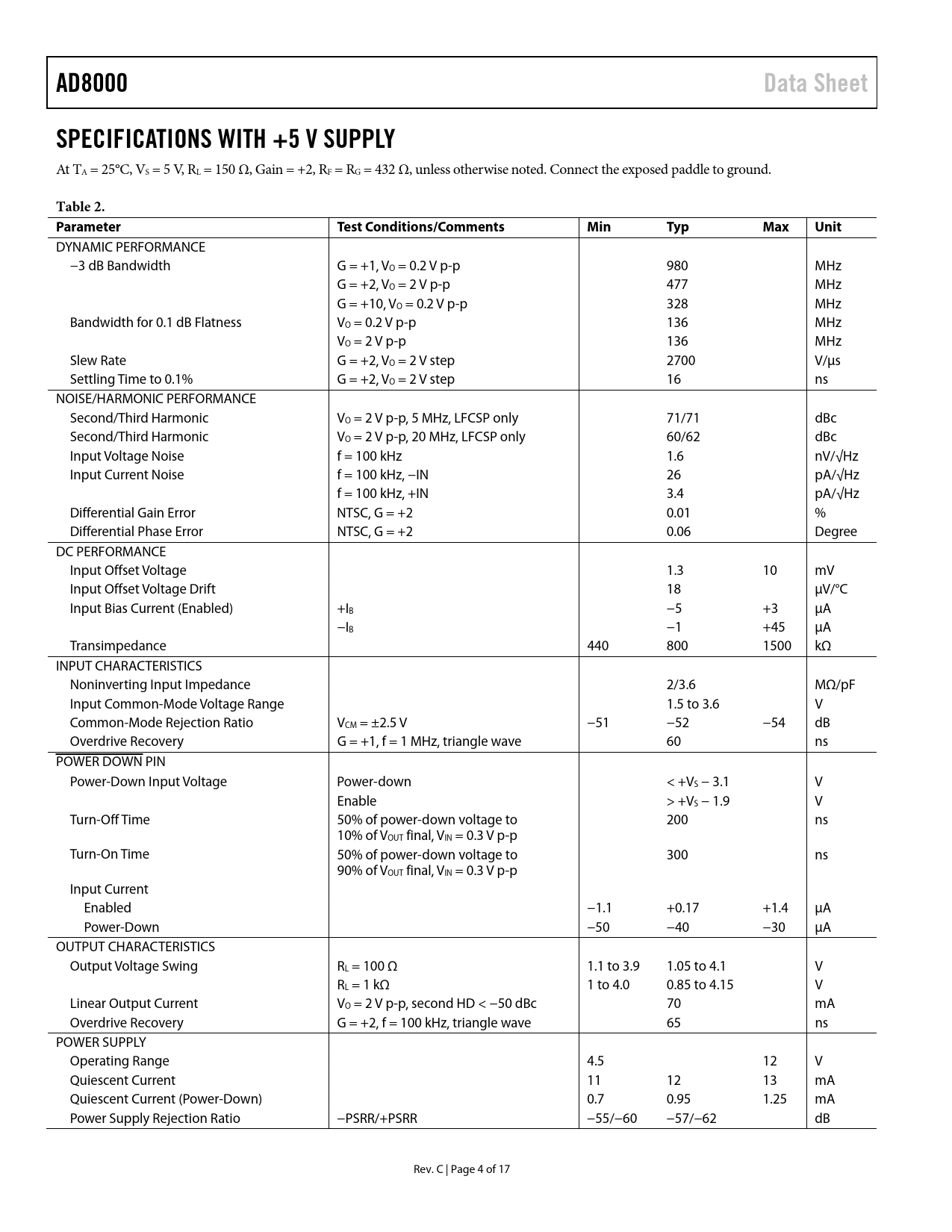

AD8000 Data Sheet SPECIFICATIONS WITH +5 V SUPPLY
At TA = 25°C, VS = 5 V, RL = 150 Ω, Gain = +2, RF = RG = 432 Ω, unless otherwise noted. Connect the exposed paddle to ground.
Table 2. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth G = +1, VO = 0.2 V p-p 980 MHz G = +2, VO = 2 V p-p 477 MHz G = +10, VO = 0.2 V p-p 328 MHz Bandwidth for 0.1 dB Flatness VO = 0.2 V p-p 136 MHz VO = 2 V p-p 136 MHz Slew Rate G = +2, VO = 2 V step 2700 V/μs Settling Time to 0.1% G = +2, VO = 2 V step 16 ns NOISE/HARMONIC PERFORMANCE Second/Third Harmonic VO = 2 V p-p, 5 MHz, LFCSP only 71/71 dBc Second/Third Harmonic VO = 2 V p-p, 20 MHz, LFCSP only 60/62 dBc Input Voltage Noise f = 100 kHz 1.6 nV/√Hz Input Current Noise f = 100 kHz, −IN 26 pA/√Hz f = 100 kHz, +IN 3.4 pA/√Hz Differential Gain Error NTSC, G = +2 0.01 % Differential Phase Error NTSC, G = +2 0.06 Degree DC PERFORMANCE Input Offset Voltage 1.3 10 mV Input Offset Voltage Drift 18 μV/°C Input Bias Current (Enabled) +IB −5 +3 μA −IB −1 +45 μA Transimpedance 440 800 1500 kΩ INPUT CHARACTERISTICS Noninverting Input Impedance 2/3.6 MΩ/pF Input Common-Mode Voltage Range 1.5 to 3.6 V Common-Mode Rejection Ratio VCM = ±2.5 V −51 −52 −54 dB Overdrive Recovery G = +1, f = 1 MHz, triangle wave 60 ns POWER DOWN PIN Power-Down Input Voltage Power-down < +VS − 3.1 V Enable > +VS − 1.9 V Turn-Off Time 50% of power-down voltage to 200 ns 10% of VOUT final, VIN = 0.3 V p-p Turn-On Time 50% of power-down voltage to 300 ns 90% of VOUT final, VIN = 0.3 V p-p Input Current Enabled −1.1 +0.17 +1.4 μA Power-Down −50 −40 −30 μA OUTPUT CHARACTERISTICS Output Voltage Swing RL = 100 Ω 1.1 to 3.9 1.05 to 4.1 V RL = 1 kΩ 1 to 4.0 0.85 to 4.15 V Linear Output Current VO = 2 V p-p, second HD < −50 dBc 70 mA Overdrive Recovery G = +2, f = 100 kHz, triangle wave 65 ns POWER SUPPLY Operating Range 4.5 12 V Quiescent Current 11 12 13 mA Quiescent Current (Power-Down) 0.7 0.95 1.25 mA Power Supply Rejection Ratio −PSRR/+PSRR −55/−60 −57/−62 dB Rev. C | Page 4 of 17 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION CONNECTION DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS WITH ±5 V SUPPLY SPECIFICATIONS WITH +5 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS APPLICATIONS INFORMATION CIRCUIT CONFIGURATIONS VIDEO LINE DRIVER LOW DISTORTION PINOUT EXPOSED PADDLE PRINTED CIRCUIT BOARD LAYOUT SIGNAL ROUTING POWER SUPPLY BYPASSING GROUNDING OUTLINE DIMENSIONS ORDERING GUIDE
