Datasheet AD8000 (Analog Devices)

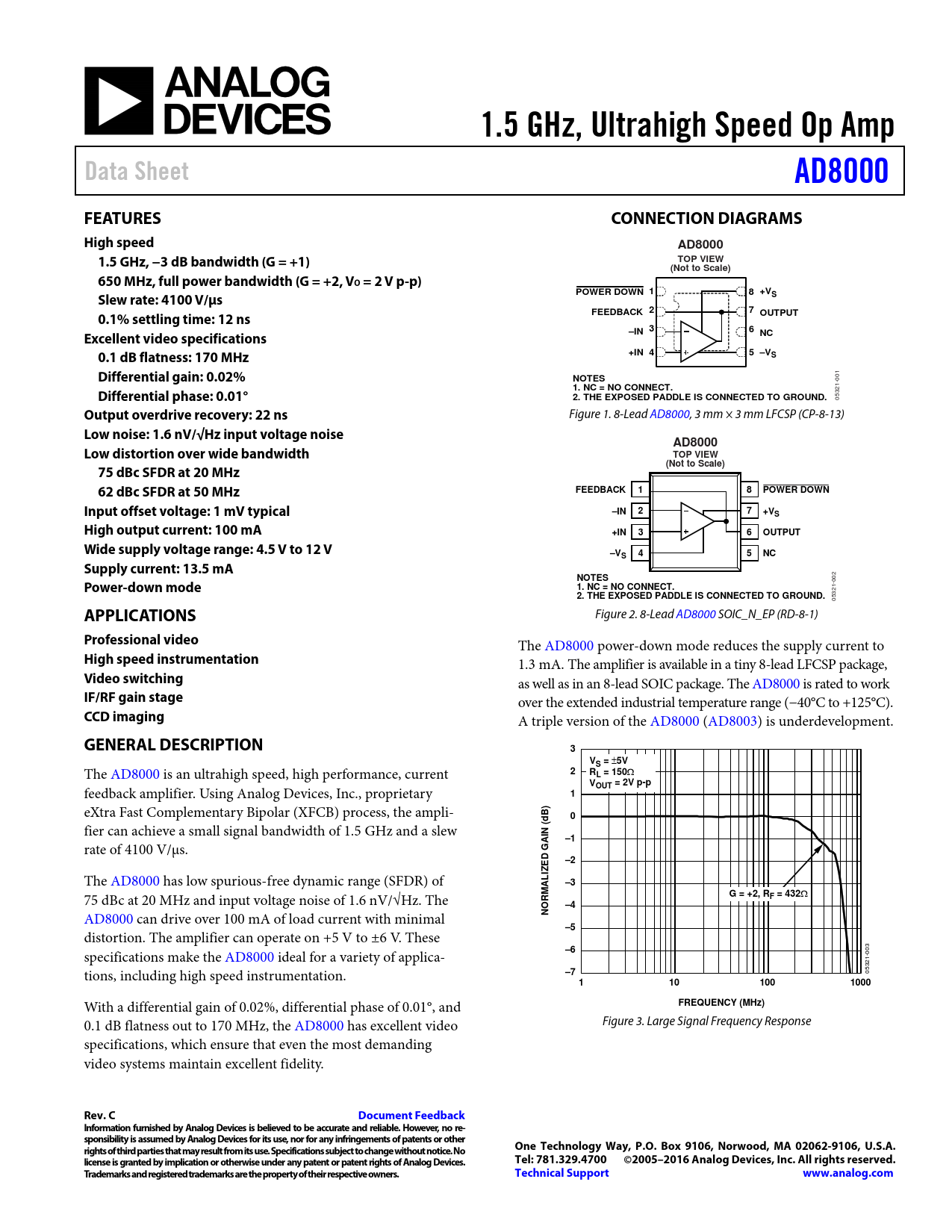

1.5 GHz, Ultrahigh Speed Op Amp Data Sheet AD8000 FEATURES CONNECTION DIAGRAMS High speed AD8000 1.5 GHz, −3 dB bandwidth (G = +1) TOP VIEW (Not to Scale) 650 MHz, full power bandwidth (G = +2, VO = 2 V p-p) POWER DOWN 1 8 +V Slew rate: 4100 V/μs S FEEDBACK 2 7 OUTPUT 0.1% settling time: 12 ns –IN 3 6 Excellent video specifications NC 0.1 dB flatness: 170 MHz +IN 4 5 –VS Differential gain: 0.02%
1
NOTES
-00 21
1. NC = NO CONNECT. Differential phase: 0.01° 2. THE EXPOSED PADDLE IS CONNECTED TO GROUND.
053
Output overdrive recovery: 22 ns
Figure 1. 8-Lead AD8000, 3 mm × 3 mm LFCSP (CP-8-13)
Low noise: 1.6 nV/√Hz input voltage noise AD8000 Low distortion over wide bandwidth TOP VIEW (Not to Scale) 75 dBc SFDR at 20 MHz 62 dBc SFDR at 50 MHz FEEDBACK 1 8 POWER DOWN Input offset voltage: 1 mV typical –IN 2 7 +VS High output current: 100 mA +IN 3 6 OUTPUT Wide supply voltage range: 4.5 V to 12 V –VS 4 5 NC Supply current: 13.5 mA
02
NOTES
-0
Power-down mode 1. NC = NO CONNECT.
5321
2. THE EXPOSED PADDLE IS CONNECTED TO GROUND.
0
APPLICATIONS
Figure 2. 8-Lead AD8000 SOIC_N_EP (RD-8-1)
Professional video
The AD8000 power-down mode reduces the supply current to
High speed instrumentation
1.3 mA. The amplifier is available in a tiny 8-lead LFCSP package,
Video switching
as well as in an 8-lead SOIC package. The AD8000 is rated to work
IF/RF gain stage
over the extended industrial temperature range (−40°C to +125°C).
CCD imaging
A triple version of the AD8000 (AD8003) is underdevelopment.
GENERAL DESCRIPTION 3 VS =

5V
The AD8000 is an ultrahigh speed, high performance, current
2 RL = 150 VOUT = 2V p-p
feedback amplifier. Using Analog Devices, Inc., proprietary
1
eXtra Fast Complementary Bipolar (XFCB) process, the ampli-
0
fier can achieve a small signal bandwidth of 1.5 GHz and a slew
–1
rate of 4100 V/μs.
GAIN (dB) D –2
The AD8000 has low spurious-free dynamic range (SFDR) of
–3 G = +2, R
75 dBc at 20 MHz and input voltage noise of 1.6 nV/√Hz. The
F = 432 –4 NORMALIZE
AD8000 can drive over 100 mA of load current with minimal
–5
distortion. The amplifier can operate on +5 V to ±6 V. These
–6
specifications make the AD8000 ideal for a variety of applica- tions, including high speed instrumentation.
–7
05321-003
1 10 100 1000
With a differential gain of 0.02%, differential phase of 0.01°, and
FREQUENCY (MHz)
0.1 dB flatness out to 170 MHz, the AD8000 has excellent video Figure 3. Large Signal Frequency Response specifications, which ensure that even the most demanding video systems maintain excellent fidelity.
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no re- sponsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2005–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
