VEMD4110X01
www.vishay.com Vishay Semiconductors

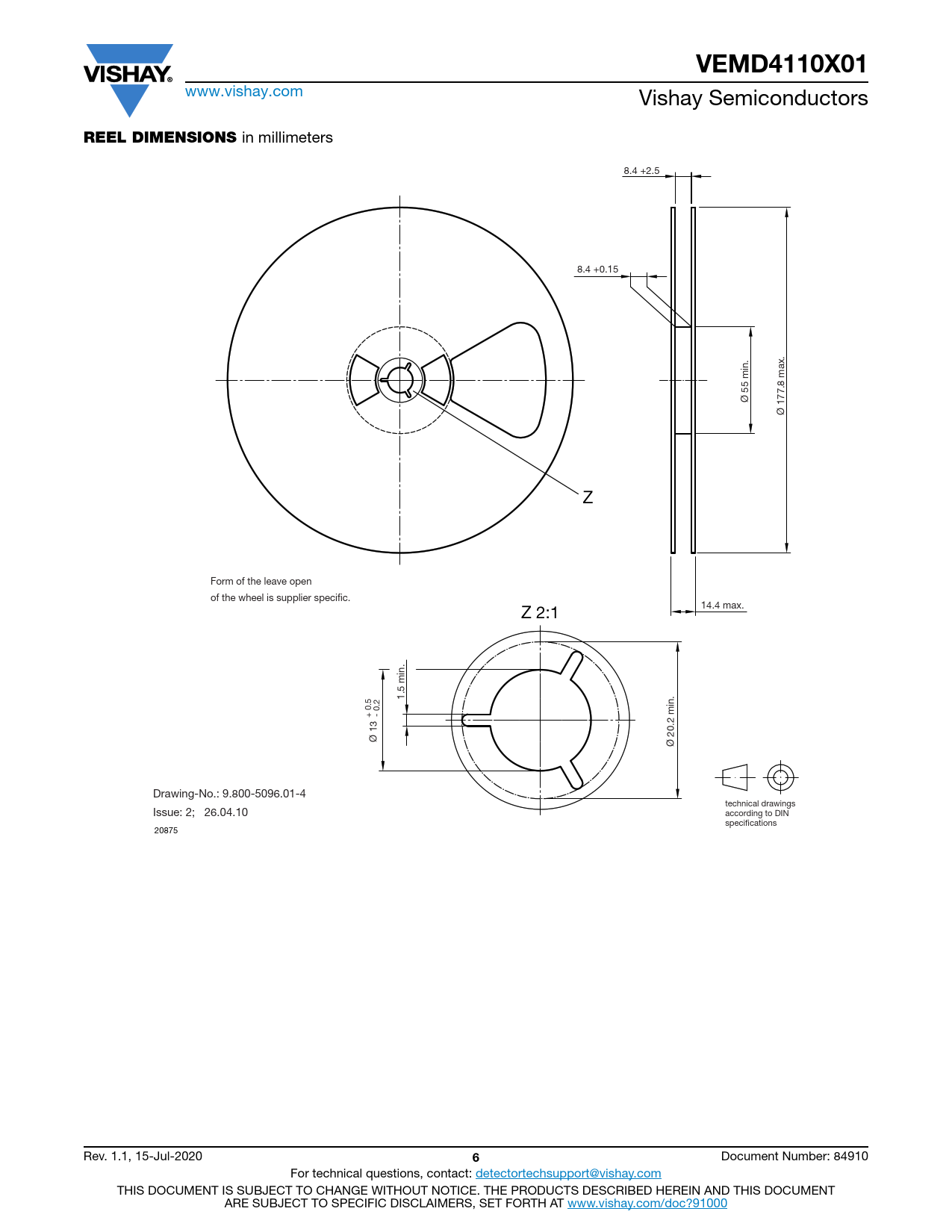

REEL DIMENSIONS
in millimeters 8.4 +2.5 8.4 +0.15 Ø 55 min. Ø 177.8 max. Z Form of the leave open of the wheel is supplier specific. 14.4 max. Z 2:1 1.5 min. + 0.5 - 0.2 Ø 13 Ø 20.2 min. Drawing-No.: 9.800-5096.01-4 technical drawings Issue: 2; 26.04.10 according to DIN specifications 20875 Rev. 1.1, 15-Jul-2020
