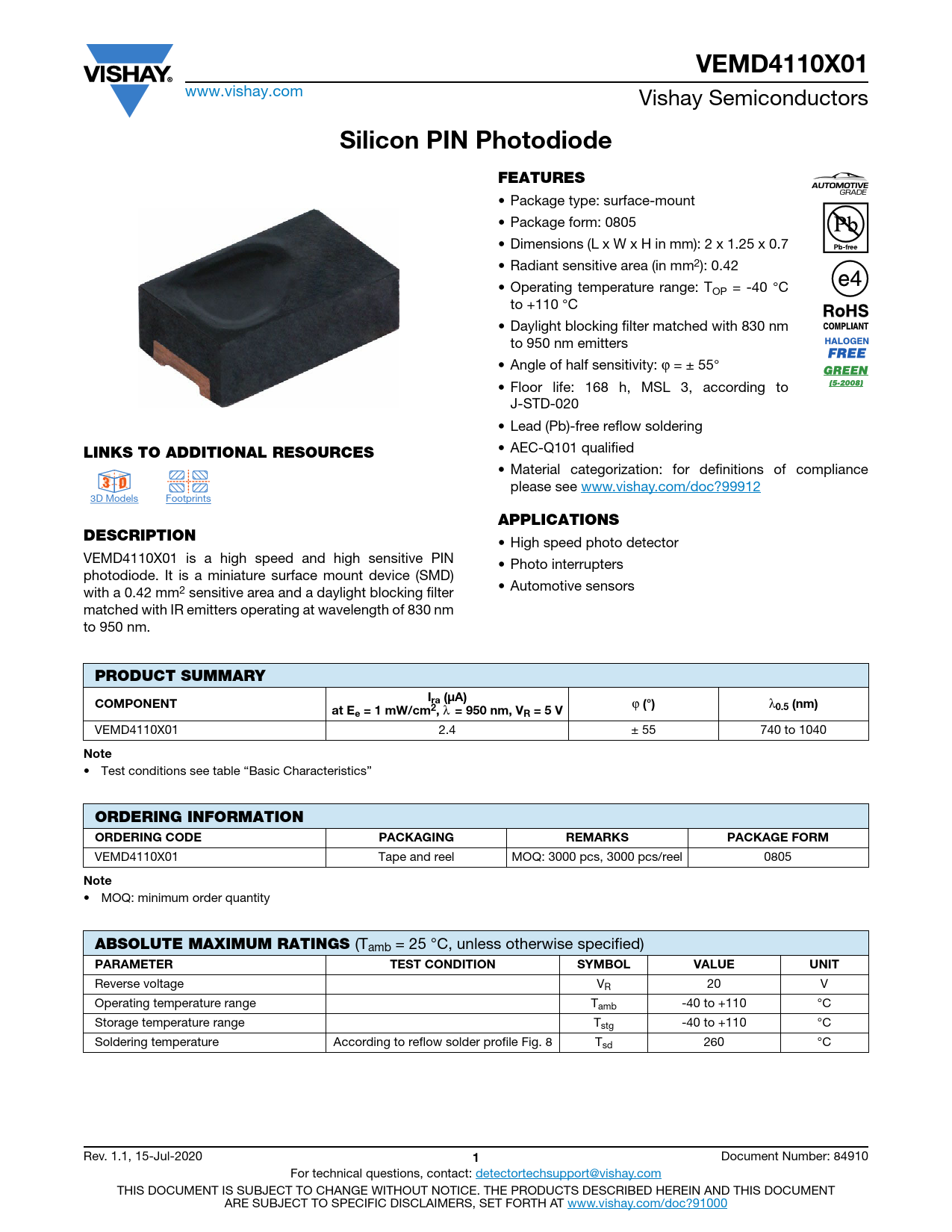

VEMD4110X01 www.vishay.com Vishay Semiconductors Silicon PIN PhotodiodeFEATURES • Package type: surface-mount • Package form: 0805 • Dimensions (L x W x H in mm): 2 x 1.25 x 0.7 • Radiant sensitive area (in mm2): 0.42 • Operating temperature range: TOP = -40 °C to +110 °C • Daylight blocking filter matched with 830 nm to 950 nm emitters • Angle of half sensitivity: ϕ = ± 55° • Floor life: 168 h, MSL 3, according to J-STD-020 • Lead (Pb)-free reflow soldering LINKS TO ADDITIONAL RESOURCES • AEC-Q101 qualified • Material categorization: for definitions of compliance D 33 D please see www.vishay.com/doc?99912 3D Models Footprints APPLICATIONSDESCRIPTION • High speed photo detector VEMD4110X01 is a high speed and high sensitive PIN • Photo interrupters photodiode. It is a miniature surface mount device (SMD) • Automotive sensors with a 0.42 mm2 sensitive area and a daylight blocking filter matched with IR emitters operating at wavelength of 830 nm to 950 nm. PRODUCT SUMMARYICOMPONENTra (μA) ϕ (°) λ at E0.5 (nm)e = 1 mW/cm2, λ = 950 nm, VR = 5 V VEMD4110X01 2.4 ± 55 740 to 1040 Note • Test conditions see table “Basic Characteristics” ORDERING INFORMATION ORDERING CODEPACKAGINGREMARKSPACKAGE FORM VEMD4110X01 Tape and reel MOQ: 3000 pcs, 3000 pcs/reel 0805 Note • MOQ: minimum order quantity ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETERTEST CONDITIONSYMBOLVALUEUNIT Reverse voltage VR 20 V Operating temperature range Tamb -40 to +110 °C Storage temperature range Tstg -40 to +110 °C Soldering temperature According to reflow solder profile Fig. 8 Tsd 260 °C Rev. 1.1, 15-Jul-2020 1 Document Number: 84910 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
