Datasheet MAX1086, MAX1087, MAX1088, MAX1089 (Maxim) - 2
| Fabricante | Maxim |
| Descripción | 150ksps, 10-Bit, 2-Channel Single-Ended, and 1-Channel True-Differential ADCs in SOT23 and TDFN |
| Páginas / Página | 15 / 2 — 150ksps, 10-Bit, 2-Channel Single-Ended, and 1-Channel True-Differential … |
| Formato / tamaño de archivo | PDF / 268 Kb |
| Idioma del documento | Inglés |

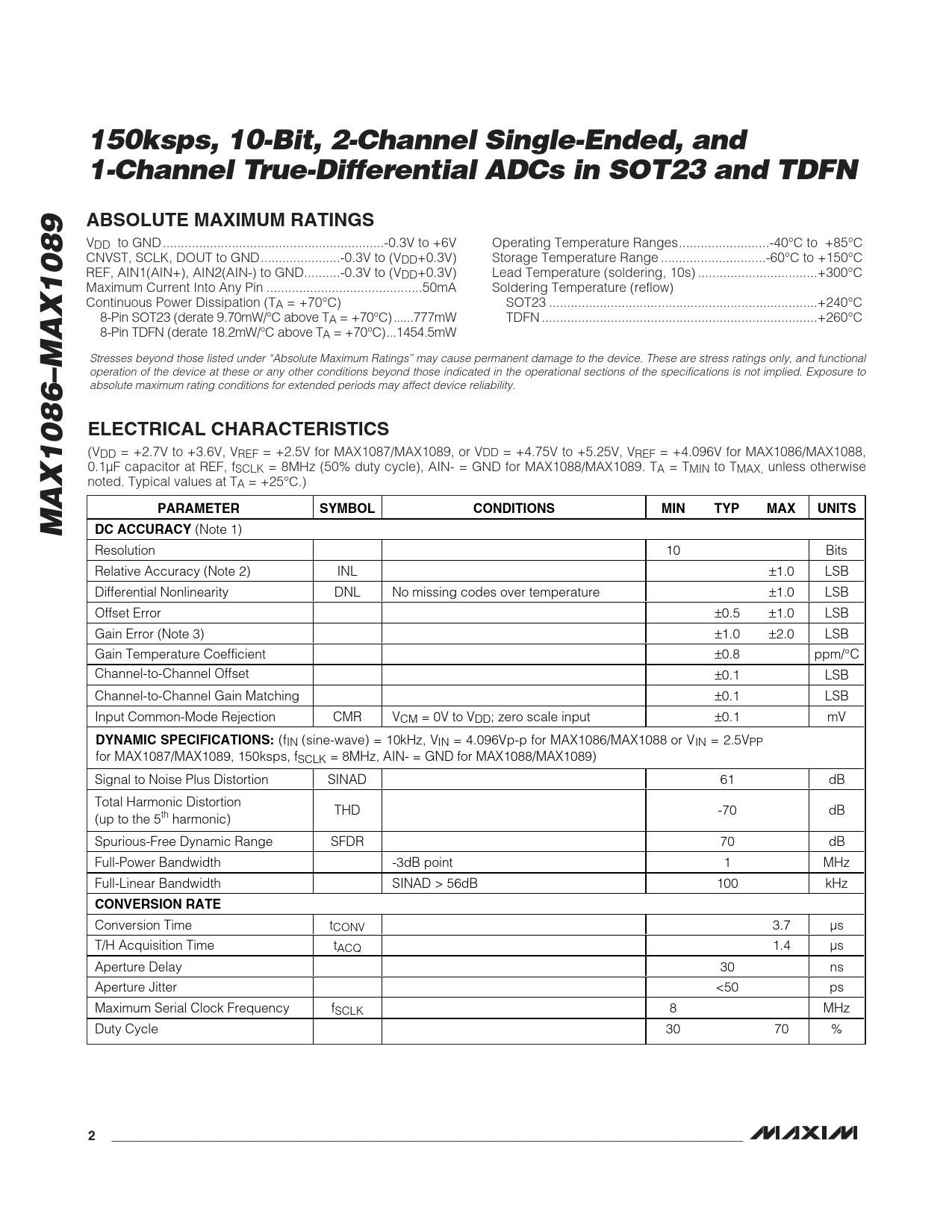

150ksps, 10-Bit, 2-Channel Single-Ended, and 1-Channel True-Differential ADCs in SOT23 and TDFN. ABSOLUTE MAXIMUM RATINGS
Línea de modelo para esta hoja de datos
MAX6025
Versión de texto del documento
150ksps, 10-Bit, 2-Channel Single-Ended, and 1-Channel True-Differential ADCs in SOT23 and TDFN ABSOLUTE MAXIMUM RATINGS
VDD to GND ...-0.3V to +6V Operating Temperature Ranges...-40°C to +85°C CNVST, SCLK, DOUT to GND..-0.3V to (VDD+0.3V) Storage Temperature Range ...-60°C to +150°C REF, AIN1(AIN+), AIN2(AIN-) to GND..-0.3V to (VDD+0.3V) Lead Temperature (soldering, 10s) ...+300°C Maximum Current Into Any Pin ...50mA Soldering Temperature (reflow) Continuous Power Dissipation (TA = +70°C) SOT23 ..+240°C 8-Pin SOT23 (derate 9.70mW/°C above TA = +70°C) ..777mW TDFN ..+260°C 8-Pin TDFN (derate 18.2mW/°C above TA = +70°C)...1454.5mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VDD = +2.7V to +3.6V, VREF = +2.5V for MAX1087/MAX1089, or VDD = +4.75V to +5.25V, VREF = +4.096V for MAX1086/MAX1088, 0.1µF capacitor at REF, fSCLK = 8MHz (50% duty cycle), AIN- = GND for MAX1088/MAX1089. TA = TMIN to TMAX, unless otherwise noted. Typical values at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS MAX1086–MAX1089 DC ACCURACY
(Note 1) Resolution 10 Bits Relative Accuracy (Note 2) INL ±1.0 LSB Differential Nonlinearity DNL No missing codes over temperature ±1.0 LSB Offset Error ±0.5 ±1.0 LSB Gain Error (Note 3) ±1.0 ±2.0 LSB Gain Temperature Coefficient ±0.8 ppm/°C Channel-to-Channel Offset ±0.1 LSB Channel-to-Channel Gain Matching ±0.1 LSB Input Common-Mode Rejection CMR VCM = 0V to VDD; zero scale input ±0.1 mV
DYNAMIC SPECIFICATIONS:
(fIN (sine-wave) = 10kHz, VIN = 4.096Vp-p for MAX1086/MAX1088 or VIN = 2.5VPP for MAX1087/MAX1089, 150ksps, fSCLK = 8MHz, AIN- = GND for MAX1088/MAX1089) Signal to Noise Plus Distortion SINAD 61 dB Total Harmonic Distortion THD -70 dB (up to the 5th harmonic) Spurious-Free Dynamic Range SFDR 70 dB Full-Power Bandwidth -3dB point 1 MHz Full-Linear Bandwidth SINAD > 56dB 100 kHz
CONVERSION RATE
Conversion Time tCONV 3.7 µs T/H Acquisition Time tACQ 1.4 µs Aperture Delay 30 ns Aperture Jitter <50 ps Maximum Serial Clock Frequency fSCLK 8 MHz Duty Cycle 30 70 %
