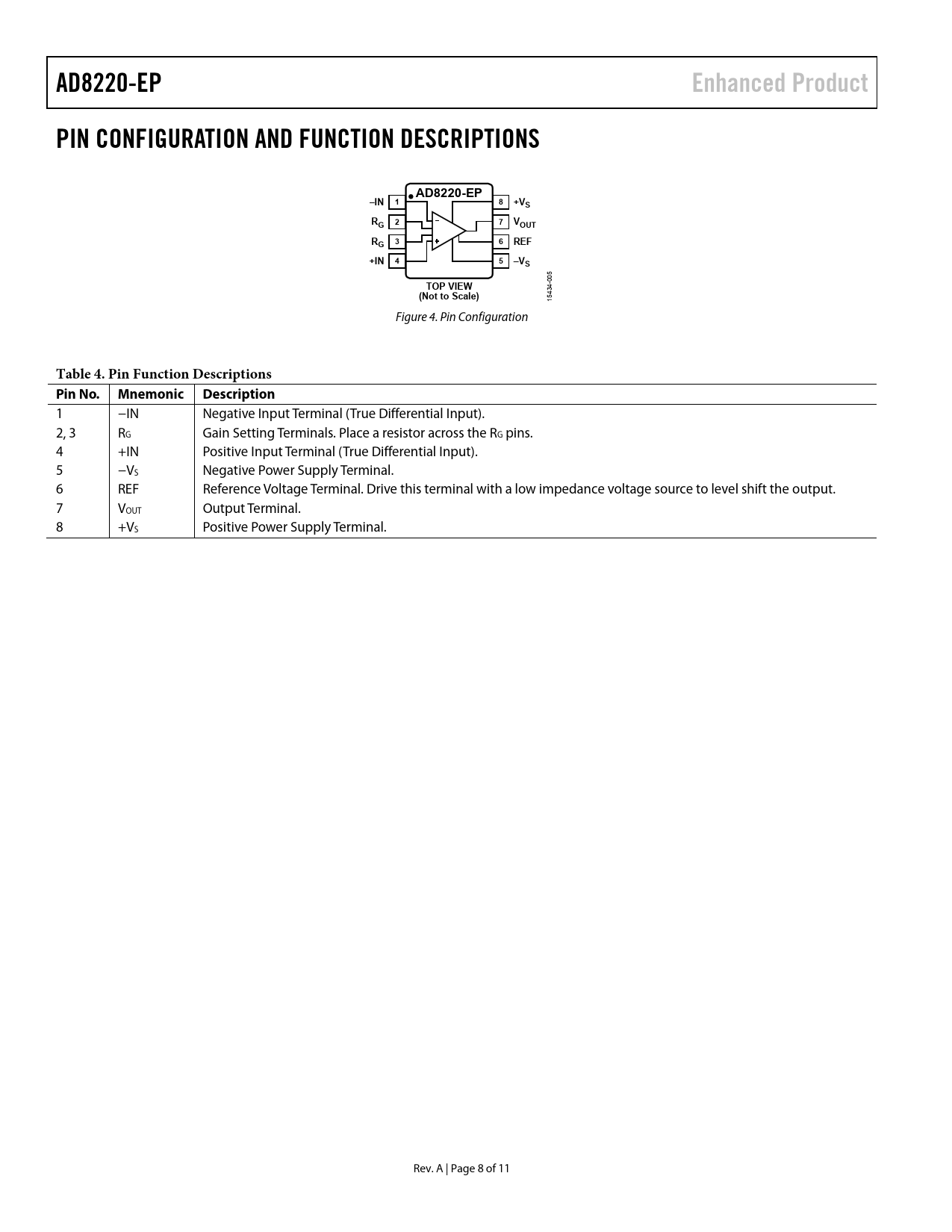

AD8220-EP. Enhanced Product. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. 8 +VS. RG 2. 7 VOUT. RG 3. 6 REF. +IN 4. 5 –VS. TOP VIEW
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD8220-EP Enhanced Product PIN CONFIGURATION AND FUNCTION DESCRIPTIONS AD8220-EP –IN 1 8 +VS RG 2 7 VOUT RG 3 6 REF +IN 4 5 –VS
005
TOP VIEW (Not to Scale)
15434- Figure 4. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input Terminal (True Differential Input). 2, 3 RG Gain Setting Terminals. Place a resistor across the RG pins. 4 +IN Positive Input Terminal (True Differential Input). 5 −VS Negative Power Supply Terminal. 6 REF Reference Voltage Terminal. Drive this terminal with a low impedance voltage source to level shift the output. 7 VOUT Output Terminal. 8 +VS Positive Power Supply Terminal. Rev. A | Page 8 of 11 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
