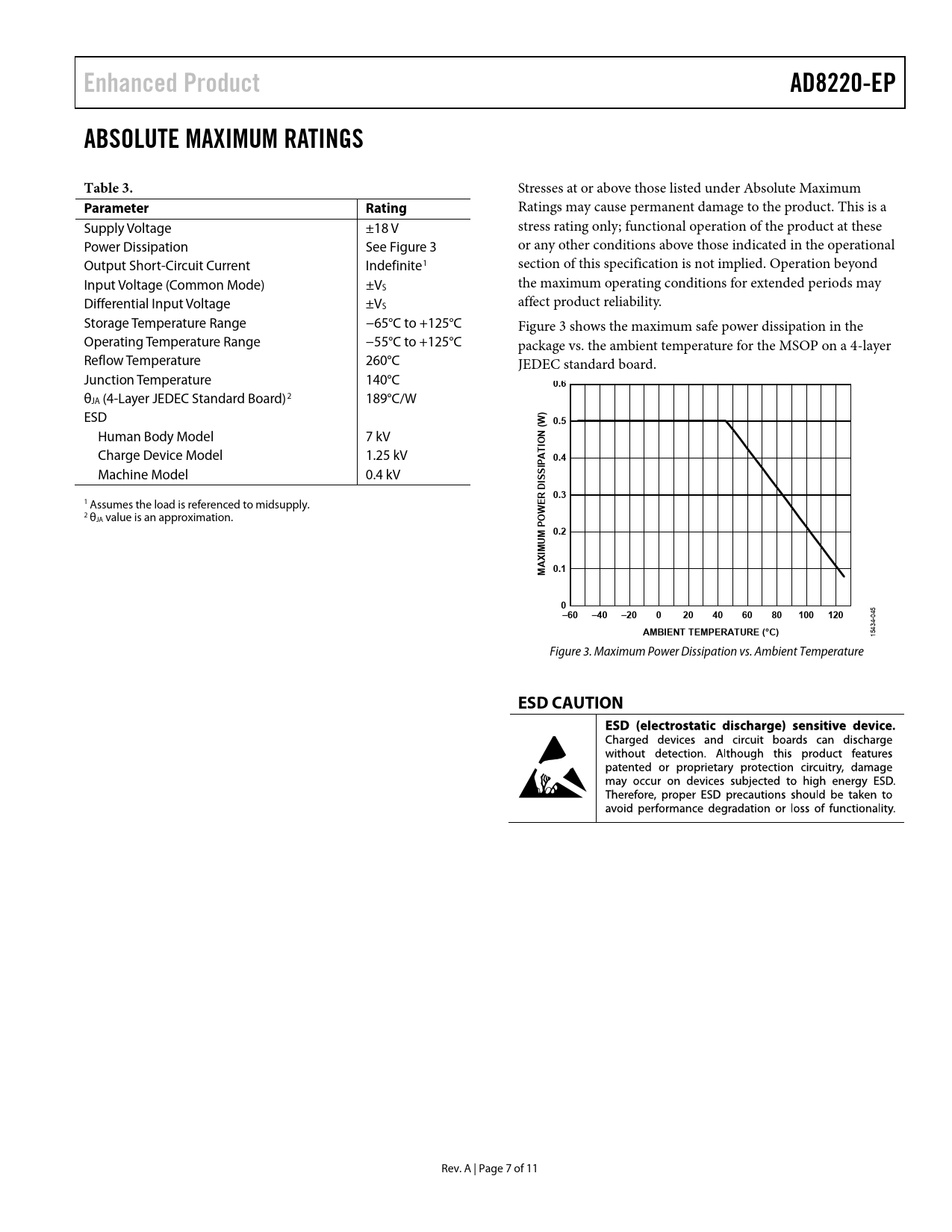

Enhanced Product AD8220-EP ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage ±18 V stress rating only; functional operation of the product at these Power Dissipation See Figure 3 or any other conditions above those indicated in the operational Output Short-Circuit Current Indefinite1 section of this specification is not implied. Operation beyond Input Voltage (Common Mode) ±VS the maximum operating conditions for extended periods may Differential Input Voltage ±VS affect product reliability. Storage Temperature Range −65°C to +125°C Figure 3 shows the maximum safe power dissipation in the Operating Temperature Range −55°C to +125°C package vs. the ambient temperature for the MSOP on a 4-layer Reflow Temperature 260°C JEDEC standard board. Junction Temperature 140°C
0.6
θJA (4-Layer JEDEC Standard Board)2 189°C/W ESD
) (W 0.5
Human Body Model 7 kV
N
Charge Device Model 1.25 kV
TIO PA 0.4
Machine Model 0.4 kV
ISSI D 0.3
1 Assumes the load is referenced to midsupply.
ER W
2 θJA value is an approximation.
M PO 0.2 MU XI MA 0.1 0–60 –40 –20 0 20 40 60 80 100 120
045
AMBIENT TEMPERATURE (°C)
15434- Figure 3. Maximum Power Dissipation vs. Ambient Temperature
ESD CAUTION
Rev. A | Page 7 of 11 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
