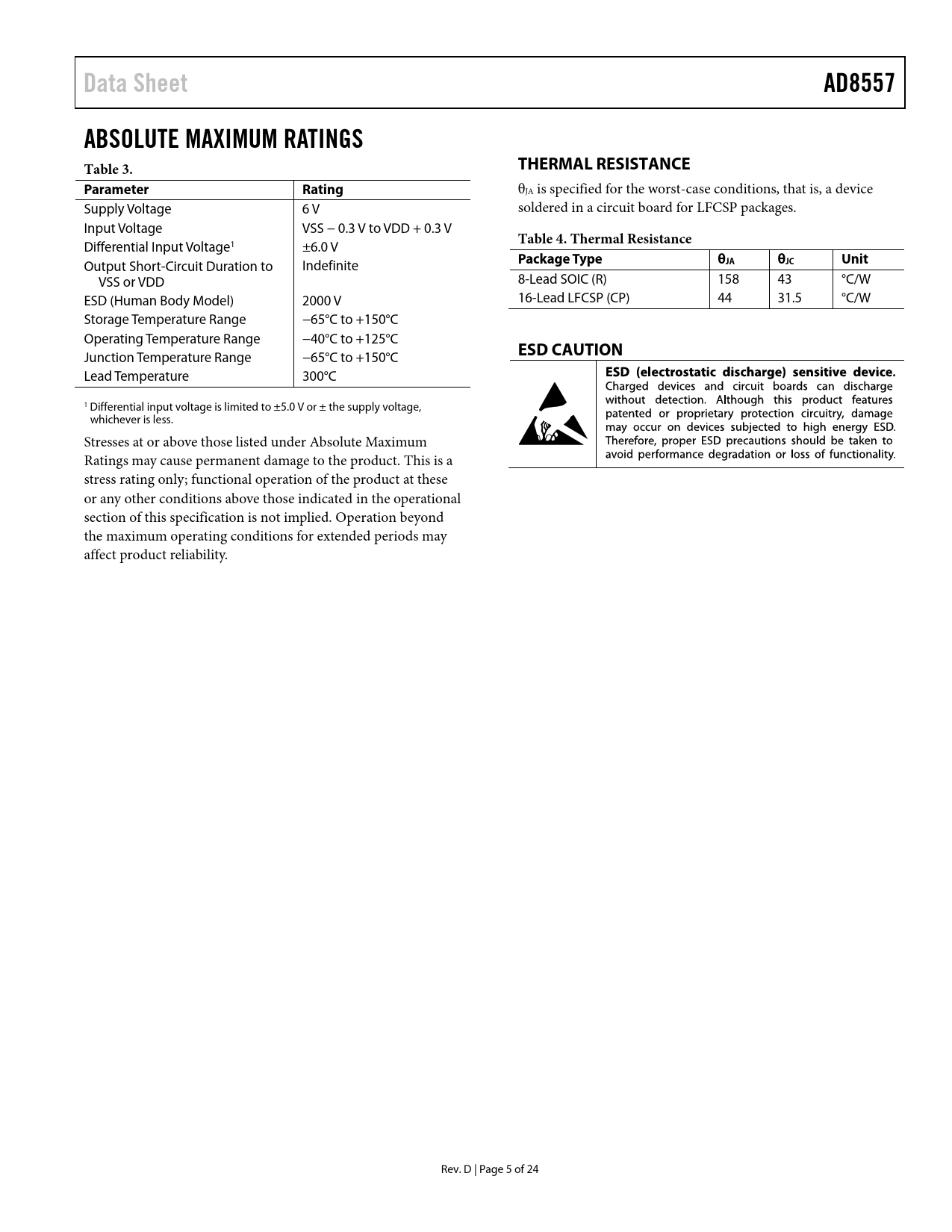

Data Sheet AD8557 ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 6 V soldered in a circuit board for LFCSP packages. Input Voltage VSS − 0.3 V to VDD + 0.3 V
Table 4. Thermal Resistance
Differential Input Voltage1 ±6.0 V
Package Type θ
Output Short-Circuit Duration to Indefinite
JA θJC Unit
VSS or VDD 8-Lead SOIC (R) 158 43 °C/W ESD (Human Body Model) 2000 V 16-Lead LFCSP (CP) 44 31.5 °C/W Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +125°C
ESD CAUTION
Junction Temperature Range −65°C to +150°C Lead Temperature 300°C 1 Differential input voltage is limited to ±5.0 V or ± the supply voltage, whichever is less. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. D | Page 5 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION GAIN VALUES OPEN WIRE FAULT DETECTION SHORTED WIRE FAULT DETECTION FLOATING VPOS, VNEG, OR VCLAMP FAULT DETECTION DEVICE PROGRAMMING Digital Interface Initial State Simulation Mode Programming Mode Read Mode Sense Current Programming Procedure Determining Optimal Gain and Offset Codes OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
