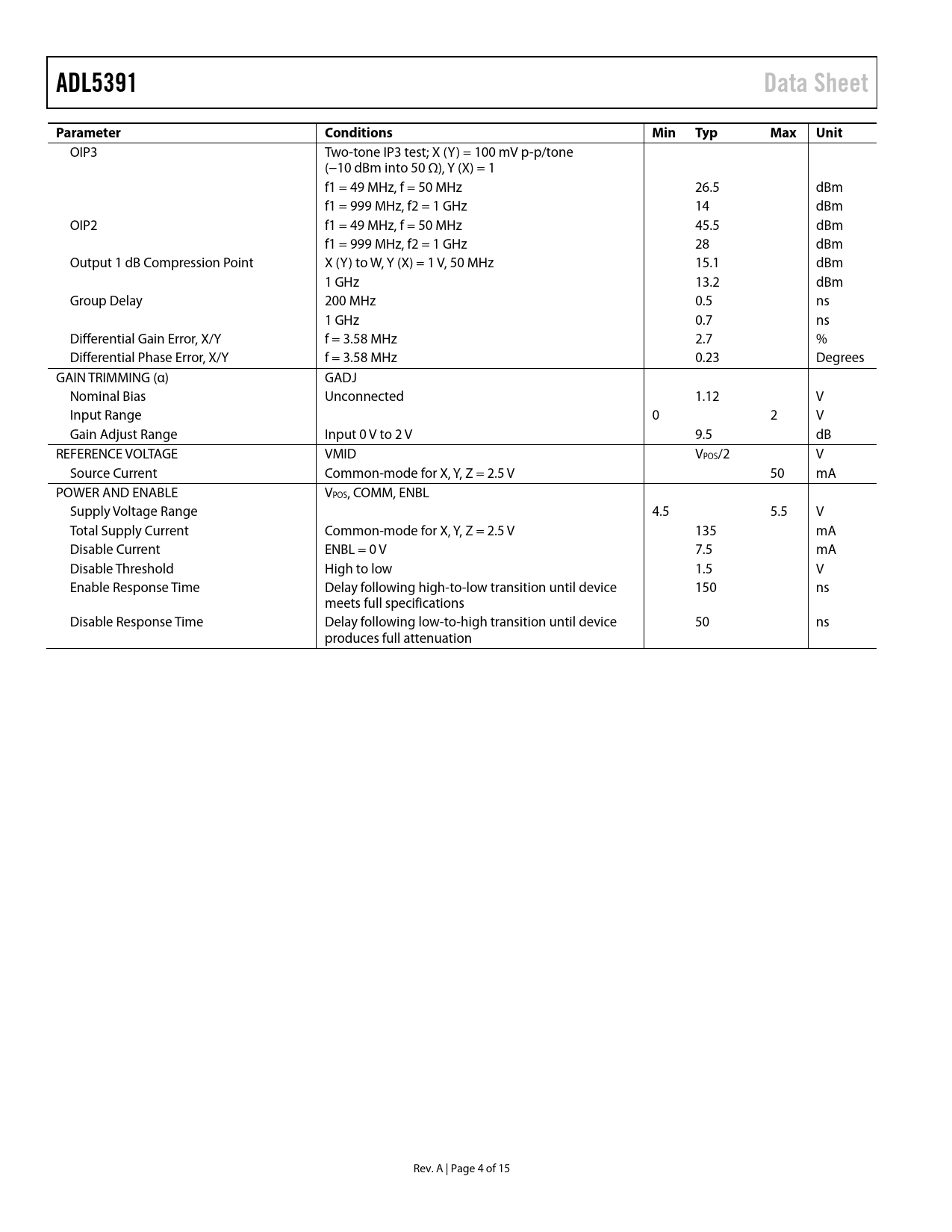

ADL5391 Data Sheet Parameter Conditions Min Typ Max Unit
OIP3 Two-tone IP3 test; X (Y) = 100 mV p-p/tone (−10 dBm into 50 Ω), Y (X) = 1 f1 = 49 MHz, f = 50 MHz 26.5 dBm f1 = 999 MHz, f2 = 1 GHz 14 dBm OIP2 f1 = 49 MHz, f = 50 MHz 45.5 dBm f1 = 999 MHz, f2 = 1 GHz 28 dBm Output 1 dB Compression Point X (Y) to W, Y (X) = 1 V, 50 MHz 15.1 dBm 1 GHz 13.2 dBm Group Delay 200 MHz 0.5 ns 1 GHz 0.7 ns Differential Gain Error, X/Y f = 3.58 MHz 2.7 % Differential Phase Error, X/Y f = 3.58 MHz 0.23 Degrees GAIN TRIMMING (α) GADJ Nominal Bias Unconnected 1.12 V Input Range 0 2 V Gain Adjust Range Input 0 V to 2 V 9.5 dB REFERENCE VOLTAGE VMID VPOS/2 V Source Current Common-mode for X, Y, Z = 2.5 V 50 mA POWER AND ENABLE VPOS, COMM, ENBL Supply Voltage Range 4.5 5.5 V Total Supply Current Common-mode for X, Y, Z = 2.5 V 135 mA Disable Current ENBL = 0 V 7.5 mA Disable Threshold High to low 1.5 V Enable Response Time Delay following high-to-low transition until device 150 ns meets full specifications Disable Response Time Delay following low-to-high transition until device 50 ns produces full attenuation Rev. A | Page 4 of 15 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Basic Theory Calibration Basic Connections Multiplier Connections Matching the Input/Output Wideband Voltage-Controlled Amplifier/Amplitude Modulator Squaring and Frequency Doubling Use as a Detector Evaluation Board Outline Dimensions Ordering Guide
