Datasheet ADL5391 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | DC to 2.0 GHz Multiplier |
| Páginas / Página | 15 / 5 — Data Sheet. ADL5391. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 524 Kb |
| Idioma del documento | Inglés |

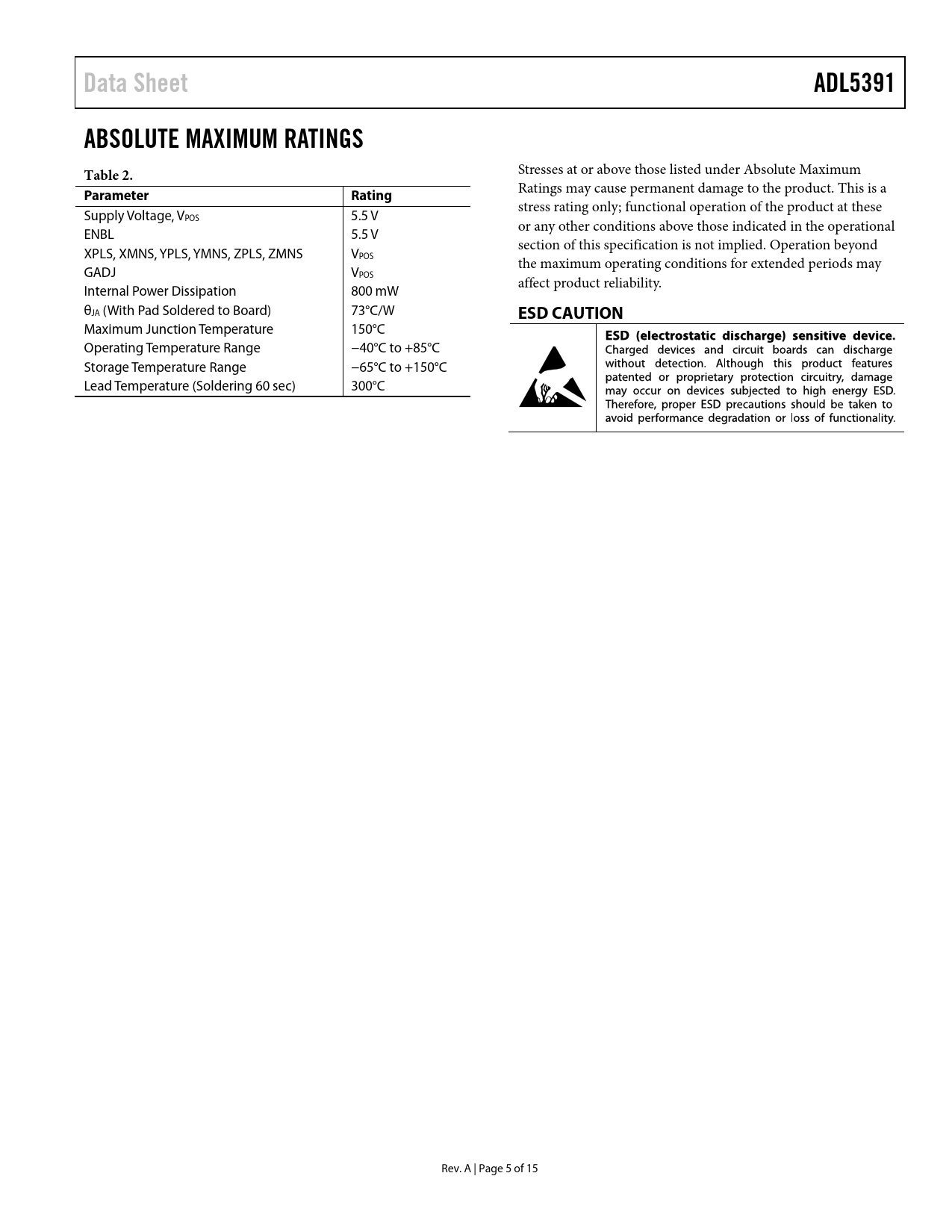

Data Sheet. ADL5391. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADL5391 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage, VPOS 5.5 V or any other conditions above those indicated in the operational ENBL 5.5 V section of this specification is not implied. Operation beyond XPLS, XMNS, YPLS, YMNS, ZPLS, ZMNS VPOS the maximum operating conditions for extended periods may GADJ VPOS affect product reliability. Internal Power Dissipation 800 mW θJA (With Pad Soldered to Board) 73°C/W
ESD CAUTION
Maximum Junction Temperature 150°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering 60 sec) 300°C Rev. A | Page 5 of 15 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Basic Theory Calibration Basic Connections Multiplier Connections Matching the Input/Output Wideband Voltage-Controlled Amplifier/Amplitude Modulator Squaring and Frequency Doubling Use as a Detector Evaluation Board Outline Dimensions Ordering Guide
