Datasheet LT3033 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 3A, 0.95V to 10V, Very Low Dropout Linear Regulator with Programmable Current Limit |
| Páginas / Página | 24 / 4 — ELECTRICAL CHARACTERISTICS Note 1:. Note 6:. Note 7:. Note 2:. Note 8:. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 3.7 Mb |
| Idioma del documento | Inglés |

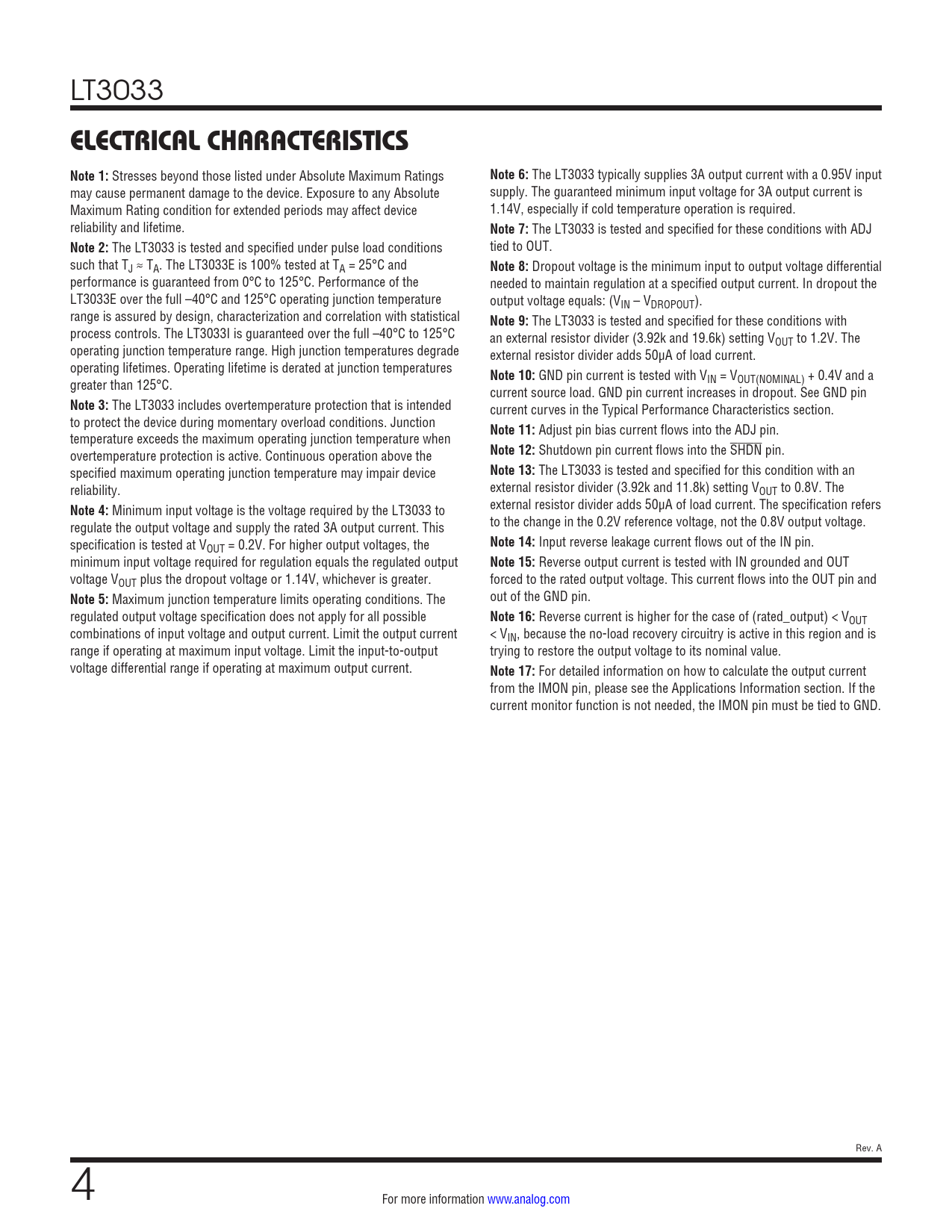

ELECTRICAL CHARACTERISTICS Note 1:. Note 6:. Note 7:. Note 2:. Note 8:. Note 9:. Note 10:. Note 3:. Note 11:. Note 12:. Note 13:. Note 4:
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5 link to page 13 LT3033
ELECTRICAL CHARACTERISTICS Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 6:
The LT3033 typically supplies 3A output current with a 0.95V input may cause permanent damage to the device. Exposure to any Absolute supply. The guaranteed minimum input voltage for 3A output current is Maximum Rating condition for extended periods may affect device 1.14V, especially if cold temperature operation is required. reliability and lifetime.
Note 7:
The LT3033 is tested and specified for these conditions with ADJ
Note 2:
The LT3033 is tested and specified under pulse load conditions tied to OUT. such that TJ ≈ TA. The LT3033E is 100% tested at TA = 25°C and
Note 8:
Dropout voltage is the minimum input to output voltage differential performance is guaranteed from 0°C to 125°C. Performance of the needed to maintain regulation at a specified output current. In dropout the LT3033E over the full –40°C and 125°C operating junction temperature output voltage equals: (VIN – VDROPOUT). range is assured by design, characterization and correlation with statistical
Note 9:
The LT3033 is tested and specified for these conditions with process controls. The LT3033I is guaranteed over the full –40°C to 125°C an external resistor divider (3.92k and 19.6k) setting V operating junction temperature range. High junction temperatures degrade OUT to 1.2V. The external resistor divider adds 50μA of load current. operating lifetimes. Operating lifetime is derated at junction temperatures
Note 10:
GND pin current is tested with V greater than 125°C. IN = VOUT(NOMINAL) + 0.4V and a current source load. GND pin current increases in dropout. See GND pin
Note 3:
The LT3033 includes overtemperature protection that is intended current curves in the Typical Performance Characteristics section. to protect the device during momentary overload conditions. Junction
Note 11:
Adjust pin bias current flows into the ADJ pin. temperature exceeds the maximum operating junction temperature when overtemperature protection is active. Continuous operation above the
Note 12:
Shutdown pin current flows into the SHDN pin. specified maximum operating junction temperature may impair device
Note 13:
The LT3033 is tested and specified for this condition with an reliability. external resistor divider (3.92k and 11.8k) setting VOUT to 0.8V. The
Note 4:
Minimum input voltage is the voltage required by the LT3033 to external resistor divider adds 50μA of load current. The specification refers regulate the output voltage and supply the rated 3A output current. This to the change in the 0.2V reference voltage, not the 0.8V output voltage. specification is tested at V
Note 14:
Input reverse leakage current flows out of the IN pin. OUT = 0.2V. For higher output voltages, the minimum input voltage required for regulation equals the regulated output
Note 15:
Reverse output current is tested with IN grounded and OUT voltage VOUT plus the dropout voltage or 1.14V, whichever is greater. forced to the rated output voltage. This current flows into the OUT pin and
Note 5:
Maximum junction temperature limits operating conditions. The out of the GND pin. regulated output voltage specification does not apply for all possible
Note 16:
Reverse current is higher for the case of (rated_output) < VOUT combinations of input voltage and output current. Limit the output current < VIN, because the no-load recovery circuitry is active in this region and is range if operating at maximum input voltage. Limit the input-to-output trying to restore the output voltage to its nominal value. voltage differential range if operating at maximum output current.
Note 17:
For detailed information on how to calculate the output current from the IMON pin, please see the Applications Information section. If the current monitor function is not needed, the IMON pin must be tied to GND. Rev. A 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
