Datasheet LT3033 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 3A, 0.95V to 10V, Very Low Dropout Linear Regulator with Programmable Current Limit |
| Páginas / Página | 24 / 10 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 3.7 Mb |
| Idioma del documento | Inglés |

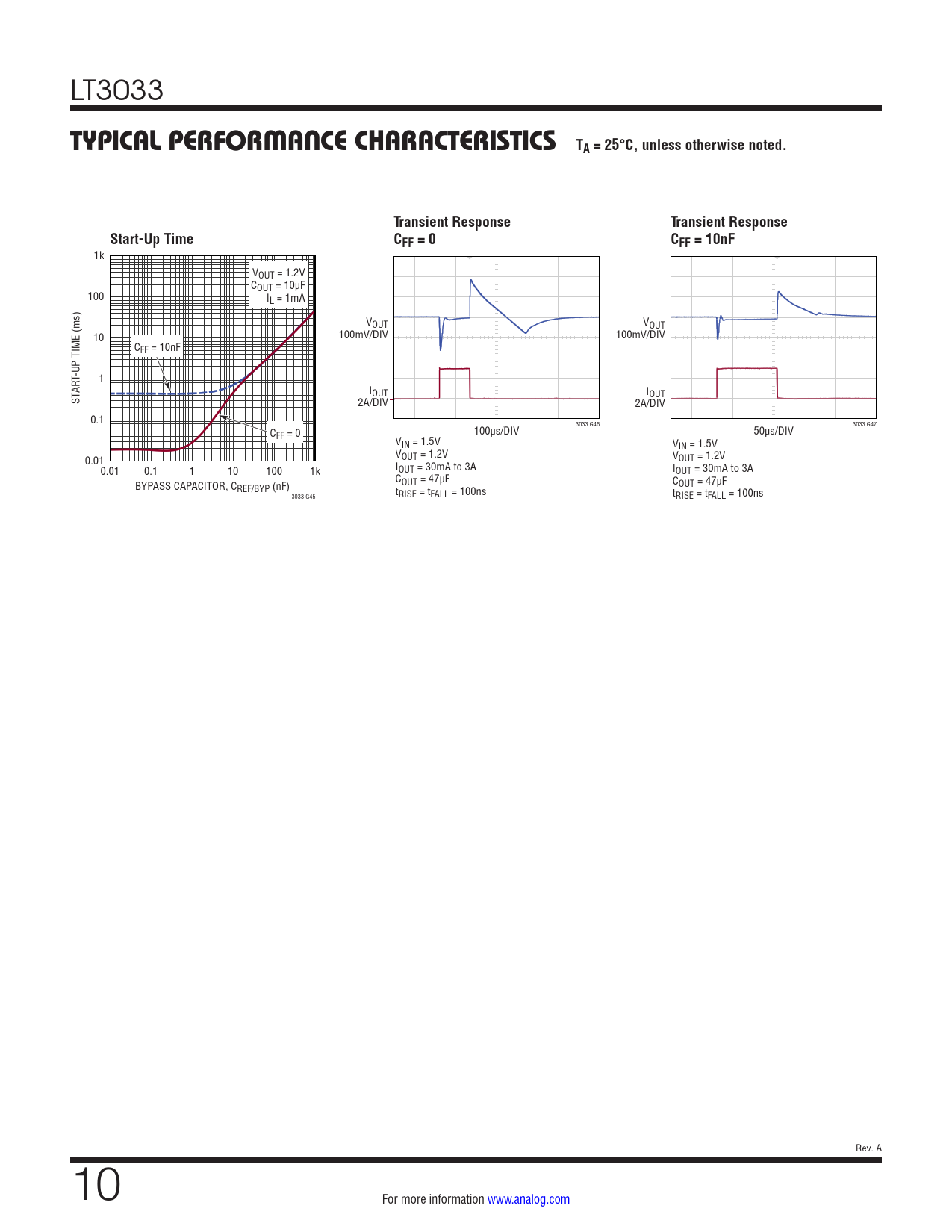

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Transient Response. Start-Up Time. CFF = 0. CFF = 10nF
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT3033
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Transient Response Transient Response Start-Up Time CFF = 0 CFF = 10nF
1k VOUT = 1.2V COUT = 10µF 100 IL = 1mA VOUT VOUT 100mV/DIV 100mV/DIV 10 CFF = 10nF T-UP TIME (ms) 1 AR IOUT IOUT ST 2A/DIV 2A/DIV 0.1 C 100µs/DIV 3033 G46 50µs/DIV 3033 G47 FF = 0 VIN = 1.5V VIN = 1.5V VOUT = 1.2V VOUT = 1.2V 0.01 I 0.01 0.1 1 10 100 1k OUT = 30mA to 3A IOUT = 30mA to 3A COUT = 47µF COUT = 47µF BYPASS CAPACITOR, CREF/BYP (nF) t 3033 G45 RISE = tFALL = 100ns tRISE = tFALL = 100ns Rev. A 10 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
