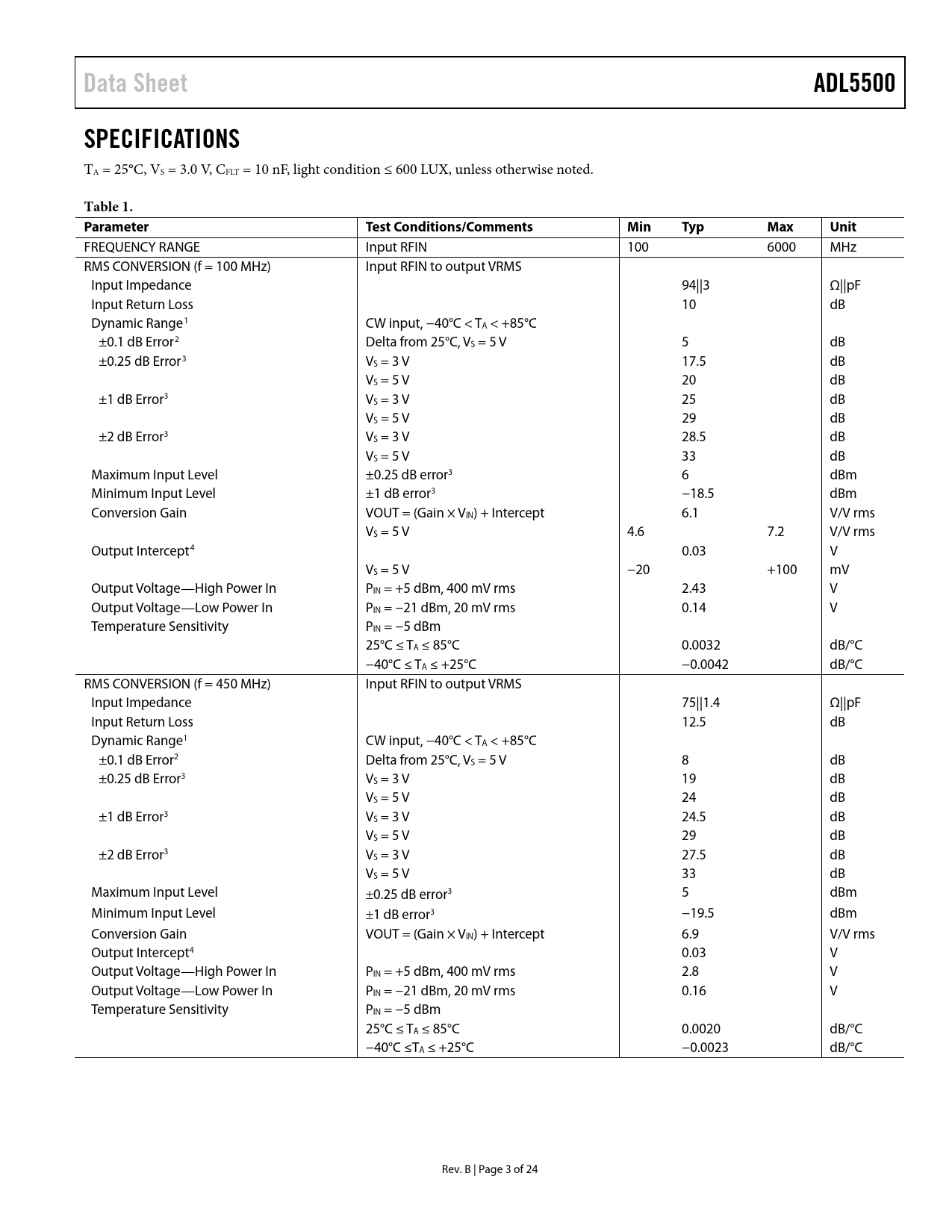

Data Sheet ADL5500 SPECIFICATIONS
TA = 25°C, VS = 3.0 V, CFLT = 10 nF, light condition ≤ 600 LUX, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE Input RFIN 100 6000 MHz RMS CONVERSION (f = 100 MHz) Input RFIN to output VRMS Input Impedance 94||3 Ω||pF Input Return Loss 10 dB Dynamic Range1 CW input, −40°C < TA < +85°C ±0.1 dB Error2 Delta from 25°C, VS = 5 V 5 dB ±0.25 dB Error3 VS = 3 V 17.5 dB VS = 5 V 20 dB ±1 dB Error3 VS = 3 V 25 dB VS = 5 V 29 dB ±2 dB Error3 VS = 3 V 28.5 dB VS = 5 V 33 dB Maximum Input Level ±0.25 dB error3 6 dBm Minimum Input Level ±1 dB error3 −18.5 dBm Conversion Gain VOUT = (Gain × VIN) + Intercept 6.1 V/V rms VS = 5 V 4.6 7.2 V/V rms Output Intercept4 0.03 V VS = 5 V −20 +100 mV Output Voltage—High Power In PIN = +5 dBm, 400 mV rms 2.43 V Output Voltage—Low Power In PIN = −21 dBm, 20 mV rms 0.14 V Temperature Sensitivity PIN = −5 dBm 25°C ≤ TA ≤ 85°C 0.0032 dB/°C −40°C ≤ TA ≤ +25°C −0.0042 dB/°C RMS CONVERSION (f = 450 MHz) Input RFIN to output VRMS Input Impedance 75||1.4 Ω||pF Input Return Loss 12.5 dB Dynamic Range1 CW input, −40°C < TA < +85°C ±0.1 dB Error2 Delta from 25°C, VS = 5 V 8 dB ±0.25 dB Error3 VS = 3 V 19 dB VS = 5 V 24 dB ±1 dB Error3 VS = 3 V 24.5 dB VS = 5 V 29 dB ±2 dB Error3 VS = 3 V 27.5 dB VS = 5 V 33 dB Maximum Input Level ±0.25 dB error3 5 dBm Minimum Input Level ±1 dB error3 −19.5 dBm Conversion Gain VOUT = (Gain × VIN) + Intercept 6.9 V/V rms Output Intercept4 0.03 V Output Voltage—High Power In PIN = +5 dBm, 400 mV rms 2.8 V Output Voltage—Low Power In PIN = −21 dBm, 20 mV rms 0.16 V Temperature Sensitivity PIN = −5 dBm 25°C ≤ TA ≤ 85°C 0.0020 dB/°C −40°C ≤TA ≤ +25°C −0.0023 dB/°C Rev. B | Page 3 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION FILTERING APPLICATIONS INFORMATION BASIC CONNECTIONS OUTPUT SWING LINEARITY INPUT COUPLING USING A SERIES RESISTOR MULTIPLE RF INPUTS SELECTING THE OUTPUT LOW-PASS FILTER NETWORK POWER CONSUMPTION AND POWER-ON/-OFF RESPONSE OUTPUT DRIVE CAPABILITY AND BUFFERING VRMS OUTPUT OFFSET DEVICE CALIBRATION AND ERROR CALCULATION CALIBRATION FOR IMPROVED ACCURACY DRIFT OVER A REDUCED TEMPERATURE RANGE OPERATION ABOVE 4.0 GHz DEVICE HANDLING EVALUATION BOARD Land Pattern and Soldering Information Junction-to-Board Thermal Impedance OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADL5500 SPECIFICATIONS
TA = 25°C, VS = 3.0 V, CFLT = 10 nF, light condition ≤ 600 LUX, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE Input RFIN 100 6000 MHz RMS CONVERSION (f = 100 MHz) Input RFIN to output VRMS Input Impedance 94||3 Ω||pF Input Return Loss 10 dB Dynamic Range1 CW input, −40°C < TA < +85°C ±0.1 dB Error2 Delta from 25°C, VS = 5 V 5 dB ±0.25 dB Error3 VS = 3 V 17.5 dB VS = 5 V 20 dB ±1 dB Error3 VS = 3 V 25 dB VS = 5 V 29 dB ±2 dB Error3 VS = 3 V 28.5 dB VS = 5 V 33 dB Maximum Input Level ±0.25 dB error3 6 dBm Minimum Input Level ±1 dB error3 −18.5 dBm Conversion Gain VOUT = (Gain × VIN) + Intercept 6.1 V/V rms VS = 5 V 4.6 7.2 V/V rms Output Intercept4 0.03 V VS = 5 V −20 +100 mV Output Voltage—High Power In PIN = +5 dBm, 400 mV rms 2.43 V Output Voltage—Low Power In PIN = −21 dBm, 20 mV rms 0.14 V Temperature Sensitivity PIN = −5 dBm 25°C ≤ TA ≤ 85°C 0.0032 dB/°C −40°C ≤ TA ≤ +25°C −0.0042 dB/°C RMS CONVERSION (f = 450 MHz) Input RFIN to output VRMS Input Impedance 75||1.4 Ω||pF Input Return Loss 12.5 dB Dynamic Range1 CW input, −40°C < TA < +85°C ±0.1 dB Error2 Delta from 25°C, VS = 5 V 8 dB ±0.25 dB Error3 VS = 3 V 19 dB VS = 5 V 24 dB ±1 dB Error3 VS = 3 V 24.5 dB VS = 5 V 29 dB ±2 dB Error3 VS = 3 V 27.5 dB VS = 5 V 33 dB Maximum Input Level ±0.25 dB error3 5 dBm Minimum Input Level ±1 dB error3 −19.5 dBm Conversion Gain VOUT = (Gain × VIN) + Intercept 6.9 V/V rms Output Intercept4 0.03 V Output Voltage—High Power In PIN = +5 dBm, 400 mV rms 2.8 V Output Voltage—Low Power In PIN = −21 dBm, 20 mV rms 0.16 V Temperature Sensitivity PIN = −5 dBm 25°C ≤ TA ≤ 85°C 0.0020 dB/°C −40°C ≤TA ≤ +25°C −0.0023 dB/°C Rev. B | Page 3 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION FILTERING APPLICATIONS INFORMATION BASIC CONNECTIONS OUTPUT SWING LINEARITY INPUT COUPLING USING A SERIES RESISTOR MULTIPLE RF INPUTS SELECTING THE OUTPUT LOW-PASS FILTER NETWORK POWER CONSUMPTION AND POWER-ON/-OFF RESPONSE OUTPUT DRIVE CAPABILITY AND BUFFERING VRMS OUTPUT OFFSET DEVICE CALIBRATION AND ERROR CALCULATION CALIBRATION FOR IMPROVED ACCURACY DRIFT OVER A REDUCED TEMPERATURE RANGE OPERATION ABOVE 4.0 GHz DEVICE HANDLING EVALUATION BOARD Land Pattern and Soldering Information Junction-to-Board Thermal Impedance OUTLINE DIMENSIONS ORDERING GUIDE
