HMC1020LP4E. RMS POWER DETECTOR. SINGLE-ENDED, DC - 3.9 GHz. Electrical Specifications III. Single-Ended Input Configuration
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC1020LP4E
v02.0511

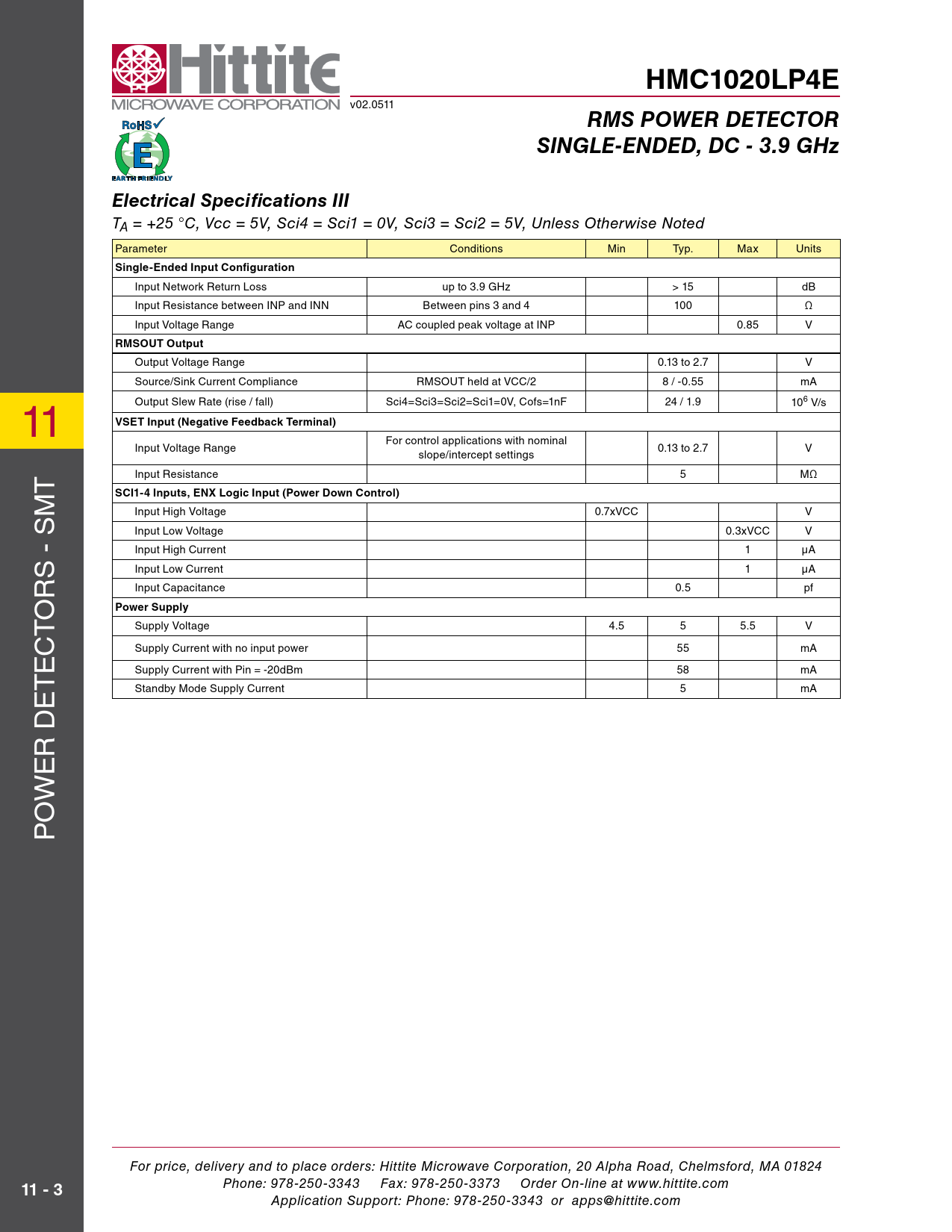

RMS POWER DETECTOR SINGLE-ENDED, DC - 3.9 GHz Electrical Specifications III
TA = +25 °C, Vcc = 5V, Sci4 = Sci1 = 0V, Sci3 = Sci2 = 5V, Unless Otherwise Noted Parameter conditions Min typ. Max Units
Single-Ended Input Configuration
Input Network return Loss up to 3.9 GHz > 15 dB Input resistance between INP and INN Between pins 3 and 4 100 Ω Input Voltage range Ac coupled peak voltage at INP 0.85 V
RMSOUT Output
output Voltage range 0.13 to 2.7 V source/sink current compliance rMsoUt held at Vcc/2 8 / -0.55 mA 11 Output Slew Rate (rise / fall) sci4=sci3=sci2=sci1=0V, cofs=1nF 24 / 1.9 106 V/s
VSET Input (Negative Feedback Terminal)
For control applications with nominal Input Voltage range 0.13 to 2.7 V slope/intercept settings t Input resistance 5 MΩ M
SCI1-4 Inputs, ENX Logic Input (Power Down Control)
Input High Voltage 0.7xVcc V s Input Low Voltage 0.3xVcc V - Input High current 1 μA Input Low current 1 μA rs Input capacitance 0.5 pf o
Power Supply
t supply Voltage 4.5 5 5.5 V c supply current with no input power 55 mA e t supply current with Pin = -20dBm 58 mA e standby Mode supply current 5 mA D r e w o P For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com
11 - 3
