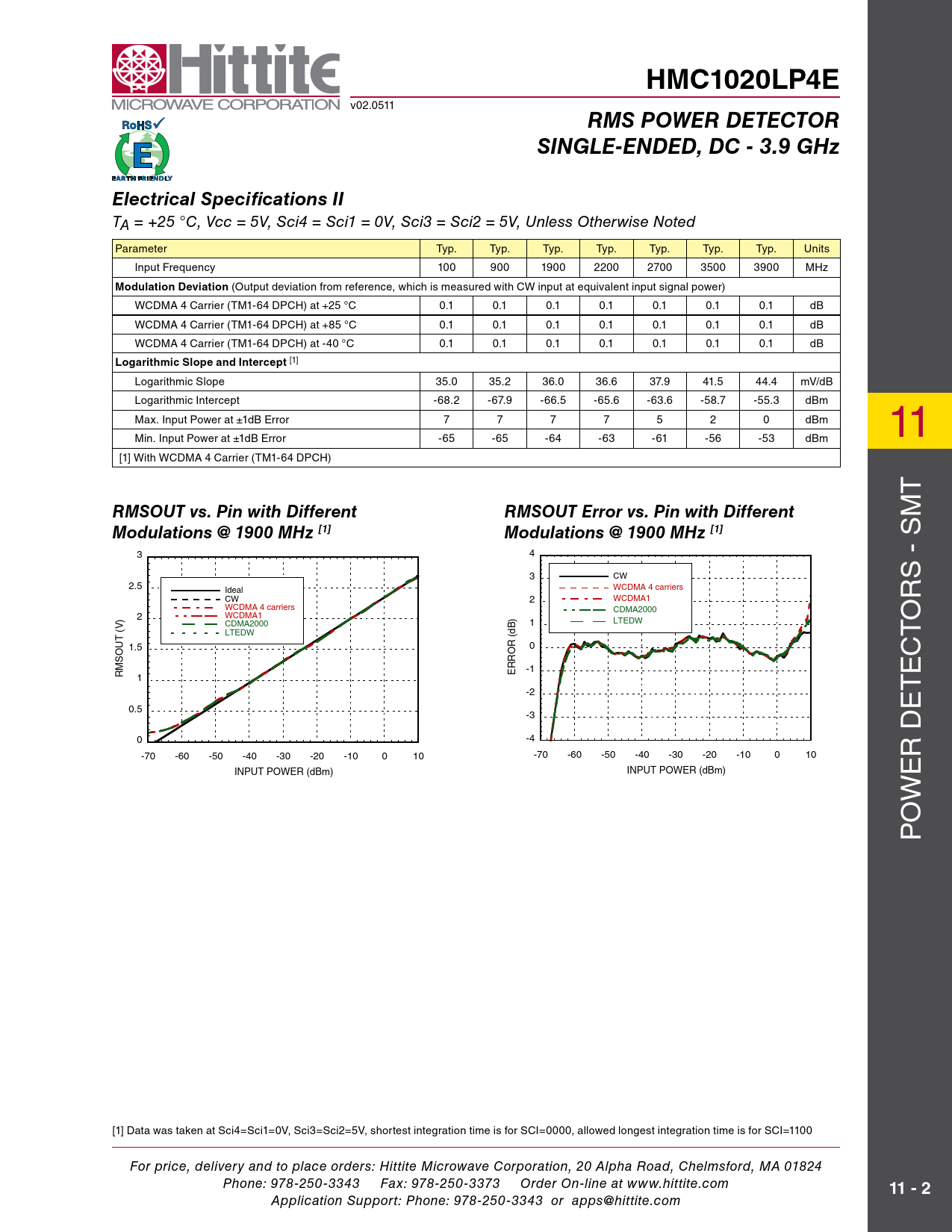

HMC1020LP4E. RMS POWER DETECTOR. SINGLE-ENDED, DC - 3.9 GHz. Electrical Specifications II. Modulation Deviation
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC1020LP4E
v02.0511
RMS POWER DETECTOR SINGLE-ENDED, DC - 3.9 GHz Electrical Specifications II
TA = +25 °C, Vcc = 5V, Sci4 = Sci1 = 0V, Sci3 = Sci2 = 5V, Unless Otherwise Noted Parameter typ. typ. typ. typ. typ. typ. typ. Units Input Frequency 100 900 1900 2200 2700 3500 3900 MHz
Modulation Deviation
(Output deviation from reference, which is measured with CW input at equivalent input signal power) WCDMA 4 Carrier (TM1-64 DPCH) at +25 °C 0.1 0.1 0.1 0.1 0.1 0.1 0.1 dB WCDMA 4 Carrier (TM1-64 DPCH) at +85 °C 0.1 0.1 0.1 0.1 0.1 0.1 0.1 dB WCDMA 4 Carrier (TM1-64 DPCH) at -40 °C 0.1 0.1 0.1 0.1 0.1 0.1 0.1 dB
Logarithmic Slope and Intercept
[1] Logarithmic slope 35.0 35.2 36.0 36.6 37.9 41.5 44.4 mV/dB Logarithmic Intercept -68.2 -67.9 -66.5 -65.6 -63.6 -58.7 -55.3 dBm Max. Input Power at ±1dB error 7 7 7 7 5 2 0 dBm Min. Input Power at ±1dB error -65 -65 -64 -63 -61 -56 -53 dBm 11 [1] With WCDMA 4 Carrier (TM1-64 DPCH) t
RMSOUT vs. Pin with Different RMSOUT Error vs. Pin with Different
M
Modulations @ 1900 MHz [1] Modulations @ 1900 MHz [1]
s 3 4 - 3 CW 2.5 Ideal WCDMA 4 carriers CW 2 WCDMA1 rs WCDMA 4 carriers CDMA2000 2 WCDMA1 1 LTEDW o CDMA2000 LTEDW t 1.5 0 c RMSOUT (V) -1 ERROR (dB) e 1 -2 t 0.5 e -3 0 -4 D -70 -60 -50 -40 -30 -20 -10 0 10 -70 -60 -50 -40 -30 -20 -10 0 10 r INPUT POWER (dBm) INPUT POWER (dBm) e w o P [1] Data was taken at sci4=sci1=0V, sci3=sci2=5V, shortest integration time is for scI=0000, allowed longest integration time is for scI=1100 For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com
11 - 2
