Datasheet ADuM6010 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | Integrated DC-to-DC Converter |
| Páginas / Página | 16 / 8 — ADuM6010. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 13. Parameter. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 438 Kb |
| Idioma del documento | Inglés |

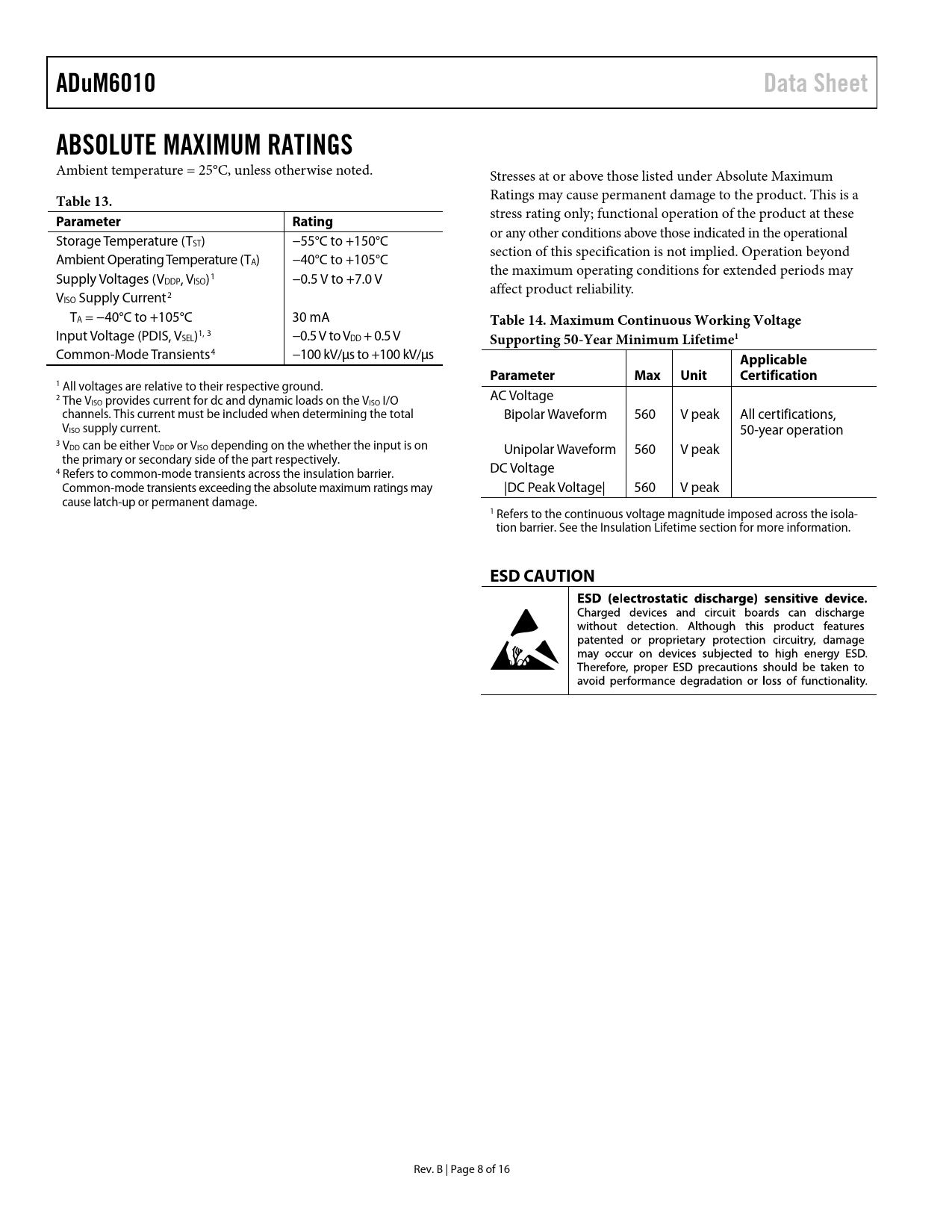

ADuM6010. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 13. Parameter. Rating. Table 14. Maximum Continuous Working Voltage
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 13
ADuM6010 Data Sheet ABSOLUTE MAXIMUM RATINGS
Ambient temperature = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 13.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational Storage Temperature (TST) −55°C to +150°C section of this specification is not implied. Operation beyond Ambient Operating Temperature (TA) −40°C to +105°C the maximum operating conditions for extended periods may Supply Voltages (VDDP, VISO)1 −0.5 V to +7.0 V affect product reliability. VISO Supply Current2 TA = −40°C to +105°C 30 mA
Table 14. Maximum Continuous Working Voltage
Input Voltage (PDIS, VSEL)1, 3 −0.5 V to VDD + 0.5 V
Supporting 50-Year Minimum Lifetime1
Common-Mode Transients4 −100 kV/µs to +100 kV/µs
Applicable Parameter Max Unit Certification
1 All voltages are relative to their respective ground. 2 The V AC Voltage ISO provides current for dc and dynamic loads on the VISO I/O channels. This current must be included when determining the total Bipolar Waveform 560 V peak All certifications, VISO supply current. 50-year operation 3 VDD can be either VDDP or VISO depending on the whether the input is on Unipolar Waveform 560 V peak the primary or secondary side of the part respectively. 4 Refers to common-mode transients across the insulation barrier. DC Voltage Common-mode transients exceeding the absolute maximum ratings may |DC Peak Voltage| 560 V peak cause latch-up or permanent damage. 1 Refers to the continuous voltage magnitude imposed across the isola- tion barrier. See the Insulation Lifetime section for more information.
